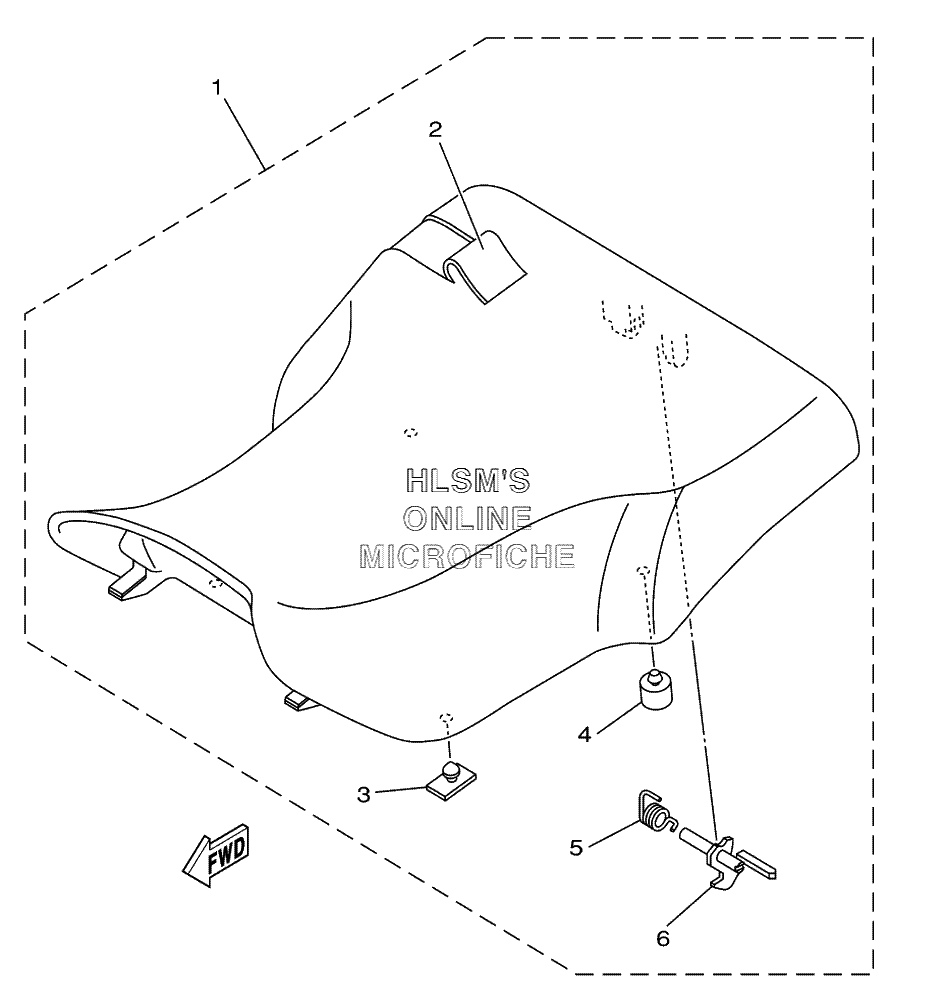

SEAT для Yamaha KODIAK 4X4 HUNTER YFM400FAHP (5GHR) - 2002 года выпуска
-
№АртикулНазвание
-
15GH-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
25GH-24731-00-00 ...COVER, SEAT...COVER, SEAT
-
3509-24724-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
4371-27114-00-00 ......STOPPER, MAIN STAND......STOPPER, MAIN STAND
-
590508-23567-00 ......SPRING, TORSION......SPRING, TORSION
-
65GH-24776-00-00 ...LEVER, SEAT...LEVER, SEAT
