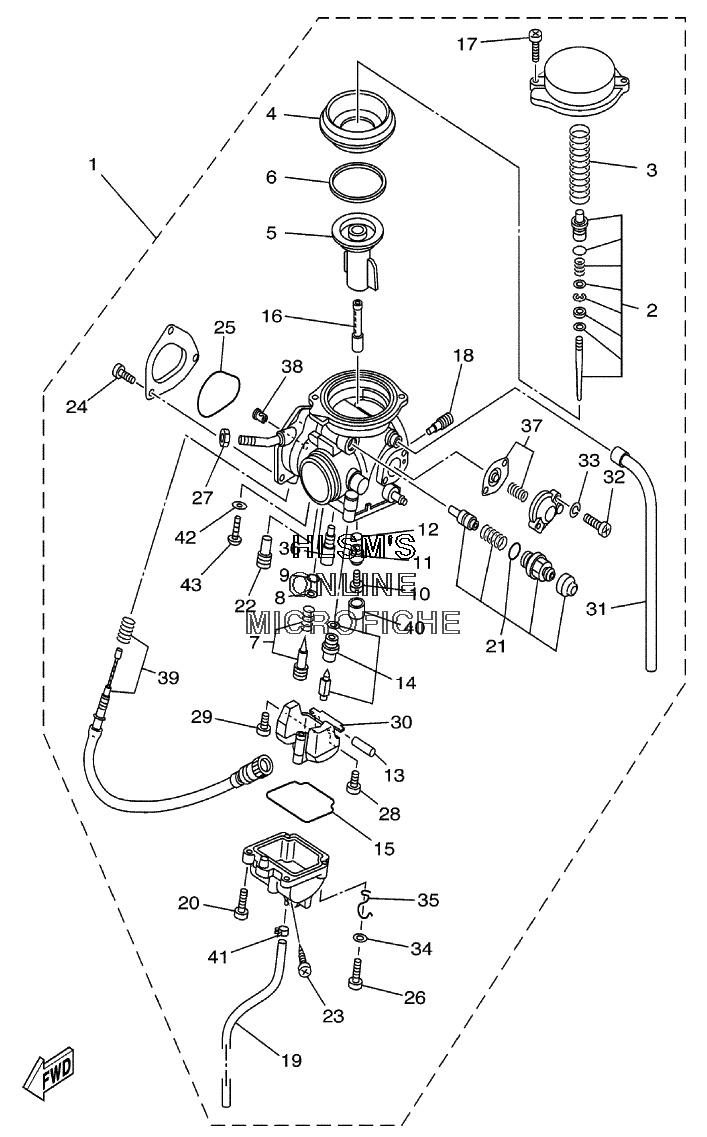

CARBURETOR для Yamaha KODIAK 2WD YFM400AN (5HA7) - 2001 года выпуска
-
№АртикулНазвание
-
15GH-14101-11-00 CARBURETOR ASSY.CARBURETOR ASSY.
-
25GH-1490J-20-00 ...NEEDLE SET...NEEDLE SET
-
35DM-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
45GH-14940-10-00 ......DIAPHRAGM ASSY.......DIAPHRAGM ASSY.
-
55DM-14112-00-00 ...VALVE, THROTTLE...VALVE, THROTTLE
-
65GH-14918-10-00 ...RING...RING
-
75GH-14105-10-00 ...PILOT SCREW SET (WHITE SPRING)...PILOT SCREW SET (WHITE SPRING)
-
83H1-14962-00-00 ......WASHER......WASHER
-
93H1-14147-00-00 ......O-RING......O-RING
-
103G2-14231-26-00 ...JET, MAIN (#130)...JET, MAIN (#130)
-
115GH-14261-00-00 ...HOLDER...HOLDER
-
12583-14561-00-00 ...O-RING...O-RING
-
13127-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
144SV-14107-20-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
155DM-14561-00-00 ......O-RING......O-RING
-
165DM-14141-40-00 ......NOZZLE, MAIN......NOZZLE, MAIN
-
174KM-14216-00-00 ......SCREW......SCREW
-
181HX-14231-16-00 ......JET, MAIN (# 80)......JET, MAIN (# 80)
-
194KB-14193-20-00 ......PIPE......PIPE
-
2097890-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
215GH-1410A-00-00 ......STARTER SET......STARTER SET
-
223G2-14231-14-00 ...JET,PILOT AIR(70)...JET,PILOT AIR(70)
-
2312R-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
2498507-04006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
254WV-14147-10-00 ...O-RING...O-RING
-
2698507-04016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
27522-14161-00-00 ......NUT, CABLE ADJUSTING......NUT, CABLE ADJUSTING
-
2898507-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
291FN-14565-00-00 ...SCREW...SCREW
-
305DM-14985-00-00 ......FLOAT......FLOAT
-
315GH-14197-00-00 ...PIPE...PIPE
-
3298501-04014-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
3392902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
3492907-04600-00 ...WASHER...WASHER
-
355GH-14937-00-00 ...CLIP...CLIP
-
364KM-14142-17-00 ...JET, PILOT ( 17.5)...JET, PILOT ( 17.5)
-
375EL-1490H-00-00 ...DIAPHRAGM SET...DIAPHRAGM SET
-
381UY-14155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
395GH-14103-01-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
405GH-14918-00-00 ......RING......RING
-
4190467-06194-00 ......CLIP......CLIP
-
42256-14956-01-00 ...WASHER...WASHER
-
433DM-14216-00-00 ...SCREW...SCREW
