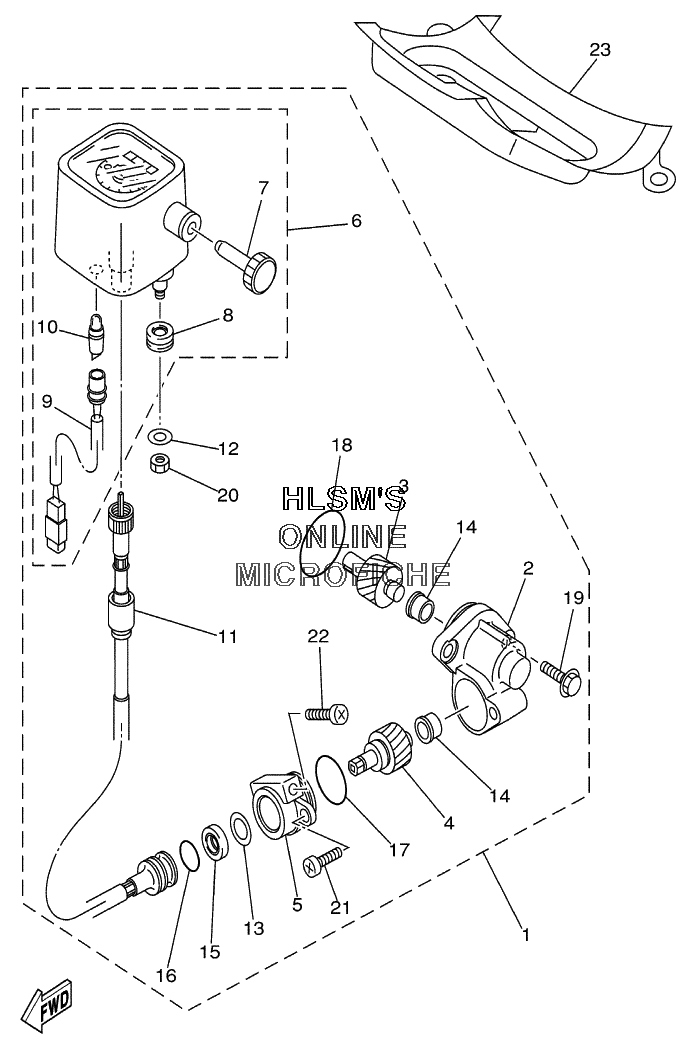

SPEEDOMETER - TACH для Yamaha KODIAK 2WD YFM400AN (5HA7) - 2001 года выпуска
-
№АртикулНазвание
-
15GH-W0081-00-00 SPEEDOMETER KITSPEEDOMETER KIT
-
24WV-17811-00-00 ...HOUSING, TACHOMETER GEAR...HOUSING, TACHOMETER GEAR
-
34WV-17831-00-00 ...GEAR, DRIVE...GEAR, DRIVE
-
44WV-17841-00-00 ...GEAR, DRIVEN...GEAR, DRIVEN
-
559V-17811-00-00 ...HOUSING, TACHOMETER GEAR...HOUSING, TACHOMETER GEAR
-
65GH-83500-00-00 ...SPEEDOMETER ASSY...SPEEDOMETER ASSY
-
73GH-83578-00-00 ......KNOB, TRIP METER......KNOB, TRIP METER
-
83GH-83523-00-00 ......DAMPER......DAMPER
-
95GH-83520-00-00 ......SOCKET CORD ASSY......SOCKET CORD ASSY
-
105GH-83517-00-00 ......BULB (14V-3.4W)......BULB (14V-3.4W)
-
115GH-83550-00-00 ...SPEEDOMETER CABLE ASSY...SPEEDOMETER CABLE ASSY
-
1290201-05725-00 ...WASHER, PLATE...WASHER, PLATE
-
1390201-12M34-00 ...WASHER, PLATE...WASHER, PLATE
-
1490381-08002-00 ...BUSH, SOLID...BUSH, SOLID
-
1593102-08307-00 ...OIL SEAL...OIL SEAL
-
1693210-14104-00 ...O-RING...O-RING
-
1793210-24253-00 ...O-RING...O-RING
-
1893210-32172-00 ...O-RING...O-RING
-
1995027-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2095307-05600-00 ...NUT...NUT
-
2198507-06016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2298517-06030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
235HA-2837L-10-00 PANEL, CONSOLEPANEL, CONSOLE
