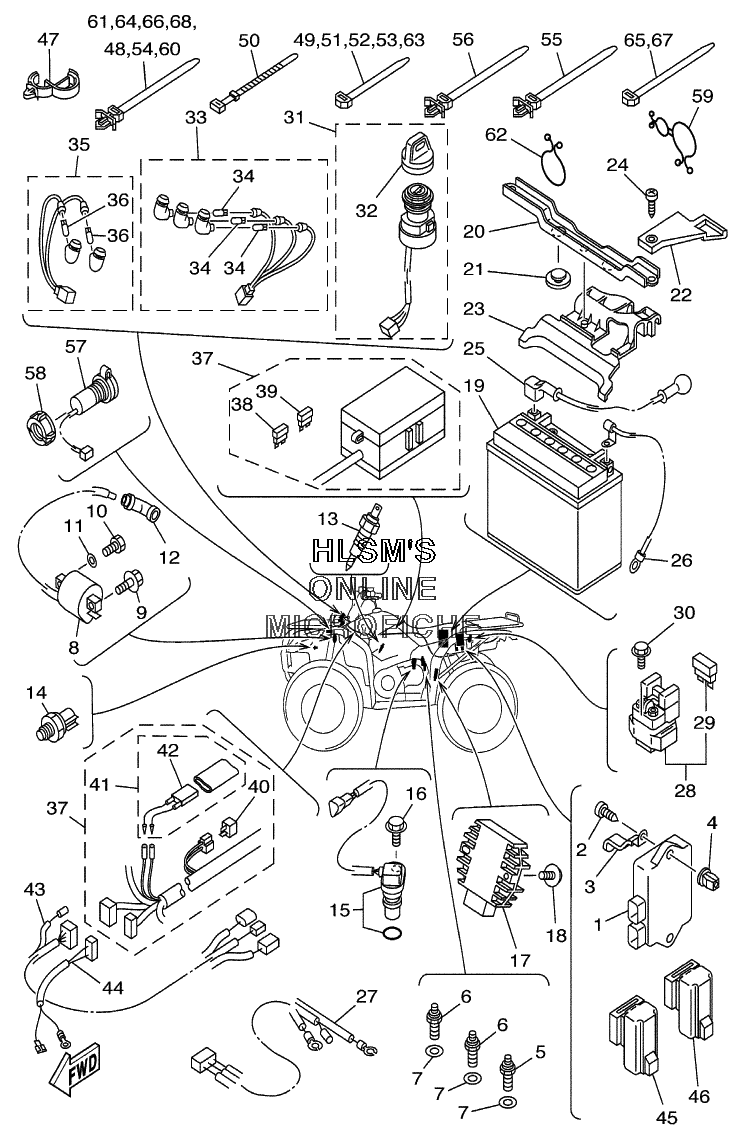

ELECTRICAL для Yamaha KODIAK 2WD YFM400AN (5HA7) - 2001 года выпуска
-
№АртикулНазвание
-
15GH-85540-10-00 C.D.IUNIT ASSY.C.D.IUNIT ASSY.
-
297707-60525-00 SCREW, TAPPINGSCREW, TAPPING
-
390462-06016-00 CLAMPCLAMP
-
490338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
53GB-82540-01-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
64KM-82540-00-00 REVERSE SWITCH ASSY.REVERSE SWITCH ASSY.
-
790430-10148-00 GASKETGASKET
-
83KJ-82310-10-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
990109-06723-00 BOLTBOLT
-
1097007-06020-00 BOLTBOLT
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
-
121UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
134BA-82560-00-00 THERMOSWITCH ASSY.THERMOSWITCH ASSY.
-
145GH-82560-00-00 THERMOSWITCH ASSY.THERMOSWITCH ASSY.
-
154XV-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
1690110-06001-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
175GT-81960-00-00 RECTIFIER & REGULATOR ASSY.RECTIFIER & REGULATOR ASSY.
-
1895807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
194SH-82100-21-00 BATTERY ASSY (YTX20L-BS)BATTERY ASSY (YTX20L-BS)
-
205GH-82128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
21371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
225GH-82119-00-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
235GH-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
2497707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
255GH-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
265GH-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
275GH-82541-00-00 WIRE, LEADWIRE, LEAD
-
284SV-81940-00-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
291AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
3095027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
314GB-82510-10-00 MAIN SWITCH ASSY.MAIN SWITCH ASSY.
-
323HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
335GH-83530-00-00 PILOT LIGHT ASSY.PILOT LIGHT ASSY.
-
345GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
-
355HA-83530-00-00 PILOT LIGHT ASSY.PILOT LIGHT ASSY.
-
365GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
-
375HA-82590-00-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
385JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
395JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
403WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
415GT-82180-00-00 ...CIRCUIT BREAKER ASSY....CIRCUIT BREAKER ASSY.
-
425GT-82560-00-00 ...THERMOSWITCH ASSY....THERMOSWITCH ASSY.
-
435HA-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
445GH-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
4529U-81950-93-00 RELAY ASSYRELAY ASSY
-
462NL-81950-92-00 RELAY ASSYRELAY ASSY
-
4790464-15195-00 CLAMPCLAMP
-
4890464-12089-00 CLAMPCLAMP
-
4990464-13073-00 CLAMPCLAMP
-
50437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
5190464-13073-00 CLAMPCLAMP
-
5290464-13073-00 CLAMPCLAMP
-
5390464-13073-00 CLAMPCLAMP
-
5490464-12089-00 CLAMPCLAMP
-
5590464-12036-00 CLAMPCLAMP
-
5690464-10112-00 CLAMPCLAMP
-
575GH-8254B-00-00 TERMINAL COMPTERMINAL COMP
-
585GH-82114-00-00 NUTNUT
-
5990464-25098-00 CLAMPCLAMP
-
6090464-12089-00 CLAMPCLAMP
-
6190464-12089-00 CLAMPCLAMP
-
6290465-10098-00 CLAMPCLAMP
-
6390464-13073-00 CLAMPCLAMP
-
6490464-12089-00 CLAMPCLAMP
-
6590464-15195-00 CLAMPCLAMP
-
6690464-12089-00 CLAMPCLAMP
-
6790464-15195-00 CLAMPCLAMP
-
6890464-12089-00 CLAMPCLAMP
-
6990890-56001-00 ATV KEY BLANK (TYPE-A) (NO PIC)ATV KEY BLANK (TYPE-A) (NO PIC)
-
7090890-56002-00 ATV KEY BLANK (TYPE-B) (NO PIC)ATV KEY BLANK (TYPE-B) (NO PIC)
