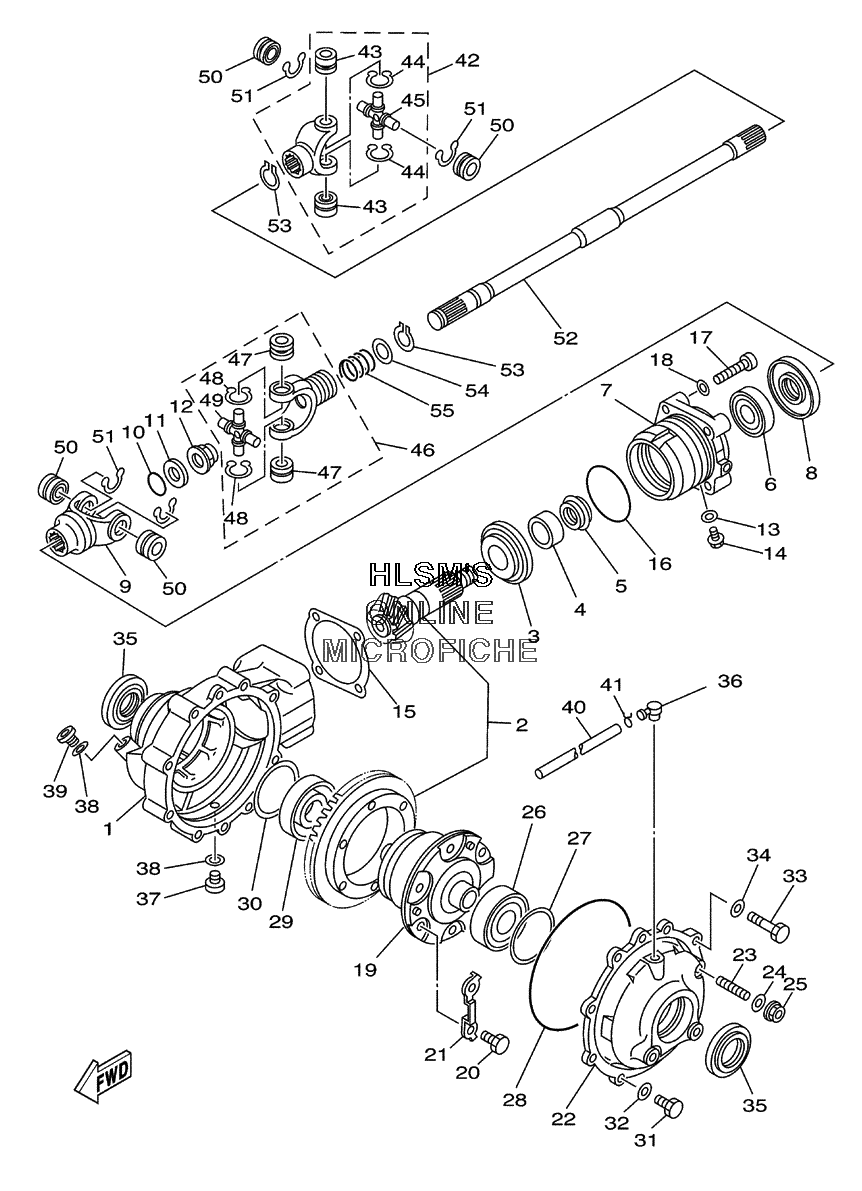

DIFFERENTIAL - FRONT для Yamaha TIMBERWOLF 4WD YFB250FWM (4KDL) - 2000 года выпуска
-
№АртикулНазвание
-
12HR-46161-00-00 HOUSING, SHAFT DRIVE 2HOUSING, SHAFT DRIVE 2
-
22HR-W4614-00-00 PINION DRIVE GEAR SETPINION DRIVE GEAR SET
-
393332-00066-00 BEARINGBEARING
-
490387-257R3-00 COLLARCOLLAR
-
52H7-17571-01-00 SPACER, EXPANSIONSPACER, EXPANSION
-
693332-00024-00 BEARINGBEARING
-
72HR-46144-00-00 HOUSING, PINION BEARINGHOUSING, PINION BEARING
-
893105-35028-00 OIL SEALOIL SEAL
-
92HR-46146-01-00 YOKE, JOINT 2YOKE, JOINT 2
-
1093210-14359-00 O-RINGO-RING
-
1190201-14633-00 WASHER, PLATEWASHER, PLATE
-
1290179-14541-00 NUTNUT
-
1390201-08087-00 WASHER, PLATEWASHER, PLATE
-
1495027-08012-00 BOLT, FLANGEBOLT, FLANGE
-
152HR-46127-00-25 SHIM, DRIVE PISTON (0.25T) (UR)SHIM, DRIVE PISTON (0.25T) (UR)
-
152HR-46127-00-30 SHIM, DRIVE PISTON (0.30T) (UR)SHIM, DRIVE PISTON (0.30T) (UR)
-
152HR-46127-00-35 SHIM, DRIVE PISTON (0.35T) (UR)SHIM, DRIVE PISTON (0.35T) (UR)
-
152HR-46127-00-40 SHIM, DRIVE PISTON (0.40T) (UR)SHIM, DRIVE PISTON (0.40T) (UR)
-
152HR-46127-00-45 SHIM, DRIVE PISTON (0.45T) (UR)SHIM, DRIVE PISTON (0.45T) (UR)
-
152HR-46127-00-50 SHIM, DRIVE PISTON (0.50T) (UR)SHIM, DRIVE PISTON (0.50T) (UR)
-
1693210-626A7-00 O-RINGO-RING
-
1797027-08045-00 BOLTBOLT
-
1892907-08600-00 WASHER, PLATEWASHER, PLATE
-
193HN-46470-04-00 LIMITED SLIP DIFF. ASSYLIMITED SLIP DIFF. ASSY
-
2090101-10666-00 BOLTBOLT
-
212HR-22156-00-00 WASHER, PLATEWASHER, PLATE
-
222HR-46162-00-00 HOUSING, BEARING 2HOUSING, BEARING 2
-
232HR-46156-00-00 STOPPER, RING GEARSTOPPER, RING GEAR
-
2490201-08087-00 WASHER, PLATEWASHER, PLATE
-
2595707-08500-00 NUT, FLANGENUT, FLANGE
-
2693306-20717-00 BEARINGBEARING
-
274H7-17537-00-20 SHIM, THRUST (0.20T) (UR)SHIM, THRUST (0.20T) (UR)
-
274H7-17537-00-30 SHIM, THRUST (0.30T) (UR)SHIM, THRUST (0.30T) (UR)
-
274H7-17537-00-40 SHIM, THRUST (0.40T) (UR)SHIM, THRUST (0.40T) (UR)
-
2893211-51749-00 O-RINGO-RING
-
2993306-20717-00 BEARINGBEARING
-
304H7-17537-00-20 SHIM, THRUST (0.20T) (UR)SHIM, THRUST (0.20T) (UR)
-
304H7-17537-00-30 SHIM, THRUST (0.30T) (UR)SHIM, THRUST (0.30T) (UR)
-
304H7-17537-00-40 SHIM, THRUST (0.40T)SHIM, THRUST (0.40T)
-
3197027-08025-00 BOLT (UR)BOLT (UR)
-
3292907-08600-00 WASHER, PLATEWASHER, PLATE
-
3397027-10045-00 BOLTBOLT
-
3492907-10600-00 WASHER, PLATEWASHER, PLATE
-
3593102-35380-00 OIL SEALOIL SEAL
-
362N4-15371-00-00 BREATHERBREATHER
-
3790340-14046-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
38214-11198-01-00 GASKETGASKET
-
3990340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
4090445-07665-00 HOSEHOSE
-
4190467-07029-00 CLIPCLIP
-
424KD-46107-00-00 CROSS JOINT COMP. 2CROSS JOINT COMP. 2
-
4393399-99926-00 ...BEARING...BEARING
-
4493440-20088-00 ...CIRCLIP...CIRCLIP
-
452HR-46187-00-00 ...SPIDER...SPIDER
-
463HN-46108-00-00 CROSS JOINT COMP. 3CROSS JOINT COMP. 3
-
4793399-99926-00 ...BEARING...BEARING
-
4893440-20088-00 ...CIRCLIP...CIRCLIP
-
492HR-46187-00-00 ...SPIDER...SPIDER
-
5093399-99926-00 BEARINGBEARING
-
5193440-20088-00 CIRCLIPCIRCLIP
-
524KD-46173-00-00 SHAFT, DRIVE 2SHAFT, DRIVE 2
-
5393410-22039-00 CIRCLIPCIRCLIP
-
5490201-225M9-00 WASHER, PLATEWASHER, PLATE
-
5590501-234F8-00 SPRING, COMPRESSIONSPRING, COMPRESSION
