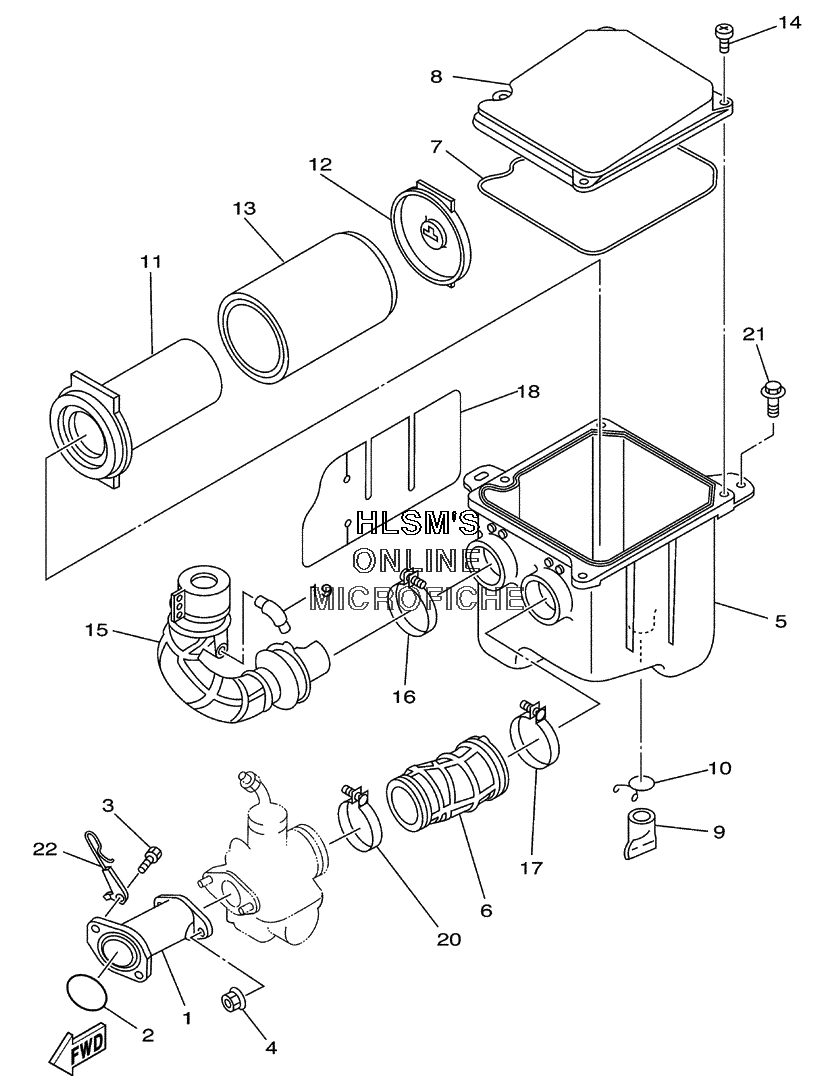

AIR CLEANER W/ INTAKE для Yamaha TIMBERWOLF 4WD YFB250FWM (4KDL) - 2000 года выпуска`
-
№АртикулНазвание
-
129U-13586-01-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-35537-00 O-RINGO-RING
-
391317-06020-00 BOLTBOLT
-
495707-06500-00 NUT, FLANGENUT, FLANGE
-
53GH-14411-01-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
64KD-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
75H0-14452-00-00 SEALSEAL
-
821V-14412-01-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
959V-14457-00-00 SEALSEAL
-
1090467-22080-00 CLIPCLIP
-
111YW-14458-00-00 GUIDEGUIDE
-
121UY-14468-00-00 PLATE,ELEMENT FITTINGPLATE,ELEMENT FITTING
-
131YW-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
1498507-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
154BD-14437-00-00 DUCTDUCT
-
1690460-58124-00 CLAMP, HOSECLAMP, HOSE
-
1790460-56105-00 CLAMP, HOSECLAMP, HOSE
-
184BD-1442F-00-00 PROTECTORPROTECTOR
-
1931A-14419-00-00 PIPEPIPE
-
2090450-45075-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2190119-06096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
224BD-2631F-00-00 GUIDEGUIDE
