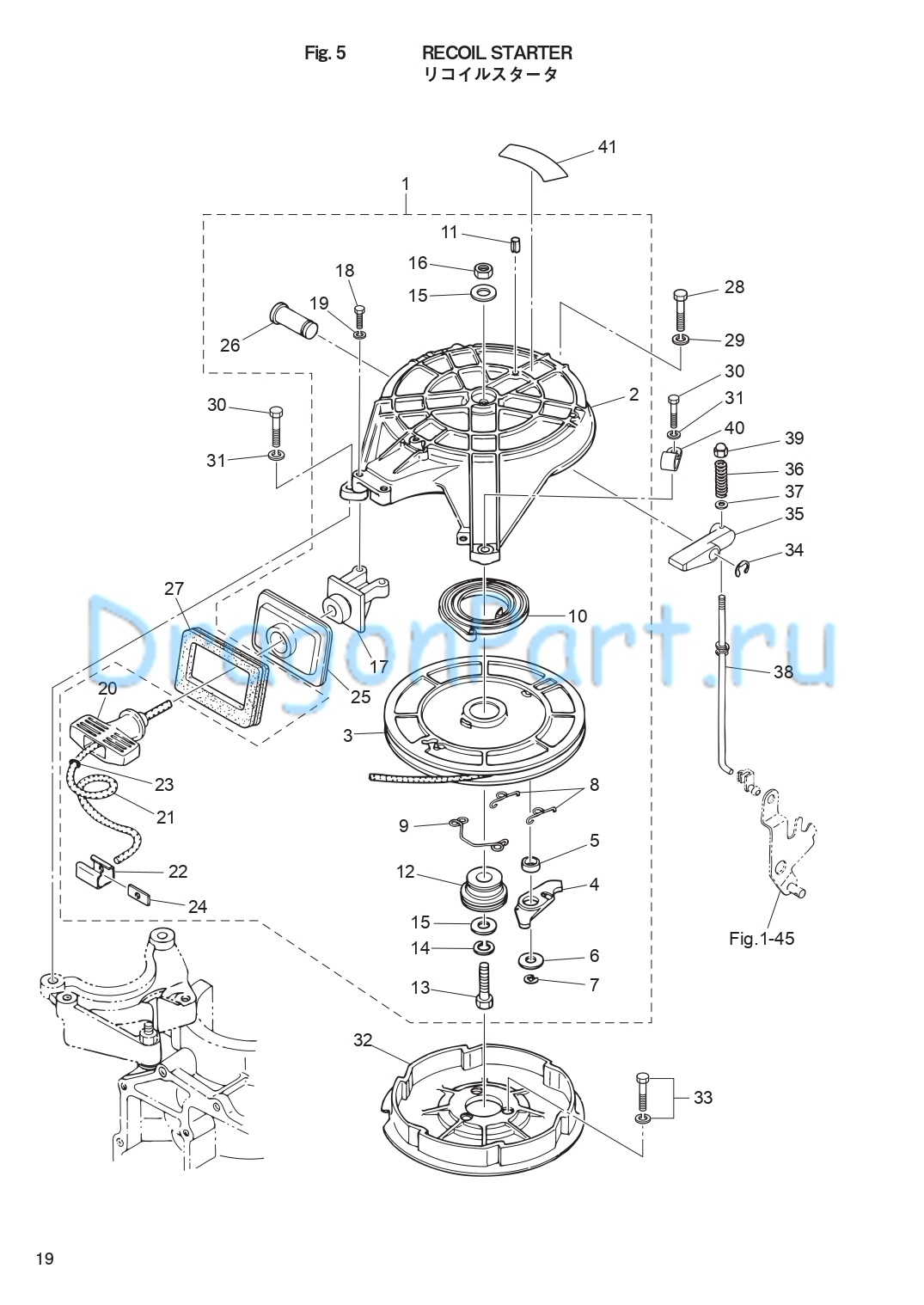

RECOIL STARTER для Tohatsu M30H - 2017 года выпуска`
-
№АртикулНазвание
-
1346-05000-4 RECOIL STARTER ASSYRECOIL STARTER ASSY
-
2345-05105-1 * STARTER CASE* STARTER CASE
-
3345-05104-1 * REEL ASSY* REEL ASSY
-
4345-05003-1 * RATCHET* RATCHET
-
5345-05135-1 * BUSHING 14.7-15.9-6* BUSHING 14.7-15.9-6
-
6345-05122-1 * WASHER 6.5-23-1.5* WASHER 6.5-23-1.5
-
7945303-0500 * E-RING d=5* E-RING d=5
-
8345-05123-1 * RETURN SPRING
Ratchet Guide A* RETURN SPRING
Ratchet Guide A -
9345-05124-0 * RETURN SPRING
Ratchet Guide B* RETURN SPRING
Ratchet Guide B -
10345-05004-1 * STARTER SPRING* STARTER SPRING
-
11951403-0316 * SPRING PIN 3-16* SPRING PIN 3-16
-
12345-05132-0 * STARTER SHAFT* STARTER SHAFT
-
139101F4-0830 * BOLT* BOLT
-
14941322-0800 * SPRING WASHER* SPRING WASHER
-
15940121-0800 * WASHER* WASHER
-
16930103-0800 * NUT* NUT
-
17336-05014-0 * ROPE GUIDE* ROPE GUIDE
-
183KK-02319-0 * BOLT 25mm* BOLT 25mm
-
19940103-0600 * WASHER* WASHER
-
20338-05019-0 * STARTER HANDLE* STARTER HANDLE
-
21345-05013-1 * STARTER ROPE φ5-2000* STARTER ROPE φ5-2000
-
22338-05131-0 * ROPE ANCHOR* ROPE ANCHOR
-
23350-05136-0 * O-RING 2.5-4.5* O-RING 2.5-4.5
-
24345-05134-0 * ROPE ANCHOR PLATE* ROPE ANCHOR PLATE
-
25346-05116-1 * SEALING PLATE* SEALING PLATE
-
26345-05225-1 * STARTER LOCK LEVER SHAFT* STARTER LOCK LEVER SHAFT
-
273KM-67503-0 STARTER SEALSTARTER SEAL
-
289101F4-0830 BOLT
Recoil StaterBOLT
Recoil Stater -
29941303-0800 SPRING WASHERSPRING WASHER
-
303KK-02319-0 BOLT 25mm
Recoil StaterBOLT 25mm
Recoil Stater -
31940103-0600 WASHERWASHER
-
32345-05901-1 STARTER PULLEYSTARTER PULLEY
-
33910121-6625 BOLT
Starter PulleyBOLT
Starter Pulley -
34945303-0600 E-RING d=6E-RING d=6
-
35345-05226-0 STARTER LOCK LEVERSTARTER LOCK LEVER
-
36345-05216-0 STARTER LOCK SPRINGSTARTER LOCK SPRING
-
37940103-0400 WASHERWASHER
-
383P0-05218-0 STARTER LOCK ROD ASSY
Starter Lock Arm-Starter Lock LeverSTARTER LOCK ROD ASSY
Starter Lock Arm-Starter Lock Lever -
39346-05209-0 CAP NUTCAP NUT
-
40345-06915-0 CLAMP 6.5-14LCLAMP 6.5-14L
-
413C7-72182-2 CAUTION DECAL (C)CAUTION DECAL (C)
