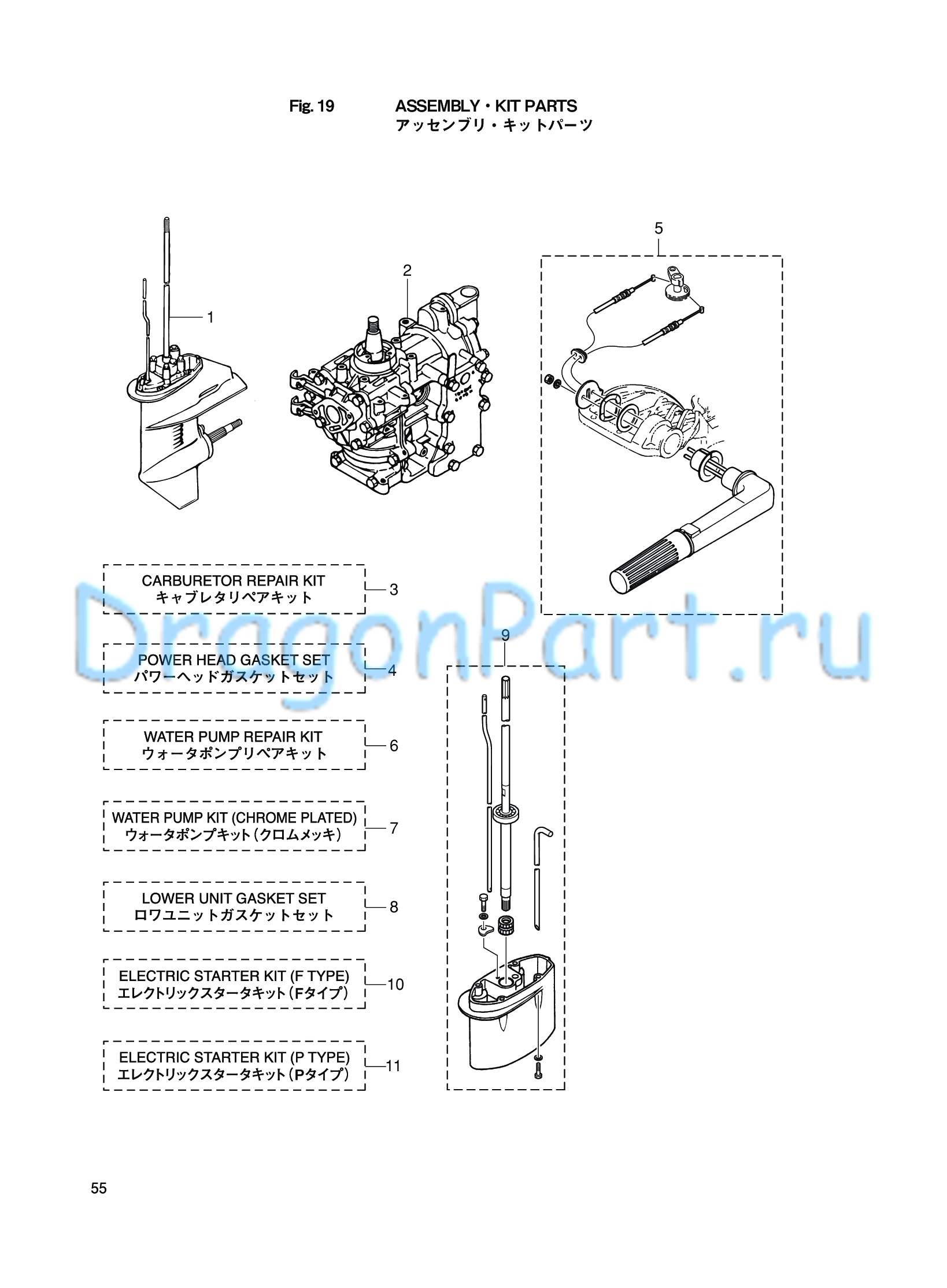

ASSEMBLY KIT PARTS для Tohatsu M6B - 2016 года выпуска`
-
№АртикулНазвание
-
13B2Q87301-7 LOWER UNIT ASSY (S)LOWER UNIT ASSY (S)
-
13B2Q87302-7 LOWER UNIT ASSY (L)LOWER UNIT ASSY (L)
-
23B2B87090-7 ENGINE SHORT BLOCK KITENGINE SHORT BLOCK KIT
-
33B2-87122-0 CARBURETOR REPAIR KITCARBURETOR REPAIR KIT
-
3369-02011-0 * CARBURETOR GASKET* CARBURETOR GASKET
-
3369-03222-0 * FLOAT CHAMBER O-RING* FLOAT CHAMBER O-RING
-
3369-03293-1 * GASKET* GASKET
-
3922503-6414 * SCREW* SCREW
-
3369-03231-0 * FLOAT* FLOAT
-
3346-03232-0 * FLOAT ARM PIN* FLOAT ARM PIN
-
33R3-03239-0 * FLOAT VALVE ASSY
Valve Pin* FLOAT VALVE ASSY
Valve Pin -
3344-03244-0 * CLIP* CLIP
-
33F3-03234-0 * SCREW* SCREW
-
3346-03256-0 * RUBBER CAP* RUBBER CAP
-
3369-03303-0 * DIAPHRAGM A* DIAPHRAGM A
-
3369-03306-0 * DIAPHRAGM B* DIAPHRAGM B
-
3922553-6423 * SCREW* SCREW
-
3369-03302-0 * PUMP COVER GASKET* PUMP COVER GASKET
-
3369-03307-0 * PUMP BODY GASKET* PUMP BODY GASKET
-
3369-03182-0 * CARBURETOR COVER GASKET* CARBURETOR COVER GASKET
-
3369-03183-0 * CARBURETOR COVER GASKET* CARBURETOR COVER GASKET
-
3369-03186-0 * SCREW* SCREW
-
43B2-87121-4 POWER HEAD GASKET SETPOWER HEAD GASKET SET
-
43B2-01005-1 * CYLINDER HEAD GASKET* CYLINDER HEAD GASKET
-
43B2-02305-2 * EXHAUST COVER GASKET* EXHAUST COVER GASKET
-
43B2-01214-1 * CRANKCASE HEAD GASKET* CRANKCASE HEAD GASKET
-
43B2-01215-0 * OIL SEAL 12-28-5
Crankcase Head* OIL SEAL 12-28-5
Crankcase Head -
43B2-00122-1 * OIL SEAL 20-40-7
Crankshaft (Lower)* OIL SEAL 20-40-7
Crankshaft (Lower) -
43B2-01303-2 * ENGINE BASEMENT GASKET* ENGINE BASEMENT GASKET
-
4101-00121-0 * OIL SEAL 20-35-7
Crankshaft (Upper)* OIL SEAL 20-35-7
Crankshaft (Upper) -
43B2-02104-1 * INTAKE MANIFOLD GASKET* INTAKE MANIFOLD GASKET
-
43B2-02105-1 * INTAKE MANIFOLD GASKET* INTAKE MANIFOLD GASKET
-
4369-02011-0 * CARBURETOR GASKET* CARBURETOR GASKET
-
53B2Q63000-2 TILLER HANDLE KITTILLER HANDLE KIT
-
53B2Q63003-2 * TILLER HANDLE ASSY* TILLER HANDLE ASSY
-
53B2-63621-0 * GROMMET 19.8-2* GROMMET 19.8-2
-
5345-67117-0 * GROMMET 17-2.7* GROMMET 17-2.7
-
5353-67162-0 * GROMMET 41-14-3* GROMMET 41-14-3
-
53B2-67187-0 * GROMMET 16-17.5* GROMMET 16-17.5
-
63B2-87322-2 WATER PUMP REPAIR KITWATER PUMP REPAIR KIT
-
63B2-65021-1 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
63B2-65022-0 * KEY ?3-11* KEY ?3-11
-
63B2-65011-0 * PUMP CASE LINER* PUMP CASE LINER
-
63B2-65025-0 * WATER PUMP GUIDE PLATE* WATER PUMP GUIDE PLATE
-
63B2-65018-2 * PUMP CASE GASKET* PUMP CASE GASKET
-
63B2-65029-2 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
69161E3-0650 * BOLT* BOLT
-
6940103-0600 * WASHER* WASHER
-
63B2-65020-1 * PUMP CASE GASKET (LOWER)* PUMP CASE GASKET (LOWER)
-
73B2-65231-2 WATER PUMP KIT (CHROME PLATED)WATER PUMP KIT (CHROME PLATED)
-
73B2-65021-1 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
73B2-65238-0 * PUMP CASE LINER
Chrome Plated* PUMP CASE LINER
Chrome Plated -
73B2-65239-0 * WATER PUMP GUIDE PLATE
Chrome Plated* WATER PUMP GUIDE PLATE
Chrome Plated -
73B2-65018-2 * PUMP CASE GASKET* PUMP CASE GASKET
-
73B2-65029-2 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
83B2-87321-4 LOWER UNIT GASKET SETLOWER UNIT GASKET SET
-
83B2-61012-2 * DRIVE SHAFT HOUSING GASKET* DRIVE SHAFT HOUSING GASKET
-
8332-60006-0 * GASKET 8.1-15-1* GASKET 8.1-15-1
-
8345-65015-0 * O-RING 3.2-47
Propeller Shaft Housing* O-RING 3.2-47
Propeller Shaft Housing -
8369-60111-0 * OIL SEAL 15-28-10
Propeller Shaft* OIL SEAL 15-28-10
Propeller Shaft -
83B2-02312-2 * EXHAUST PIPE GASKET* EXHAUST PIPE GASKET
-
83B2-65018-2 * PUMP CASE GASKET* PUMP CASE GASKET
-
83B2-65029-2 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
83B2-65020-1 * PUMP CASE GASKET (LOWER)* PUMP CASE GASKET (LOWER)
-
8309-60111-0 * OIL SEAL 12-24-8
Pump Case (Lower)* OIL SEAL 12-24-8
Pump Case (Lower) -
8369-66021-1 * O-RING 2.5-4.9
Cam Rod* O-RING 2.5-4.9
Cam Rod -
8332-66032-0 * O-RING 2.4-15.4
Cam Rod Bushing* O-RING 2.4-15.4
Cam Rod Bushing -
93B2Q87314-3 EXTENSION HOUSING KIT (UL)
for Transom "L"⇒"UL"EXTENSION HOUSING KIT (UL)
for Transom "L"⇒"UL" -
93B2Q61110-2 * EXTENSION HOUSING* EXTENSION HOUSING
-
99101E3-5635 * BOLT* BOLT
-
93B2-60003-1 * DRIVE SHAFT BUSHING (UL)* DRIVE SHAFT BUSHING (UL)
-
93V1-64332-0 * STOPPER* STOPPER
-
99101E3-5612 * BOLT* BOLT
-
93B2-64309-1 * DRIVE SHAFT ASSY (UL)* DRIVE SHAFT ASSY (UL)
-
93B2-65120-0 * WATER PIPE (UL)* WATER PIPE (UL)
-
93B2-66014-0 * CAM ROD (UL)* CAM ROD (UL)
-
103B2-76400-3 ELECTRIC STARTER KIT (F)
for MF⇒EFELECTRIC STARTER KIT (F)
for MF⇒EF -
103B2-06194-1 * FLYWHEEL ASSY W/GEAR* FLYWHEEL ASSY W/GEAR
-
103B2-06123-1 * ALTERNATOR ASSY (80W)* ALTERNATOR ASSY (80W)
-
10350-76010-0 * STARTER MOTOR ASSY* STARTER MOTOR ASSY
-
10916103-0830 * BOLT* BOLT
-
10941303-0800 * SPRING WASHER* SPRING WASHER
-
10350-76011-0 * STARTER MOTOR BRACKET* STARTER MOTOR BRACKET
-
10910103-5825 * BOLT* BOLT
-
10346-76040-0 * STARTER SOLENOID* STARTER SOLENOID
-
10910103-6620 * BOLT* BOLT
-
10930103-0600 * NUT* NUT
-
10398-76080-1 * NEUTRAL SWITCH* NEUTRAL SWITCH
-
10398-76083-0 * NEUTRAL SWITCH ACTUATOR* NEUTRAL SWITCH ACTUATOR
-
103B7-63731-0 * WASHER 12.5-24-1* WASHER 12.5-24-1
-
103B2-76060-0 * RECTIFIER COMPLETE* RECTIFIER COMPLETE
-
10921503-0525 * SCREW* SCREW
-
10941303-0500 * SPRING WASHER* SPRING WASHER
-
10930103-0500 * NUT* NUT
-
10398-06972-0 * CLAMP 6.5-67P* CLAMP 6.5-67P
-
10309-06972-0 * CLAMP 6.5-47.5P* CLAMP 6.5-47.5P
-
10910103-0610 * BOLT* BOLT
-
103B2-76120-1 * BATTERY CABLE L=2000* BATTERY CABLE L=2000
-
103B2-76062-0 * FUSE WIRE ASSY L=355* FUSE WIRE ASSY L=355
-
103B2-76147-2 * STARTER CABLE L=200* STARTER CABLE L=200
-
103A3-76145-0 * TERMINAL CAP 8-13-28* TERMINAL CAP 8-13-28
-
103B7-76145-0 * TERMINAL CAP 8-13-30* TERMINAL CAP 8-13-30
-
10345-06917-1 * CLAMP 9-20U* CLAMP 9-20U
-
103B2-76026-1 * MAIN SWITCH ASSY* MAIN SWITCH ASSY
