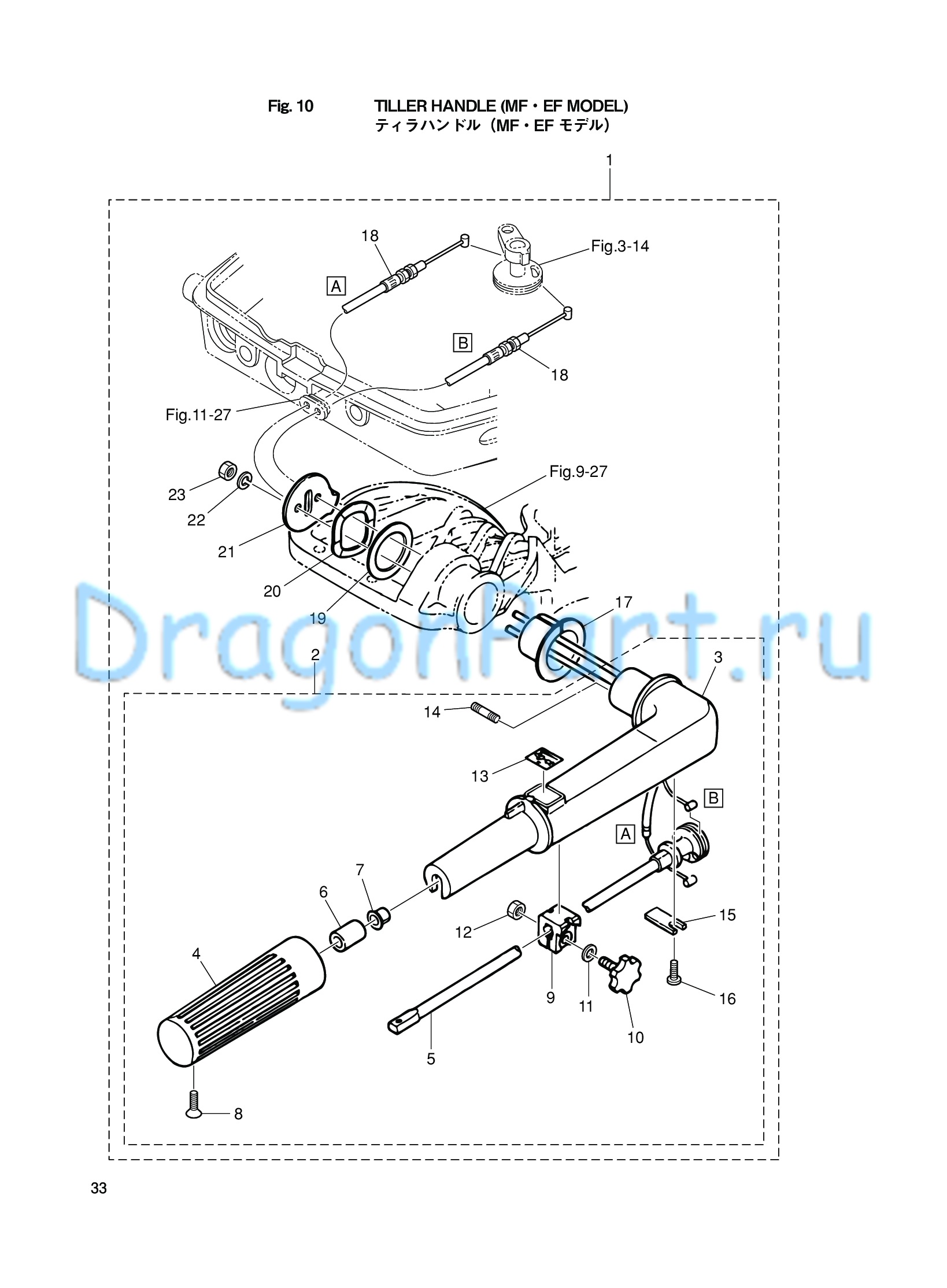

TILLER HANDLE (MF EF MODEL) для Tohatsu M6B - 2016 года выпуска
-
№АртикулНазвание
-
13B2Q63003-2 TILLER HANDLE ASSY"TILLER HANDLE ASSY"
-
23B2Q63005-2 * TILLER HANDLE SUB-ASSY"* TILLER HANDLE SUB-ASSY"
-
33B2Q63011-1 ** TILLER HANDLE"** TILLER HANDLE"
-
4350-63012-2 ** GRIP"** GRIP"
-
53B2-63041-0 ** THROTTLE SHAFT"** THROTTLE SHAFT"
-
6345-63048-0 ** THROTTLE SHAFT DAMPER"** THROTTLE SHAFT DAMPER"
-
7350-63046-0 ** BUSHING 8.4-10-11"** BUSHING 8.4-10-11"
-
8920803-0518 ** SCREW"** SCREW"
-
93B2-63035-1 ** FRICTION PIECE"** FRICTION PIECE"
-
103B2-63034-0 ** ADJUSTING SCREW M6-16"** ADJUSTING SCREW M6-16"
-
11940103-0600 ** WASHER"** WASHER"
-
12930103-0600 ** NUT"** NUT"
-
13369-72019-1 ** THROTTLE DECAL"** THROTTLE DECAL"
-
143B2-63104-1 ** STUD"** STUD"
-
153B2-63063-0 ** THROTTLE SHAFT SUPPORT"** THROTTLE SHAFT SUPPORT"
-
169215E3-0612 ** SCREW"** SCREW"
-
173B2-63102-0 * BUSHING"* BUSHING"
-
183B2-63600-1 * THROTTLE WIRE"* THROTTLE WIRE"
-
193B2-63108-0 * WASHER 30-45-1"* WASHER 30-45-1"
-
203B2-63109-0 * WAVE WASHER 30-45-1.2"* WAVE WASHER 30-45-1.2"
-
213B2-63103-0 * STEERING HANDLE STOPPER"* STEERING HANDLE STOPPER"
-
22941303-0600 * SPRING WASHER"* SPRING WASHER"
-
23930103-0600 * NUT"* NUT"
Все узлы модели:
- ASSEMBLY KIT PARTS
- BOTTOM COWL
- BRACKET REVERSE LOCK
- CARBURETOR FUEL PUMP
- COMPONENT PARTS OF REMOTE CONTROL
- COMPONENT PARTS OF REMOTE CONTROL(ELCTRIC PARTS)
- CYLINDER CRANK CASE
- DRIVE SHAFT HOUSING
- FUEL TANK
- GEAR CASE
- INTAKE MAINFOLD REED VALVE THROTTLE
- MAGNET ELECTRIC PARTS
- OPTIONAL PARTS (ACCESSORIES)
- PISTON CRANK SHAFT
- RECOIL STARTER STARTER LOCK
- REMOTE CONTROL
- SHIFT
- • TILLER HANDLE (MF EF MODEL)
- TOP COWL
