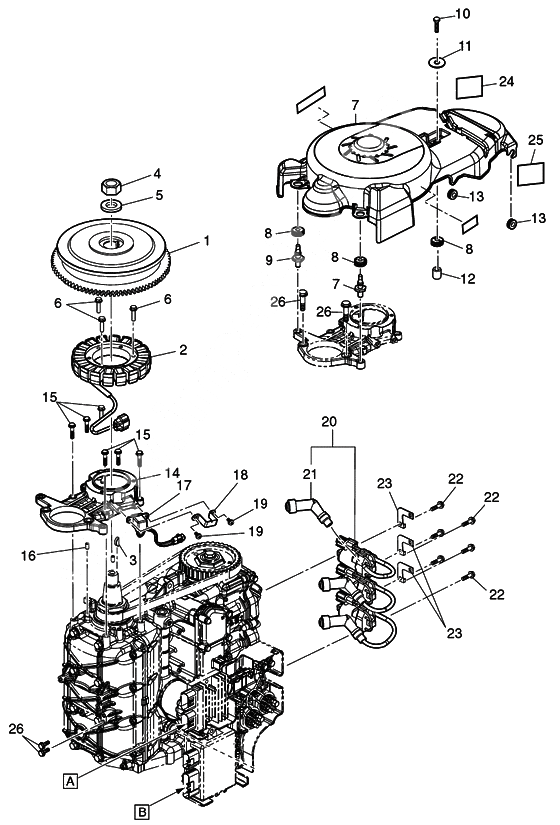

Magneto для Tohatsu MFS40A - 2014 года выпуска`
-
№АртикулНазвание
-
13KY-06091-0 Flywheel w/gearFlywheel w/gear
-
23KY-06123-0 Alternator assyAlternator assy
-
3334-00131-0 Key Magneto
MAGNETKey Magneto
MAGNET -
43C7-00132-0 NutNut
-
53C7-00133-0 WasherWasher
-
6910103-5625 BoltBolt
-
73KY-06301-0 Ring gear coverRing gear cover
-
83T1-67005-0 Grommet 16-2.5Grommet 16-2.5
-
91E0-36056-0 Ring gear cover hookRing gear cover hook
-
10910103-0620 BoltBolt
-
113R0-66308-0 WasherWasher
-
123A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
13172-36008-0 GrommetGrommet
-
143KY-06008-0 Coil bracketCoil bracket
-
15910103-5625 BoltBolt
-
16345-01111-0 Dowel Pin 6-12
CYLINDER BLOCK-COIL BRACKETDowel Pin 6-12
CYLINDER BLOCK-COIL BRACKET -
173KY-06071-0 Pulsar CoilPulsar Coil
-
183KY-06070-0 Pulsar coil guardPulsar coil guard
-
19921503-5512 ScrewScrew
-
921503-0512 ScrewScrew
-
203KY-06469-0 Ignition coil w/res-capIgnition coil w/res-cap
-
213AC-06999-0 Plug cap (with resistance)Plug cap (with resistance)
-
22910103-5620 BoltBolt
-
233KY-76174-0 StayStay
-
243KZ-72181-0 Caution decalCaution decal
-
243KY-72181-0 Caution decalCaution decal
-
253KY-72194-0 Fuse decalFuse decal
-
26910103-5830 BoltBolt
