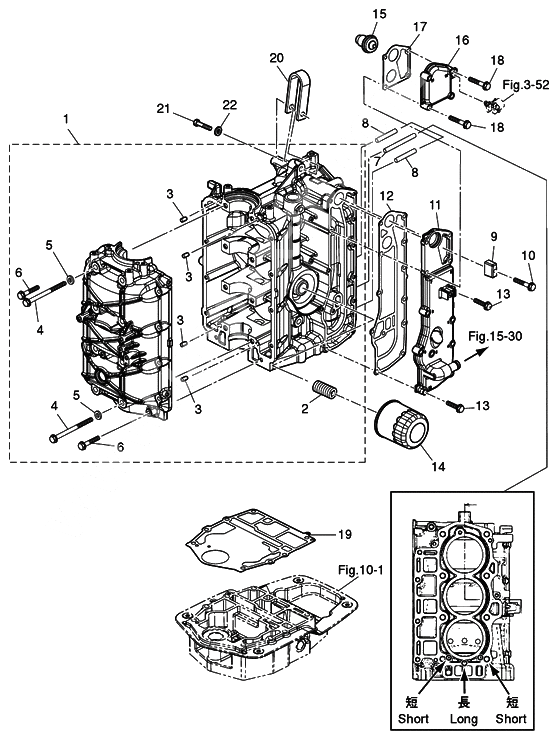

Cylinder & crank case для Tohatsu MFS40A - 2014 года выпуска
-
№АртикулНазвание
-
13KYB01100-0 Cylinder block & crankcase assy, mfs40a/50aCylinder block & crankcase assy, mfs40a/50a
-
23H8-07636-0 Bolt, Oil FilterBolt, Oil Filter
-
3345-01111-0 Dowel Pin 6-12
CRANKCASE-CYLINDER BLOCKDowel Pin 6-12
CRANKCASE-CYLINDER BLOCK -
43R0-01113-1 BoltBolt
-
3R0-01113-0 BoltBolt
-
5940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
63KY-01114-0 Bolt 6-35Bolt 6-35
-
73KY-01195-0 Water jacket insert (r) l=55
LONGWater jacket insert (r) l=55
LONG -
83KY-01196-0 Water jacket insert (l) l=35
SHOTWater jacket insert (l) l=35
SHOT -
93B7-60218-1 AnodeAnode
-
10910103-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
113KYB02300-0 Exhaust cover assyExhaust cover assy
-
123KY-02305-0 Exhaust Cover GasketExhaust Cover Gasket
-
139101E3-5625 Bolt & washerBolt & washer
-
143R0-07615-1 Oil filter 9.9-60 hp 4-strokeOil filter 9.9-60 hp 4-stroke
-
3R0-07615-0 Oil filter 9.9-60 hp 4-strokeOil filter 9.9-60 hp 4-stroke
-
153KY-01030-0 Thermostat
MARK 60Thermostat
MARK 60 -
163KYB01031-0 Thermostat capThermostat cap
-
173KY-01032-0 Thermostat cap gasketThermostat cap gasket
-
189101E3-5635 Bolt & washerBolt & washer
-
193KY-01303-0 Engine base gasketEngine base gasket
-
203KY-01513-0 HangerHanger
-
21910114-0835 BoltBolt
-
22940121-0800 WasherWasher
