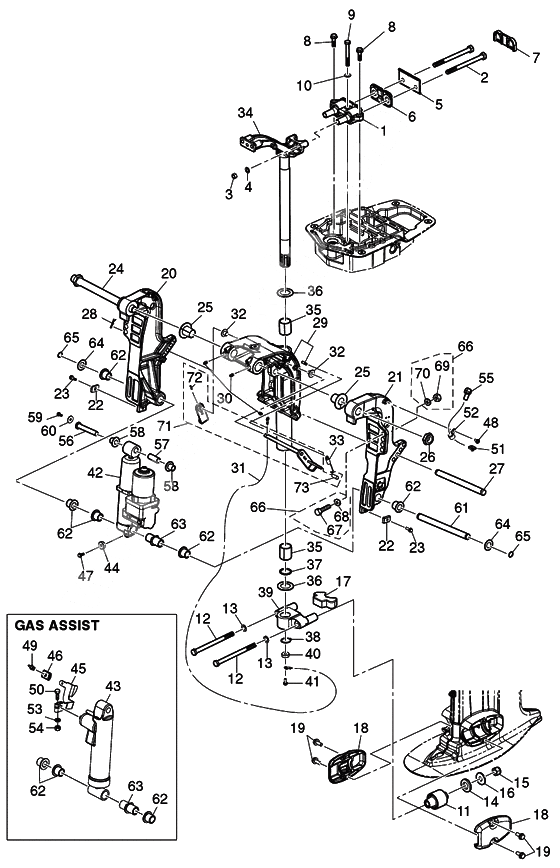

Bracket для Tohatsu MFS40A - 2014 года выпуска
-
№АртикулНазвание
-
13KY-61301-0 Rubber mount (upper)Rubber mount (upper)
-
23KY-61307-0 Bolt 10-130 p1.25Bolt 10-130 p1.25
-
33B7-61114-0 NutNut
-
4940203-1000 WasherWasher
-
53KY-61335-0 Lock PlateLock Plate
-
63KY-61333-0 Damper (upper) front side
FRONT SIDEDamper (upper) front side
FRONT SIDE -
73KY-61339-0 Damper (upper) rear side
REAR SIDEDamper (upper) rear side
REAR SIDE -
89101E3-5830 BoltBolt
-
910103-5830 BoltBolt
-
93KY-61343-0 Bolt 8-70Bolt 8-70
-
109402E3-0800 WasherWasher
-
940203-0800 WasherWasher
-
113KY-61302-0 Rubber mount (lower)
MOUNT BRACKET-DRIVE SHAFT HOUSINGRubber mount (lower)
MOUNT BRACKET-DRIVE SHAFT HOUSING -
123KY-61321-0 Bolt 12-177.5 p1.25Bolt 12-177.5 p1.25
-
13353-61334-0 Washer
BOLT SIDEWasher
BOLT SIDE -
143C7-61338-0 Damper RubberDamper Rubber
-
153R0-61324-0 Nylon Nut,12-P1.25Nylon Nut,12-P1.25
-
169402E3-1200 Washer
NUT SIDEWasher
NUT SIDE -
173KY-61336-0 Damper (lower)
MOUNT BRACKETDamper (lower)
MOUNT BRACKET -
183KYQ61342-0 Mount holding plate (lower)Mount holding plate (lower)
-
199101E3-5820 BoltBolt
-
910103-5820 BoltBolt
-
203KYQ77211-0 Clamp bracket (ptt-r) starboard
STARBOARD SIDEClamp bracket (ptt-r) starboard
STARBOARD SIDE -
213KYQ77212-0 Clamp bracket (ptt-l) port
PORT SIDEClamp bracket (ptt-l) port
PORT SIDE -
223H6-60218-0 Anode
CLAMP BRACKETAnode
CLAMP BRACKET -
23910103-5620 BoltBolt
-
243AD-62191-0 Swivel bracket bolt (ptt)Swivel bracket bolt (ptt)
-
253KY-77213-0 BushingBushing
-
26346-62124-1 Bracket nutBracket nut
-
273R0-77118-0 Thrust RodThrust Rod
-
28951603-1000 R-PinR-Pin
-
293KZQ77208-0 Swivel bracket assy (s)
FOR TRANSOM SSwivel bracket assy (s)
FOR TRANSOM S -
293KYQ77208-0 Swivel bracket assy (l/ul)
FOR TRANSOM L&ULSwivel bracket assy (l/ul)
FOR TRANSOM L&UL -
30344-67177-1 Grease NippleGrease Nipple
-
313C8-62396-1 Ground Wire
SWIVEL BRACKET-DRIVE SHAFT HOUSINGGround Wire
SWIVEL BRACKET-DRIVE SHAFT HOUSING -
32353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
333R0-62473-0 Spring,Tilt StopperSpring,Tilt Stopper
-
343KZQ62010-0 Steering shaft assy (s)
FOR TRANSOM SSteering shaft assy (s)
FOR TRANSOM S -
343KYQ62010-0 Steering shaft assy (l/ul)
FOR TRANSOM L&ULSteering shaft assy (l/ul)
FOR TRANSOM L&UL -
35353-62417-0 BushingBushing
-
36353-62423-1 Thrust Plate
UPPER & LOWERThrust Plate
UPPER & LOWER -
37353-62415-0 O-RingO-Ring
-
38945103-2800 C-RingC-Ring
-
945127-2800 C-RingC-Ring
-
393KYQ61411-0 Mount bracketMount bracket
-
40338-60218-2 New part
MOUNT BRACKETNew part
MOUNT BRACKET -
41910103-5616 BoltBolt
-
423Z5-77150-1 Power trim & tilt assy d40/50 (amb)Power trim & tilt assy d40/50 (amb)
-
44338-60218-2 New part
FOR PTT MODELNew part
FOR PTT MODEL -
453R0-66311-0 Rever, Revers Lock
FOR GAS ASSIST MODELRever, Revers Lock
FOR GAS ASSIST MODEL -
463AL-66333-0 Lock lever grip
FOR GAS ASSIST MODELLock lever grip
FOR GAS ASSIST MODEL -
47910103-5616 BoltBolt
-
48921503-5612 Stud Bolt
FOR PTT MODELStud Bolt
FOR PTT MODEL -
49346-66334-0 Stopper
FOR GAS ASSIST MODELStopper
FOR GAS ASSIST MODEL -
503V2-60001-0 Bolt 6-35 precoated
FOR GAS ASSIST MODELBolt 6-35 precoated
FOR GAS ASSIST MODEL -
513Z0-84398-0 Band lead wire 203-local purchase
FOR PTT MODELBand lead wire 203-local purchase
FOR PTT MODEL -
52345-06915-0 Clamp 6.5-14
FOR PTT MODELClamp 6.5-14
FOR PTT MODEL -
539401E3-0600 Washer
FOR GAS ASSIST MODELWasher
FOR GAS ASSIST MODEL -
940113-0600 WasherWasher
-
549301E3-0600 Nut
FOR GAS ASSIST MODELNut
FOR GAS ASSIST MODEL -
930103-0600 NutNut
-
553Y1-76145-0 Terminal Cap
RED / FOR PTT MODELTerminal Cap
RED / FOR PTT MODEL -
563KY-77071-0 Cylinder pin (upper)Cylinder pin (upper)
-
573R0-77075-0 BushingBushing
-
583KY-77075-0 Bushing 18-24-22Bushing 18-24-22
-
59910103-0612 New partNew part
-
60345-05122-1 Washer rachetWasher rachet
-
613KY-77101-0 Cylinder pin (lower)Cylinder pin (lower)
-
623KY-77076-0 Bushing 18-24-22Bushing 18-24-22
-
633KY-77103-0 Bushing 18-24-60Bushing 18-24-60
-
643R0-77112-0 WasherWasher
-
65945103-1800 C-RingC-Ring
-
663AD-72120-0 Rigging bolt setRigging bolt set
-
673C7-62133-2 BoltBolt
-
68353-61334-0 WasherWasher
-
693C7-62139-1 Nut,P1.25Nut,P1.25
-
709401E3-1200 WasherWasher
-
940103-1200 WasherWasher
-
713GF-62466-1 Tilt stopper (ptt type)
FOR PTT MODEL / TWO HOLETilt stopper (ptt type)
FOR PTT MODEL / TWO HOLE -
713AC-62466-1 Tilt stopper (gas assist)
FOR GAS ASSIST MODEL / NON HOLETilt stopper (gas assist)
FOR GAS ASSIST MODEL / NON HOLE -
72951403-3516 New partNew part
-
73369-62433-1 Grip Tilt StopperGrip Tilt Stopper
