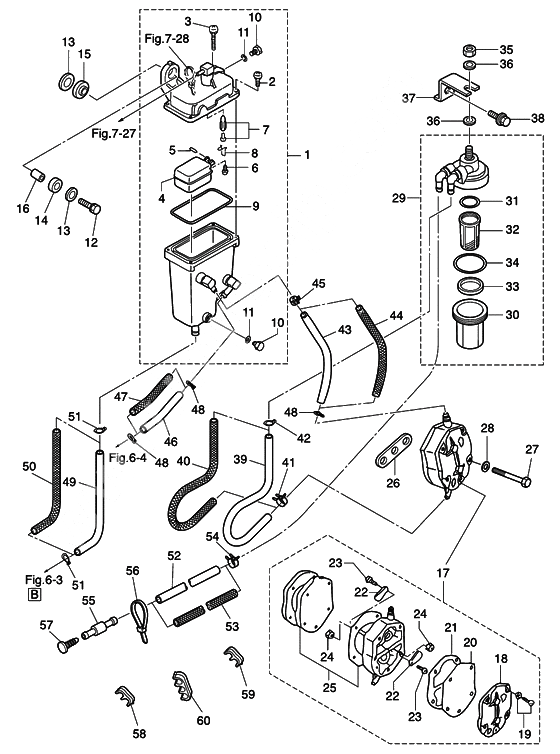

Vapor separator & fuel line для Tohatsu MD90C2 - 2014 года выпуска
-
№АртикулНазвание
-
13T5-10150-1 Vapor separator assy
V.S.TVapor separator assy
V.S.T -
2922531-6414 Stud BoltStud Bolt
-
3921503-6430 Stud BoltStud Bolt
-
43T5-03230-0 Float, Vapor SeparaterFloat, Vapor Separater
-
53F3-03232-0 Arm Pin FloatArm Pin Float
-
6921503-0408 Stud BoltStud Bolt
-
73R3-03239-0 Floato Valve Assy
VALVE PINFloato Valve Assy
VALVE PIN -
8344-03244-0 ClipClip
-
93T5-03235-0 O-RingO-Ring
-
10345-03292-0 Drain Screw
UPPER & LOWERDrain Screw
UPPER & LOWER -
11336-03293-0 O-Ring
UPPER & LOWERO-Ring
UPPER & LOWER -
12910103-0630 BoltBolt
-
9101E3-0630 BoltBolt
-
13346-67115-0 WasherWasher
-
14346-67113-0 Mount RubberMount Rubber
-
153B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
16346-67114-1 SpacerSpacer
-
346-67114-0 SpacerSpacer
-
17356-04000-1 New partNew part
-
18334-04004-0 Fuel CoverFuel Cover
-
199225F2-6528 ScrewScrew
-
922512-6528 ScrewScrew
-
20334-04005-0 New partNew part
-
21334-04007-0 Gasket B DiaphragmGasket B Diaphragm
-
22356-04044-0 Check ValveCheck Valve
-
23921722-0306 Stud BoltStud Bolt
-
24930222-0300 NutNut
-
25356-04030-0 New partNew part
-
26346-04901-2 Gasket
FUEL PUMPGasket
FUEL PUMP -
27910103-0640 BoltBolt
-
28940203-0600 WasherWasher
-
293T1-02230-0 Fuel filter assy.Fuel filter assy.
-
303B7-02237-0 CupCup
-
313B7-02235-0 O-Ring AO-Ring A
-
323B7-02234-0 FilterFilter
-
333T5-02229-0 Float, Fuel FilterFloat, Fuel Filter
-
343B7-02236-0 O???? bO???? b
-
35930103-0800 NutNut
-
36940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
373T5-02239-0 Plate, FilterPlate, Filter
-
38910103-5616 BoltBolt
-
393FW-02211-0 Hose low permeation
FUEL FILTER-FUEL PUMP / STDHose low permeation
FUEL FILTER-FUEL PUMP / STD -
403FW-02165-0 Hose low permeation
LOW PERMEATION PARTS / USA EPA-KRI-15GHose low permeation
LOW PERMEATION PARTS / USA EPA-KRI-15G -
41345-70114-1 Clip
FUEL PUMP SIDEClip
FUEL PUMP SIDE -
345-70114-0 ClipClip
-
42338-02215-0 Clip
FUEL FILTER SIDEClip
FUEL FILTER SIDE -
4398AB-5-0210 Fuel pipe 5mm (1 ea.=1 meter)
FUEL PUMP-V.S.T / STD 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
FUEL PUMP-V.S.T / STD 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
443GB-02165-0 Hose low permeation
LOW PERMEATION PARTS / USA EPA-KRI-15GHose low permeation
LOW PERMEATION PARTS / USA EPA-KRI-15G -
453AB-35143-0 Clip @ 9.5
V.S.T SIDEClip @ 9.5
V.S.T SIDE -
4698AB-5-0075 Fuel pipe 5mm (1 ea.=1 meter)
FFP-V.S.T / STD 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
FFP-V.S.T / STD 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
473GA-02165-0 Hose low permeation
LOW PERMEATION PARTS / USA EPA-KRI-15GHose low permeation
LOW PERMEATION PARTS / USA EPA-KRI-15G -
48338-02215-0 Clip
FFP-V.S.T & FUEL PUMP SIDEClip
FFP-V.S.T & FUEL PUMP SIDE -
4998AB-7-0145 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
FFP-V.S.T / STD 98AB-701000Fuel pipe 7mm/5/16in (1 ea.=1 meter)
FFP-V.S.T / STD 98AB-701000 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
503FW-02170-0 Hose low permeation
LOW PERMEATION PARTS / USA EPA-KRI-15GHose low permeation
LOW PERMEATION PARTS / USA EPA-KRI-15G -
513C7-02215-0 Clip
FFP-V.S.TClip
FFP-V.S.T -
5298AB70120-0 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
CONNECTOR-FUEL FILTER / STD 98AB-701000 X2Fuel pipe 7mm/5/16in (1 ea.=1 meter)
CONNECTOR-FUEL FILTER / STD 98AB-701000 X2 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
533KD-02170-1 Fuel hose low permeation
LOW PERMEATION PARTS / USA EPA-KRI-15GFuel hose low permeation
LOW PERMEATION PARTS / USA EPA-KRI-15G -
54345-70114-1 Clip
FUEL PUMP SIDEClip
FUEL PUMP SIDE -
345-70114-0 ClipClip
-
553T1-60018-0 Fuel hose nippleFuel hose nipple
-
563T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
573T1-03813-0 Cap fuel hose nippleCap fuel hose nipple
-
583T1-06917-0 Clamp (not available)Clamp (not available)
-
593T1-06915-0 ClampClamp
-
603U1-06915-0 ClampClamp
