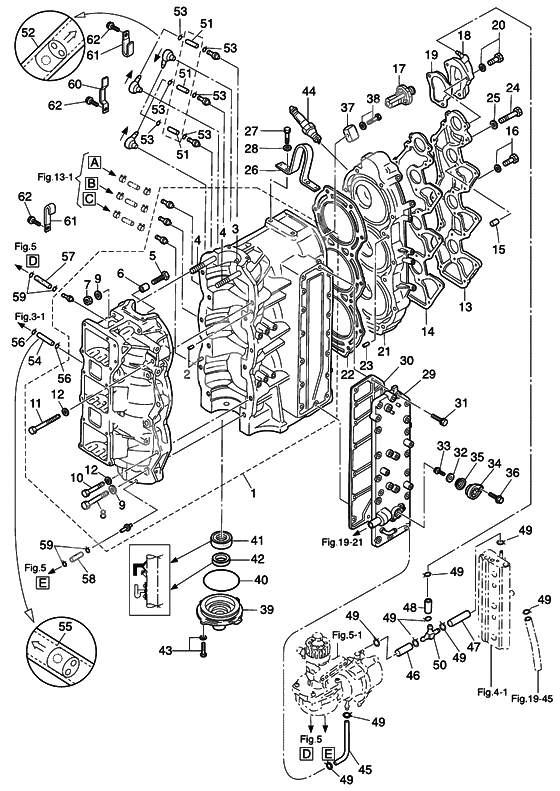

Cylinder & crank case для Tohatsu MD90C2 - 2014 года выпуска`
-
№АртикулНазвание
-
13FWB01100-1 Cylinder crankcase d75/90c2Cylinder crankcase d75/90c2
-
3FWB01100-0 Cylinder crankcase d75/90c2Cylinder crankcase d75/90c2
-
2345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
33T9-00117-0 Knock, Main BearingKnock, Main Bearing
-
4915324-1065 Stud BoltStud Bolt
-
5910103-0618 Bolt
ADVANCER ARM STOPPERBolt
ADVANCER ARM STOPPER -
6353-76079-0 Collar 6.2-9-9.3
ADVANCER ARM STOPPERCollar 6.2-9-9.3
ADVANCER ARM STOPPER -
7931121-1000 NutNut
-
8916129-1065 BoltBolt
-
93B7-01116-0 WasherWasher
-
10916124-0850 BoltBolt
-
11916124-0865 BoltBolt
-
12345-01015-0 WasherWasher
-
133T9B01021-0 Cover,Cylinder HeadCover,Cylinder Head
-
143T9-01024-0 Gasket,Cylinder Head CoverGasket,Cylinder Head Cover
-
15334-65012-0 СтопорСтопор
-
16910103-5625 BoltBolt
-
173C7-01030-0 New part
PRV 60CNew part
PRV 60C -
183T9B01060-0 Cup, Thermostat
NIPPLECup, Thermostat
NIPPLE -
193T9-01032-1 Gasket thermostat capGasket thermostat cap
-
209101E3-5640 Bolt & washerBolt & washer
-
213FWB01091-0 Cylinder head d75c2/d90c2Cylinder head d75c2/d90c2
-
223T9-01005-0 Gasket,Cylinder HeadGasket,Cylinder Head
-
23334-65012-0 СтопорСтопор
-
24916129-0875 BoltBolt
-
25345-01015-0 WasherWasher
-
263C7-01513-2 Hanger - when out use 3c7b015131Hanger - when out use 3c7b015131
-
3C7B01513-0 Hanger - when out use 3c7b015131Hanger - when out use 3c7b015131
-
27910114-0820 BoltBolt
-
28940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
293FWB02300-0 Exhaust cover outerExhaust cover outer
-
303FW-02305-0 Gasket exhaust coverGasket exhaust cover
-
319101E3-5625 Bolt & washerBolt & washer
-
32369-60218-1 New partNew part
-
33910103-0616 BoltBolt
-
343FW-01143-0 Anode plugAnode plug
-
353FW-01146-0 Seal ringSeal ring
-
36910103-5620 BoltBolt
-
373B7-60218-1 AnodeAnode
-
38910103-5630 BoltBolt
-
393B7-01291-2 Head l/crank caseHead l/crank case
-
40171-00053-0 O-RingO-Ring
-
413T9-00121-0 Oil Seal,35-58-9Oil Seal,35-58-9
-
423C7-01215-0 Oil Seal, 19.6-35-10Oil Seal, 19.6-35-10
-
43910103-5620 BoltBolt
-
449701-1-1111 Spark plug ngk izfr6q (iridium)
NGKSpark plug ngk izfr6q (iridium)
NGK -
4598AB-5-0780 Fuel pipe 5mm (1 ea.=1 meter)
EXHAUST-AIR COMP / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
EXHAUST-AIR COMP / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4698AB-5-0065 Fuel pipe 5mm (1 ea.=1 meter)
AIR COMP-T-NIPPLE / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
AIR COMP-T-NIPPLE / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4798AB-5-0065 Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE-AIR RAIL / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE-AIR RAIL / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4898AB-5-0115 Fuel pipe 5mm (1 ea.=1 meter)
THERMO CAP-T-NIPPLE / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
THERMO CAP-T-NIPPLE / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
49338-02215-0 ClipClip
-
503T7-01175-0 T-NippleT-Nipple
-
5198AL-4-0185 Lube pipe (1 ea.=1m) must use 393011600m check valve
PASSAGE-CYLINDER / 98AL-401000Lube pipe (1 ea.=1m) must use 393011600m check valve
PASSAGE-CYLINDER / 98AL-401000 -
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
52393-01160-0 Check ValveCheck Valve
-
53338-01133-0 ClipClip
-
5498AL-4-0240 Lube pipe (1 ea.=1m) must use 393011600m check valve
AIR BOX-#2C/CASE / 98AL-401000Lube pipe (1 ea.=1m) must use 393011600m check valve
AIR BOX-#2C/CASE / 98AL-401000 -
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
55393-01160-0 Check Valve
AIR BOX-#2C/CASECheck Valve
AIR BOX-#2C/CASE -
56338-01133-0 ClipClip
-
5799AA-2-0320 Vinyl pipe (1 ea.=1 meter)
AIR COMP-#1C/CASE / 99AA-201000Vinyl pipe (1 ea.=1 meter)
AIR COMP-#1C/CASE / 99AA-201000 -
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
5899AA-2-0590 Vinyl pipe (1 ea.=1 meter)
AIR COMP-#3C/CASE / 99AA-201000Vinyl pipe (1 ea.=1 meter)
AIR COMP-#3C/CASE / 99AA-201000 -
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
593B7-09052-0 Clip 6.8Clip 6.8
-
369-70098-2 Clip 6.8Clip 6.8
-
603FW-06972-0 ClampClamp
-
613FY-06972-0 ClampClamp
-
62910103-5612 BoltBolt
