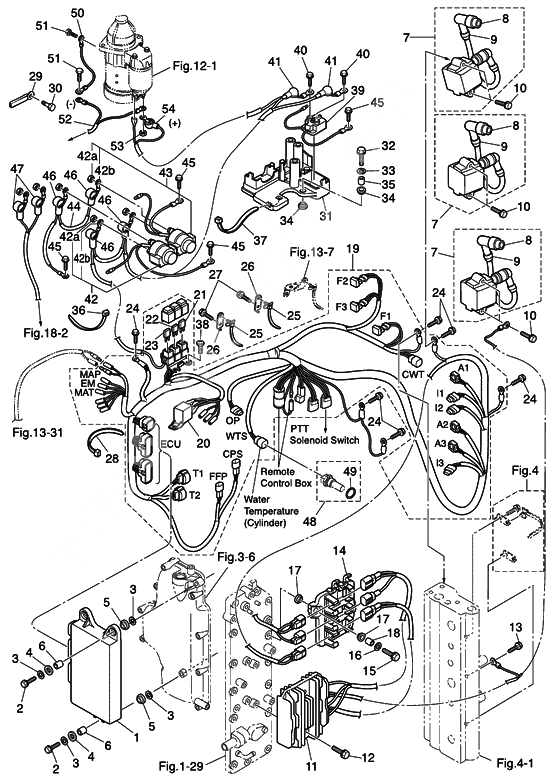

Electric parts (ecu & diagram) для Tohatsu MD90C2 - 2014 года выпуска
-
№АртикулНазвание
-
13FW-06401-0 Electronic control unit (ecu) d90c2
90PS ENGINE CONTROL UNIT / 3FW10AAElectronic control unit (ecu) d90c2
90PS ENGINE CONTROL UNIT / 3FW10AA -
2910103-0630 BoltBolt
-
9101E3-0630 BoltBolt
-
3346-67115-0 WasherWasher
-
4346-67113-0 Mount RubberMount Rubber
-
53B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
63T5-67114-0 Spacer, 6.2-9-16.6Spacer, 6.2-9-16.6
-
73Y9-06469-1 Ignition coil #1 & #2 d70/90b
#1 2 3Ignition coil #1 & #2 d70/90b
#1 2 3 -
83H6-06999-0 Plug Cap (Registance)
#1 2 3Plug Cap (Registance)
#1 2 3 -
9369-84398-0 Band Lead Wire,158Band Lead Wire,158
-
10910103-5630 BoltBolt
-
113FW-76060-0 Rectifier d75/90c2
RX4159Rectifier d75/90c2
RX4159 -
12910103-5625 BoltBolt
-
13910103-5612 BoltBolt
-
143FW-06281-0 Cable terminal holderCable terminal holder
-
15910103-0620 BoltBolt
-
163C8-66308-0 New partNew part
-
173F3-06920-0 Mount Rubber 9-12-2Mount Rubber 9-12-2
-
183T5-76079-0 Spacer, 6.2-9-10.7Spacer, 6.2-9-10.7
-
193FW-76110-0 Cord assy a d75/90c2Cord assy a d75/90c2
-
203T1-06330-0 RelayRelay
-
213T5-76249-0 ПредохранительПредохранитель
-
223Y9-76248-0 Fuse 25aFuse 25a
-
233T5-76246-0 ПредохранительПредохранитель
-
24910103-5612 Bolt
GROUNDBolt
GROUND -
253T1-84398-0 Lead wire band 170 (local purchase)
CYLINDER / CRANKCASELead wire band 170 (local purchase)
CYLINDER / CRANKCASE -
263FW-76174-0 Stay
CYLINDER / CRANKCASEStay
CYLINDER / CRANKCASE -
27910103-5612 Bolt
BAND STAYBolt
BAND STAY -
28369-84398-0 Band Lead Wire,158Band Lead Wire,158
-
29309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
30910103-5612 BoltBolt
-
313FW-06901-0 Electric bracketElectric bracket
-
32910103-0625 BoltBolt
-
333C8-66308-0 New partNew part
-
343F3-06920-0 Mount Rubber 9-12-2Mount Rubber 9-12-2
-
353T5-76079-0 Spacer, 6.2-9-10.7Spacer, 6.2-9-10.7
-
363AC-76091-0 Lead wire band-local purchaseLead wire band-local purchase
-
373T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
383T5-06437-0 Tapping Screw, 6-16Tapping Screw, 6-16
-
393H8-76040-0 Starter SolenoidStarter Solenoid
-
40910103-5608 BoltBolt
-
413Y1-76145-0 Terminal Cap
REDTerminal Cap
RED -
423C8-72580-0 Solenoid switch a, ptt (up)
UPSolenoid switch a, ptt (up)
UP -
42A930103-0600 NutNut
-
42B941303-0600 New partNew part
-
433C8-72581-0 Solenoid switch b, ptt (dn)
DNSolenoid switch b, ptt (dn)
DN -
443T5-76142-1 Cord a solenoid switchCord a solenoid switch
-
3T5-76142-0 Cord a solenoid switchCord a solenoid switch
-
45910103-5612 BoltBolt
-
463Y1-76145-0 Terminal Cap
REDTerminal Cap
RED -
473A3-76145-0 Cap Starter Terminal
BLACKCap Starter Terminal
BLACK -
483Y9-72514-0 Water Temperature Sensor
CYLINDERWater Temperature Sensor
CYLINDER -
493G9-66136-0 O-RingO-Ring
-
503R3-76141-0 STARTER CORDSTARTER CORD
-
51910103-5612 BoltBolt
-
523FW-76120-0 Battery cord d75/90c2Battery cord d75/90c2
-
53930103-0800 NutNut
-
543FW-76145-0 Terminal CapTerminal Cap
