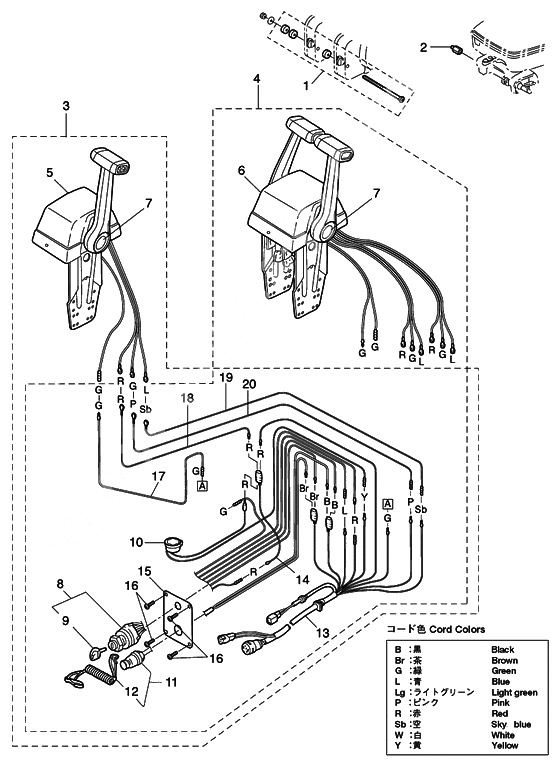

Optional parts (3) для Tohatsu MD115A2 - 2014 года выпуска
-
№АртикулНазвание
-
13A3-81301-0 Twin Remote Control Box Kit
FOR TWIN OUTBOARDSTwin Remote Control Box Kit
FOR TWIN OUTBOARDS -
2353-84904-0 Spacer Drag LinkSpacer Drag Link
-
33T5-84490-2 Binnacle mount control box kit single 50/70/90 tldi(old style)
FOR SINGLEBinnacle mount control box kit single 50/70/90 tldi(old style)
FOR SINGLE -
3T5-84490-0 Binnacle mount control box kit single 50/70/90 tldi(old style)Binnacle mount control box kit single 50/70/90 tldi(old style)
-
43T5-84540-2 Binnacle mount control box kit dual 50/70/90 tldi
FOR TWINBinnacle mount control box kit dual 50/70/90 tldi
FOR TWIN -
3T5-84540-0 Binnacle mount control box kit dual 50/70/90 tldiBinnacle mount control box kit dual 50/70/90 tldi
-
53T5-84480-1 Binnacle mount control box kit single 50/70/90 tldi(old style)
FOR SINGLEBinnacle mount control box kit single 50/70/90 tldi(old style)
FOR SINGLE -
3T5-84490-0 Binnacle mount control box kit single 50/70/90 tldi(old style)Binnacle mount control box kit single 50/70/90 tldi(old style)
-
63T5-84520-1 Binnacle mount control box kit dual 50/70/90 tldi
FOR TWINBinnacle mount control box kit dual 50/70/90 tldi
FOR TWIN -
3T5-84540-0 Binnacle mount control box kit dual 50/70/90 tldiBinnacle mount control box kit dual 50/70/90 tldi
-
73Z5-84462-0 Decal (tohatsu) not for sale
FOR SINGLEDecal (tohatsu) not for sale
FOR SINGLE -
8353-76020-3 Main Switch Ass'y
SINGLE X1 TWIN X2Main Switch Ass'y
SINGLE X1 TWIN X2 -
93F3-76217-0 Key, main switchKey, main switch
-
93F3-76218-0 Key, Main Switch (Earmark)Key, Main Switch (Earmark)
-
93F3-76219-0 Key, Main Switch (Earmark)Key, Main Switch (Earmark)
-
103C8-76171-0 Over-heat Buzzer
SINGLE X1 TWIN X2Over-heat Buzzer
SINGLE X1 TWIN X2 -
113A3-06830-0 Emergency Stop Switch B Ass'y
SINGLE X1 TWIN X2Emergency Stop Switch B Ass'y
SINGLE X1 TWIN X2 -
12353-06821-0 Lock, lanyard stop switch
SINGLE X1 TWIN X2Lock, lanyard stop switch
SINGLE X1 TWIN X2 -
133T5-76115-1 Cord assy b (l=6200mm)
SINGLE X1 TWIN X2Cord assy b (l=6200mm)
SINGLE X1 TWIN X2 -
14353-72546-0 Assist Cord(Red)
SINGLE X1 TWIN X2Assist Cord(Red)
SINGLE X1 TWIN X2 -
153T5-76201-0 Panel Main Switch
SINGLE X1 TWIN X2Panel Main Switch
SINGLE X1 TWIN X2 -
16921146-4516 Stud Bolt
SINGLE X4 TWIN X8Stud Bolt
SINGLE X4 TWIN X8 -
173C7-84471-1 Cord,Neutral Switch,Green
GREEN / SINGLE X1 TWIN X2Cord,Neutral Switch,Green
GREEN / SINGLE X1 TWIN X2 -
183C7-84475-0 Cord,ptt Switch(red)
RED / SINGLE X1 TWIN X2Cord,ptt Switch(red)
RED / SINGLE X1 TWIN X2 -
193C7-84476-0 Cord,ptt Switch(sky-blue)
SKY BLUE / SINGLE X1 TWIN X2Cord,ptt Switch(sky-blue)
SKY BLUE / SINGLE X1 TWIN X2 -
203C7-84477-0 Cord PTT Switch,Pink
PINK / SINGLE X1 TWIN X2Cord PTT Switch,Pink
PINK / SINGLE X1 TWIN X2
