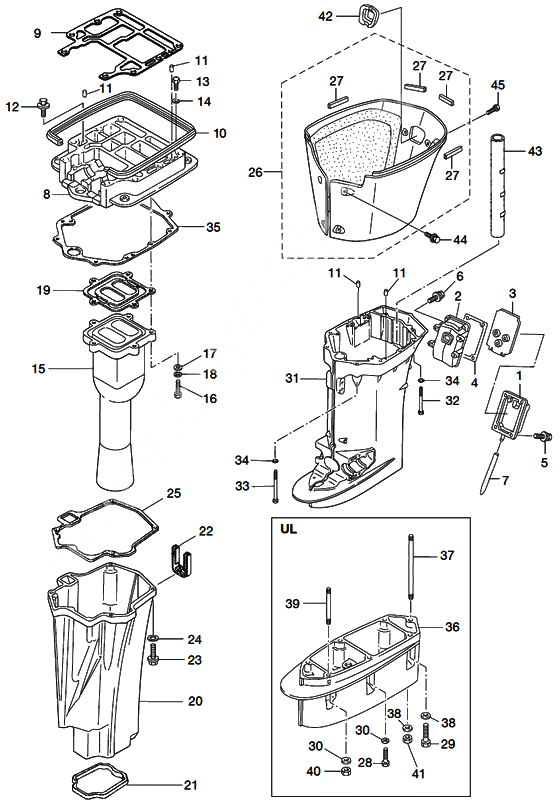

Drive shaft housing для Tohatsu MD115A2 - 2014 года выпуска
-
№АртикулНазвание
-
13T1Q61245-0 Cover idle exhaust passage (amb)Cover idle exhaust passage (amb)
-
23T1Q61241-0 Idle exhaust passage (amb)Idle exhaust passage (amb)
-
33T1-61242-0 Separation idle exhaust passageSeparation idle exhaust passage
-
43T1-61244-0 Gasket passage coverGasket passage cover
-
59101E3-5620 Bolt & washer
IDLE EXHAUST / PASSAGE COVERBolt & washer
IDLE EXHAUST / PASSAGE COVER -
69101E3-5635 Bolt & washer
IDLE EXHAUST PASSAGEBolt & washer
IDLE EXHAUST PASSAGE -
73T1-61097-0 Water outlet hoseWater outlet hose
-
83C7Q01301-1 Engine baseEngine base
-
93C7-01303-5 Gasket engine baseGasket engine base
-
103B7-67116-0 Seal Rubber, Lower CoverSeal Rubber, Lower Cover
-
11345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
12910103-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
133C7-01312-0 Bolt, 8-50Bolt, 8-50
-
14940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
153T1-02311-0 Exhaust PipeExhaust Pipe
-
169101F4-0835 BoltBolt
-
916114-0835 BoltBolt
-
17940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
18941303-0800 Spring WasherSpring Washer
-
193C7-02312-2 Gasket exhaust pipeGasket exhaust pipe
-
203D8-61180-0 Exhaust HousingExhaust Housing
-
213B7-61182-1 Grommet exhaust housingGrommet exhaust housing
-
223B7-61207-0 Grommet, Idle PortGrommet, Idle Port
-
23910103-0830 New partNew part
-
24940203-0800 WasherWasher
-
253B7-61181-2 GasketGasket
-
263T1Q61225-1 Apron assy (amb)Apron assy (amb)
-
3T1Q61225-0 Apron assy (amb)Apron assy (amb)
-
273T1-61213-0 Apron sealApron seal
-
283T1-60001-1 Bolt 8-35
FOR TRANSOM ULBolt 8-35
FOR TRANSOM UL -
293B7-60001-5 Bolt
FOR TRANSOM ULBolt
FOR TRANSOM UL -
309401E3-0800 Washer
FOR TRANSOM ULWasher
FOR TRANSOM UL -
940103-0800 WasherWasher
-
313T1Q61192-0 Drive shaft housing (l) d115a2Drive shaft housing (l) d115a2
-
323C7-61017-2 Bolt,10-107Bolt,10-107
-
333C7-61018-2 Bolt 10-120Bolt 10-120
-
3C7-61018-1 Bolt 10-120Bolt 10-120
-
349401E3-1000 WasherWasher
-
353C7-61012-2 Gasket drive shaft housingGasket drive shaft housing
-
363B7Q61110-0 Extension housing ul (amb)
FOR TRANSOM ULExtension housing ul (amb)
FOR TRANSOM UL -
373B7-61112-1 Stud Bolt
FOR TRANSOM ULStud Bolt
FOR TRANSOM UL -
3B7-61112-0 Stud BoltStud Bolt
-
389402E3-1000 Washer
FOR TRANSOM ULWasher
FOR TRANSOM UL -
399153E3-0825 Stud Bolt
FOR TRANSOM ULStud Bolt
FOR TRANSOM UL -
40930103-0800 Nut
FOR TRANSOM ULNut
FOR TRANSOM UL -
413B7-61114-0 Nut
FOR TRANSOM ULNut
FOR TRANSOM UL -
423T1-61212-0 Apron grommetApron grommet
-
433B7-61186-0 Reverse Gas PassageReverse Gas Passage
-
449101E3-5612 Bolt & washerBolt & washer
-
459101E3-5616 Bolt & washerBolt & washer
