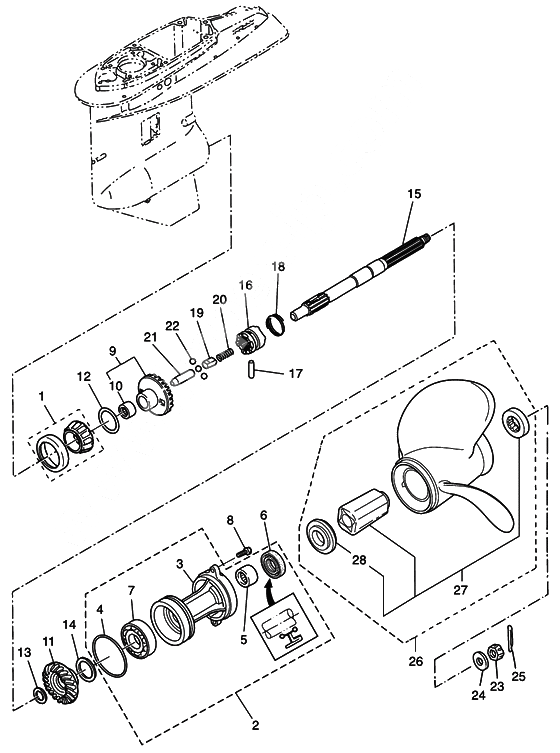

Gear case (propeller shaft) для Tohatsu MD115A2 - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    3C7-60215-0 Bearing, 30209
    Bearing, 30209
  • 2
    3B7Q87323-1 Propeller shaft housing assy (amb)
    Propeller shaft housing assy (amb)
  • 3
    3B7Q60101-1 Housing propeller shaft (amb)
    Housing propeller shaft (amb)
  • 4
    3B7-60103-0 O-Ring
    O-Ring
  • 5
    3B7-60211-0 Needle Bearing, 30-40-30
    Needle Bearing, 30-40-30
  • 6
    3B7-60111-0 Oil seal, 30-50-12
    Oil seal, 30-50-12
  • 7
    9601-0-6208 Ball bearing, 6208
    Ball bearing, 6208
  • 8
    3C7-60108-2 Bolt 8-30 precoated
    Bolt 8-30 precoated
  • 9
    3C7-64010-0 Bevel Gear A Ass'y
    Bevel Gear A Ass'y
  • 10
    3B7-64011-0 Needle Bearing, 25-32-26
    Needle Bearing, 25-32-26
  • 11
    3T1-64093-0 Bevel gear c (5 dog) reverse
    Bevel gear c (5 dog) reverse
  • 12
    3B7-64015-0 Shim, 47-57-0.15
    Shim, 47-57-0.15
  • 12
    3B7-64016-0 Shim, 47-57-0.1
    Shim, 47-57-0.1
  • 13
    3B7-64032-0 Washer, t=3.2
    Washer, t=3.2
  • 13
    3B7-64034-0 Washer, t=3.0
    Washer, t=3.0
  • 13
    3B7-64035-0 Washer, t=3.0
    Washer, t=3.0
  • 14
    3B7-64036-0 Shim , 42-50-0.15
    Shim , 42-50-0.15
  • 14
    3B7-64037-0 Shim, 42-50-0.1
    Shim, 42-50-0.1
  • 15
    3B7-64211-0 Propeller Shaft
    Propeller Shaft
  • 16
    3T1-64215-2 Clutch
    Clutch
  • 17
    3B7-64218-0 Clutch Pin
    Clutch Pin
  • 18
    3B7-64219-1 Snap, Clutch Pin
    Snap, Clutch Pin
  • 19
    3T1-64222-0 Spring retainer l=30,5
    Spring retainer l=30,5
  • 20
    346-64221-0 Spring Clutch
    Spring Clutch
  • 21
    3T1-64223-0 Push Rod
    Push Rod
  • 22
    3T1-64224-0 Ball
    Ball
  • 23
    353-64121-0 Nut Propeller
    Nut Propeller
  • 24
    345-64124-0 Washer
    Washer
  • 25
    951503-0325 Split Pin
    Split Pin
  • 26
    3HKB64518-0 Propeller assy 9 (3 x 14 x 9.0)"
    OPT 3 X 356 X 229
    Propeller assy 9 (3 x 14 x 9.0)"
    OPT 3 X 356 X 229
  • 26
    3HKB64523-0 Propeller assy 11 (3 x 14 x 10.98)"
    OPT 3 X 356 X 279
    Propeller assy 11 (3 x 14 x 10.98)"
    OPT 3 X 356 X 279
  • 26
    3HKB64527-0 Propeller assy 13 (3 x 13.75 x 12.99)"
    OPT 3 X 349 X 330
    Propeller assy 13 (3 x 13.75 x 12.99)"
    OPT 3 X 349 X 330
  • 26
    3HKB64532-0 Propeller assy 15 (3 x 13.5 x 15.0)"
    OPT 3 X 343 X 381
    Propeller assy 15 (3 x 13.5 x 15.0)"
    OPT 3 X 343 X 381
  • 26
    3HKB64536-0 Propeller assy 17 (3 x 13.25 x 17.0)"
    OPT 3 X 337 X 432
    Propeller assy 17 (3 x 13.25 x 17.0)"
    OPT 3 X 337 X 432
  • 26
    3HKB64541-0 Propeller assy 19 (3 x 13.19 x 19.0)"
    OPT 3 X 335 X 483
    Propeller assy 19 (3 x 13.19 x 19.0)"
    OPT 3 X 335 X 483
  • 26
    3HKB64545-0 Propeller assy 21 (3 x 13.2 x 21.0)"
    OPT 3 X 335 X 533
    Propeller assy 21 (3 x 13.2 x 21.0)"
    OPT 3 X 335 X 533
  • 27
    3HK-64238-0 Propeller Hub Kit
    Propeller Hub Kit
  • 28
    3HK-64235-0 Forward thrust washer
    Forward thrust washer
