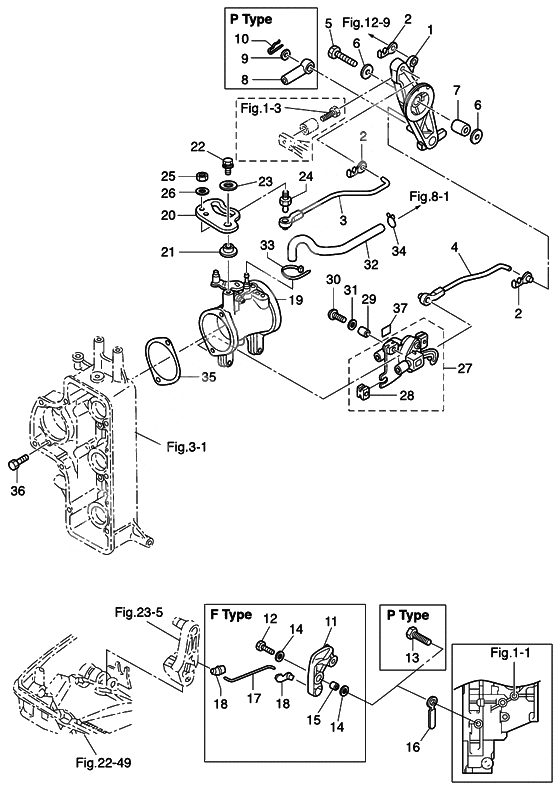

Throttle для Tohatsu MD50B2 - 2013 года выпуска`
-
№АртикулНазвание
-
13C8-63711-1 Advancer ArmAdvancer Arm
-
23C8-63733-0 Rod Snap 5-3Rod Snap 5-3
-
33T5-63702-1 Throttle link rodThrottle link rod
-
43T5-10109-1 Tps linkTps link
-
3T5-10109-0 Tps linkTps link
-
5910103-0635 BoltBolt
-
6346-67115-0 WasherWasher
-
73C8-63732-0 Collar 6.2-12-17Collar 6.2-12-17
-
83B7-83715-2 Cable Joint
FOR EP TYPECable Joint
FOR EP TYPE -
93AA-83719-0 Washer
FOR EP TYPEWasher
FOR EP TYPE -
10951603-0800 R-Pin
FOR EP TYPER-Pin
FOR EP TYPE -
113C8-05213-0 Arm Throttle Stop
FOR EF TYPEArm Throttle Stop
FOR EF TYPE -
129101F4-0625 Bolt
FOR EF TYPEBolt
FOR EF TYPE -
910114-0625 BoltBolt
-
13910103-0610 Bolt
FOR EP TYPEBolt
FOR EP TYPE -
14940103-0600 Washer
FOR EF TYPEWasher
FOR EF TYPE -
15353-76079-0 Collar 6.2-9-9.3
FOR EF TYPECollar 6.2-9-9.3
FOR EF TYPE -
16398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
173C8-05221-0 S-link 3.5-56
FOR EF TYPES-link 3.5-56
FOR EF TYPE -
183C8-05223-0 Rod Snap B 3.5-4
FOR EF TYPERod Snap B 3.5-4
FOR EF TYPE -
193GF-10100-0 Throttle body assy
50PS / MARK 3GFThrottle body assy
50PS / MARK 3GF -
203T5-63718-0 Throttle CamThrottle Cam
-
213T5-63721-0 BushingBushing
-
22910103-6618 BoltBolt
-
23346-67115-0 WasherWasher
-
24346-05228-1 Ball JointBall Joint
-
25930203-0600 NutNut
-
26940103-0600 WasherWasher
-
273T5-10110-0 TPS Ass'y
THROTTLE POSITION SENSORTPS Ass'y
THROTTLE POSITION SENSOR -
283T5-10107-0 Mount RubberMount Rubber
-
293T5-10128-0 Collar, 4.2-6-10.5Collar, 4.2-6-10.5
-
30921503-6420 Stud BoltStud Bolt
-
313T5-10129-0 WasherWasher
-
3298AB-3-0310 Fuel pipe 3mm (1 ea.=1 meter)
V.S.T-THROTTLE BODY / 98AB-301000Fuel pipe 3mm (1 ea.=1 meter)
V.S.T-THROTTLE BODY / 98AB-301000 -
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
333T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
34338-01133-0 ClipClip
-
353T5-10104-0 Gasket, Throttle Body
THROTTLE BODYGasket, Throttle Body
THROTTLE BODY -
363T5-02241-0 Bolt, 6-25 PrecoatedBolt, 6-25 Precoated
-
373T5-72195-0 Lavel, TPSLavel, TPS
