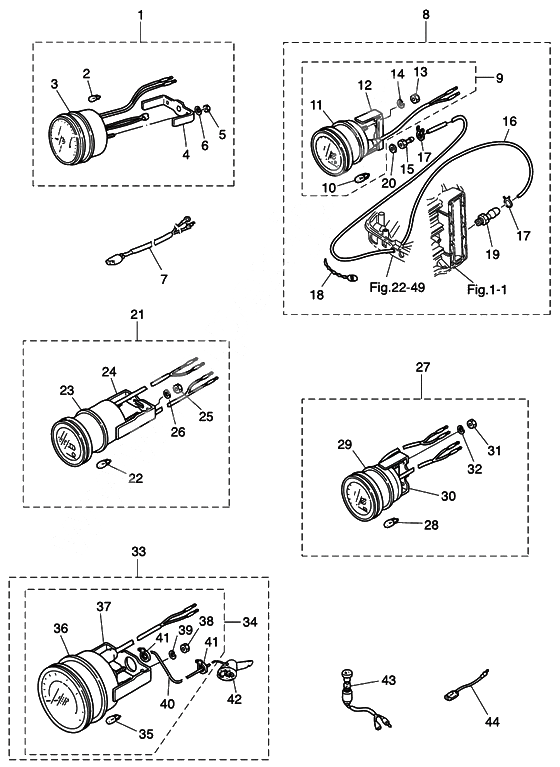

Optional parts (1) для Tohatsu MD50B2 - 2013 года выпуска
-
№АртикулНазвание
-
13GF-72647-0 Tachometer - tldi - black (ftc1918)Tachometer - tldi - black (ftc1918)
-
3GF-72647-1 Tachometer - tldi - black (ftc1918)Tachometer - tldi - black (ftc1918)
-
13GL-72647-0 Tachometer - tldi - white (ftc1912)Tachometer - tldi - white (ftc1912)
-
13B7-72530-2 Tachometer Ass'y
FOR JAPAN EF TYPETachometer Ass'y
FOR JAPAN EF TYPE -
23B7-72659-0 Bulb, Meter 12V-1.7W
FOR 3B7-72530-2Bulb, Meter 12V-1.7W
FOR 3B7-72530-2 -
33B7-72656-0 Damper, Meter
FOR 3B7-72530-2Damper, Meter
FOR 3B7-72530-2 -
43B7-72661-0 Plate, Fitting
FOR 3B7-72530-2Plate, Fitting
FOR 3B7-72530-2 -
5930103-0500 Nut
FOR 3B7-72530-2Nut
FOR 3B7-72530-2 -
6941303-0500 Spring Washer
FOR 3B7-72530-2Spring Washer
FOR 3B7-72530-2 -
73T5-72539-0 Lead Wire, Tachometer
FOR EF TYPELead Wire, Tachometer
FOR EF TYPE -
83GF-72598-0 Water pressure gauge - black (fop1124)Water pressure gauge - black (fop1124)
-
83GL-72598-0 Water pressure gauge - white (fop1128)Water pressure gauge - white (fop1128)
-
83E3-72527-0 Water pressure meter kit - nlaWater pressure meter kit - nla
-
93E0-72598-0 Water Pressure Meter Ass'y
FOR 3E3-72527-0Water Pressure Meter Ass'y
FOR 3E3-72527-0 -
103B7-72657-0 Bulb, Meter 12V-1.7W
FOR 3E3-72527-0Bulb, Meter 12V-1.7W
FOR 3E3-72527-0 -
113B7-72655-0 Damper, Meter
FOR 3E3-72527-0Damper, Meter
FOR 3E3-72527-0 -
123B7-72663-0 Plate, Fitting
FOR 3E3-72527-0Plate, Fitting
FOR 3E3-72527-0 -
13930203-0500 Nut
FOR 3E3-72527-0Nut
FOR 3E3-72527-0 -
14941303-0500 Spring Washer
FOR 3E3-72527-0Spring Washer
FOR 3E3-72527-0 -
153B7-72641-0 Nipple, Water Pressure Meter
FOR 3E3-72527-0Nipple, Water Pressure Meter
FOR 3E3-72527-0 -
1698AB50600-0 Fuel pipe 5mm (1 ea.=1 meter)
FOR 3E3-72527-0 / 98AB-501000 X6Fuel pipe 5mm (1 ea.=1 meter)
FOR 3E3-72527-0 / 98AB-501000 X6 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
17338-02215-0 Clip
FOR 3E3-72527-0Clip
FOR 3E3-72527-0 -
18336-76091-0 Band Battery Cord
FOR 3E3-72527-0Band Battery Cord
FOR 3E3-72527-0 -
19309-01136-0 Pulse Nipple
FOR 3E3-72527-0Pulse Nipple
FOR 3E3-72527-0 -
20121-33159-0 Gasket 2-8-1
FOR 3E3-72527-0Gasket 2-8-1
FOR 3E3-72527-0 -
213GF-72524-0 Hourmeter - digital 2in - black (fmh0214)Hourmeter - digital 2in - black (fmh0214)
-
213GL-72524-0 Hourmeter - digital 2in - white (fmh0213)Hourmeter - digital 2in - white (fmh0213)
-
213E0-72524-0 Hourmeter Ass'yHourmeter Ass'y
-
223B7-72657-0 Bulb, Meter 12V-1.7W
FOR 3E0-72524-0Bulb, Meter 12V-1.7W
FOR 3E0-72524-0 -
233B7-72655-0 Damper, Meter
FOR 3E0-72524-0Damper, Meter
FOR 3E0-72524-0 -
243B7-72664-0 Plate Fitting
FOR 3E0-72524-0Plate Fitting
FOR 3E0-72524-0 -
25930203-0400 Nut
FOR 3E0-72524-0Nut
FOR 3E0-72524-0 -
26941303-0400 Spring Washer
FOR 3E0-72524-0Spring Washer
FOR 3E0-72524-0 -
273GF-72529-0 Voltmeter - black (fvp7157)Voltmeter - black (fvp7157)
-
273GL-72529-0 Voltmeter - white (fvp7156)Voltmeter - white (fvp7156)
-
273E0-72529-0 Voltmeter Ass'yVoltmeter Ass'y
-
283B7-72657-0 Bulb, Meter 12V-1.7W
FOR 3E0-72529-0Bulb, Meter 12V-1.7W
FOR 3E0-72529-0 -
293B7-72655-0 Damper, Meter
FOR 3E0-72529-0Damper, Meter
FOR 3E0-72529-0 -
303B7-72662-0 Plate, Fitting
FOR 3E0-72529-0Plate, Fitting
FOR 3E0-72529-0 -
31930203-0400 Nut
FOR 3E0-72529-0Nut
FOR 3E0-72529-0 -
32941303-0400 Spring Washer
FOR 3E0-72529-0Spring Washer
FOR 3E0-72529-0 -
333GF-72672-0 Speedometer - mech. - black (fse9297)Speedometer - mech. - black (fse9297)
-
333GL-72672-0 Speedometer - mech. - white (fse9296)Speedometer - mech. - white (fse9296)
-
333E0-72522-0 Speedometer 50mph KitSpeedometer 50mph Kit
-
333E0-72644-0 Speedometer 75mph KitSpeedometer 75mph Kit
-
343E0-72648-0 Speedometer 50mph Kit B
FOR 3E0-72522-0 & 3E0-72644-0Speedometer 50mph Kit B
FOR 3E0-72522-0 & 3E0-72644-0 -
343E0-72649-0 Speedometer 75mph Kit B
FOR 3E0-72522-0 & 3E0-72644-0Speedometer 75mph Kit B
FOR 3E0-72522-0 & 3E0-72644-0 -
353B7-72659-0 Bulb, Meter 12V-1.7W
FOR 3E0-72522-0 & 3E0-72644-0Bulb, Meter 12V-1.7W
FOR 3E0-72522-0 & 3E0-72644-0 -
363B7-72656-0 Damper, Meter
FOR 3E0-72522-0 & 3E0-72644-0Damper, Meter
FOR 3E0-72522-0 & 3E0-72644-0 -
373B7-72661-0 Plate, Fitting
FOR 3E0-72522-0 & 3E0-72644-0Plate, Fitting
FOR 3E0-72522-0 & 3E0-72644-0 -
38930203-0500 Nut
FOR 3E0-72522-0 & 3E0-72644-0Nut
FOR 3E0-72522-0 & 3E0-72644-0 -
39941303-0500 Spring Washer
FOR 3E0-72522-0 & 3E0-72644-0Spring Washer
FOR 3E0-72522-0 & 3E0-72644-0 -
403B7-72650-0 Tube, Speedometer 6000mm
FOR 3E0-72522-0 & 3E0-72644-0Tube, Speedometer 6000mm
FOR 3E0-72522-0 & 3E0-72644-0 -
413B7-72651-0 Band, Speedometer
FOR 3E0-72522-0 & 3E0-72644-0Band, Speedometer
FOR 3E0-72522-0 & 3E0-72644-0 -
423B7-72643-0 Speedometer Sender
FOR 3E0-72522-0 & 3E0-72644-0Speedometer Sender
FOR 3E0-72522-0 & 3E0-72644-0 -
43353-72521-1 Switch Meter Lamp
FOR EP TYPESwitch Meter Lamp
FOR EP TYPE -
44353-72547-0 Assist Cord(blue)
FOR EP TYPEAssist Cord(blue)
FOR EP TYPE -
44353-72548-0 Assist Cord(black)
FOR EP TYPEAssist Cord(black)
FOR EP TYPE -
44353-72546-0 Assist Cord(Red)
FOR EP TYPEAssist Cord(Red)
FOR EP TYPE
