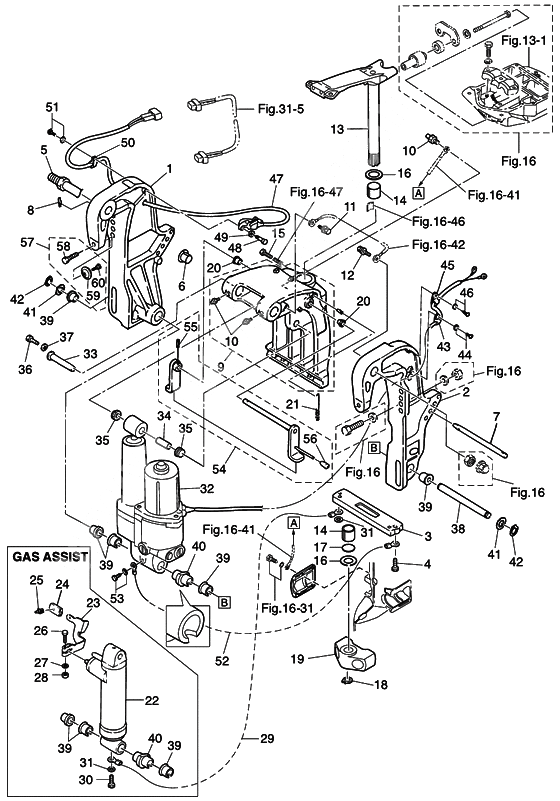

Bracket (2) power trim & tilt / gas assist для Tohatsu MD50B2 - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    3GFQ77211-0 Clamp bracket (ppt) right, md50b
    FOR PTT MODEL / STARBOARD SIDE
    Clamp bracket (ppt) right, md50b
    FOR PTT MODEL / STARBOARD SIDE
  • 1
    3GGQ77211-0 Clamp bracket (ppt) right, md40b
    FOR GAS ASSIST MODEL / STARBOARD SIDE
    Clamp bracket (ppt) right, md40b
    FOR GAS ASSIST MODEL / STARBOARD SIDE
  • 2
    3GFQ77212-0 Clamp bracket (ppt) left, md50b
    FOR PTT & GAS ASSIST MODEL / PORT SIDE
    Clamp bracket (ppt) left, md50b
    FOR PTT & GAS ASSIST MODEL / PORT SIDE
  • 3
    3C7-60218-2 Anode, Stern Bracket
    Anode, Stern Bracket
  • 4
    910103-6630 Bolt
    Bolt
  • 5
    3AD-62191-0 Swivel bracket bolt (ptt)
    BRACKET BOLT
    Swivel bracket bolt (ptt)
    BRACKET BOLT
  • 6
    3C8-77213-0 Bushing Bracket Bolt
    Bushing Bracket Bolt
  • 7
    3R0-77118-0 Thrust Rod
    Thrust Rod
  • 8
    951603-1000 R-Pin
    R-Pin
  • 9
    3Z7Q77208-3 Swivel bracket assy
    Swivel bracket assy
  • 10
    344-67177-1 Grease Nipple
    Grease Nipple
  • 11
    9101E3-5612 Bolt & washer
    SWIVEL BRACKET
    Bolt & washer
    SWIVEL BRACKET
  • 12
    9101E3-5612 Bolt & washer
    CLAMP BRACKET
    Bolt & washer
    CLAMP BRACKET
  • 13
    3GFQ62010-0 Steering shaft assy ptt (amb)
    Steering shaft assy ptt (amb)
  • 14
    353-62417-0 Bushing
    Bushing
  • 15
    9101E3-0830 Bolt
    Bolt
  • 910103-0830 Bolt
    Bolt
  • 16
    353-62423-1 Thrust Plate
    Thrust Plate
  • 17
    353-62415-0 O-Ring
    O-Ring
  • 18
    945103-2800 C-Ring
    C-Ring
  • 945127-2800 C-Ring
    C-Ring
  • 19
    3Z5Q61411-1 Mount bracket (amb)
    Mount bracket (amb)
  • 3Z5Q61411-0 Mount bracket (amb)
    Mount bracket (amb)
  • 20
    353-63207-0 Collar 10.2-12-12
    Collar 10.2-12-12
  • 21
    3R0-62473-0 Spring,Tilt Stopper
    Spring,Tilt Stopper
  • 23
    3R0-66311-0 Rever, Revers Lock
    FOR GAS ASSIST MODEL
    Rever, Revers Lock
    FOR GAS ASSIST MODEL
  • 24
    3AL-66333-0 Lock lever grip
    FOR GAS ASSIST MODEL
    Lock lever grip
    FOR GAS ASSIST MODEL
  • 25
    346-66334-0 Stopper
    FOR GAS ASSIST MODEL
    Stopper
    FOR GAS ASSIST MODEL
  • 26
    3V2-60001-0 Bolt 6-35 precoated
    FOR GAS ASSIST MODEL
    Bolt 6-35 precoated
    FOR GAS ASSIST MODEL
  • 27
    9401E3-0600 Washer
    FOR GAS ASSIST MODEL
    Washer
    FOR GAS ASSIST MODEL
  • 940113-0600 Washer
    Washer
  • 28
    9301E3-0600 Nut
    FOR GAS ASSIST MODEL
    Nut
    FOR GAS ASSIST MODEL
  • 930103-0600 Nut
    Nut
  • 29
    3C8-62396-1 Ground Wire
    GAS ASSIST-SWIVEL B/K / FOR GAS ASSIST MODEL
    Ground Wire
    GAS ASSIST-SWIVEL B/K / FOR GAS ASSIST MODEL
  • 30
    910103-5608 Bolt
    GROUND EARTH / FOR GAS ASSIST MODEL
    Bolt
    GROUND EARTH / FOR GAS ASSIST MODEL
  • 31
    940103-0600 Washer
    GROUND EARTH / FOR GAS ASSIST MODEL
    Washer
    GROUND EARTH / FOR GAS ASSIST MODEL
  • 32
    3Z5-77150-1 Power trim & tilt assy d40/50 (amb)
    FOR PTT MODEL
    Power trim & tilt assy d40/50 (amb)
    FOR PTT MODEL
  • 33
    3R0-77071-1 Cylinder pin upper
    Cylinder pin upper
  • 3KY-77071-0 Cylinder pin upper
    Cylinder pin upper
  • 34
    3R0-77075-0 Bushing
    Bushing
  • 35
    3R0-77076-0 Bushing
    Bushing
  • 36
    9101E3-0612 Bolt
    Bolt
  • 910103-0612 Bolt
    Bolt
  • 37
    345-05122-1 Washer rachet
    Washer rachet
  • 38
    3R0-77101-1 Cylinder pin lower
    Cylinder pin lower
  • 3KY-77101-0 Cylinder pin lower
    Cylinder pin lower
  • 39
    3C8-77076-1 New part
    New part
  • 40
    3Z5-77103-0 Bushing
    Bushing
  • 41
    3R0-77112-0 Washer
    Washer
  • 42
    945103-1800 C-Ring
    C-Ring
  • 43
    336-06973-0 Clamp Lead Wire
    FOR PTT MODEL
    Clamp Lead Wire
    FOR PTT MODEL
  • 44
    921503-5612 Stud Bolt
    FOR PTT MODEL
    Stud Bolt
    FOR PTT MODEL
  • 45
    345-06915-0 Clamp 6.5-14
    FOR PTT MODEL
    Clamp 6.5-14
    FOR PTT MODEL
  • 46
    921503-5612 Stud Bolt
    FOR PTT MODEL
    Stud Bolt
    FOR PTT MODEL
  • 47
    3Z4-72574-0 Trim sensor (2-wire)
    FOR EPTO MODEL
    Trim sensor (2-wire)
    FOR EPTO MODEL
  • 48
    910103-0620 Bolt
    FOR EPTO MODEL
    Bolt
    FOR EPTO MODEL
  • 49
    3C8-66308-0 New part
    FOR EPTO MODEL
    New part
    FOR EPTO MODEL
  • 50
    336-06973-0 Clamp Lead Wire
    FOR EPTO MODEL
    Clamp Lead Wire
    FOR EPTO MODEL
  • 51
    921503-5612 Stud Bolt
    FOR EPTO MODEL
    Stud Bolt
    FOR EPTO MODEL
  • 52
    398-62396-1 Ground Wire
    PTT ASSY-ANODE / FOR PTT MODEL
    Ground Wire
    PTT ASSY-ANODE / FOR PTT MODEL
  • 53
    9101E3-5612 Bolt & washer
    FOR PTT MODEL
    Bolt & washer
    FOR PTT MODEL
  • 54
    3GF-62466-1 Tilt stopper (ptt type)
    FOR PTT MODEL
    Tilt stopper (ptt type)
    FOR PTT MODEL
  • 54
    3AC-62466-1 Tilt stopper (gas assist)
    FOR GAS ASSIST MODEL
    Tilt stopper (gas assist)
    FOR GAS ASSIST MODEL
  • 55
    951403-3516 New part
    New part
  • 56
    369-62433-1 Grip Tilt Stopper
    Grip Tilt Stopper
  • 57
    3C8-77217-0 Clamp screw kit
    Clamp screw kit
  • 58
    3C8-77216-0 Clamp screw (ptt)
    Clamp screw (ptt)
  • 59
    332-62101-1 Pad clamp screw (threaded style)
    Pad clamp screw (threaded style)
  • 60
    3C8-62107-0 Shoulder bolt
    Shoulder bolt
