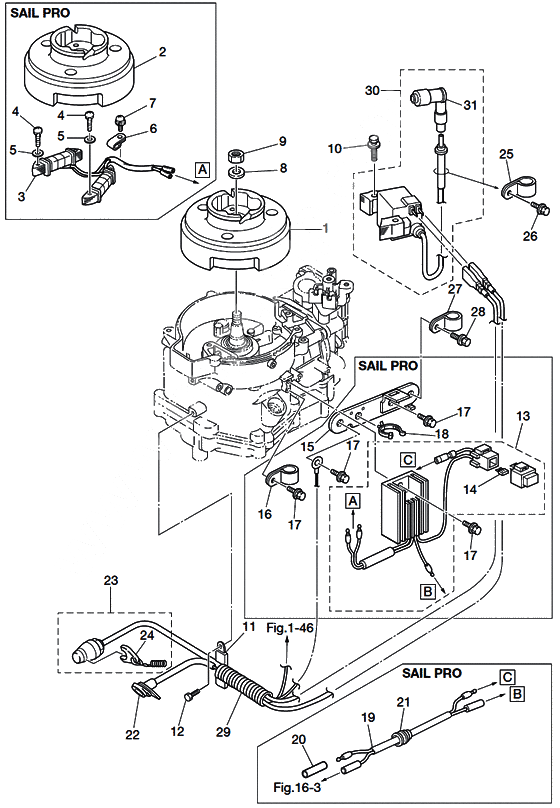

Magneto для Tohatsu MFS6C - 2012 года выпуска`
-
№АртикулНазвание
-
13AS-06009-0 Flywheel w/o alternator b models
STDFlywheel w/o alternator b models
STD -
23AS-06001-0 Flywheel cup (mf54) for use w/alternator
FOR SAIL PRO / USE ALTERNATERFlywheel cup (mf54) for use w/alternator
FOR SAIL PRO / USE ALTERNATER -
33GR-06023-0 Alternator assy. f5/6c
FOR SAIL PRO / 12V60WAlternator assy. f5/6c
FOR SAIL PRO / 12V60W -
4921503-0525 Stud Bolt
FOR SAIL PROStud Bolt
FOR SAIL PRO -
5940103-0500 Washer
FOR SAIL PROWasher
FOR SAIL PRO -
6369-06915-0 Clamp
FOR SAIL PROClamp
FOR SAIL PRO -
7921521-6408 Stud Bolt
FOR SAIL PROStud Bolt
FOR SAIL PRO -
8940121-1200 WasherWasher
-
9369-00132-0 Nut MagnetoNut Magneto
-
10910103-5630 BoltBolt
-
11309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
12910103-5612 BoltBolt
-
133GR-76060-0 Rectifier complete
FOR SAIL PRORectifier complete
FOR SAIL PRO -
143GR-76246-0 Fuse 10a
FOR SAIL PROFuse 10a
FOR SAIL PRO -
153GR-06900-0 Electric bracket assy
FOR SAIL PROElectric bracket assy
FOR SAIL PRO -
16345-06915-0 Clamp 6.5-14
FOR SAIL PROClamp 6.5-14
FOR SAIL PRO -
17910103-5614 Bolt
FOR SAIL PROBolt
FOR SAIL PRO -
183BJ-84398-0 Lead wire band 135
FOR SAIL PROLead wire band 135
FOR SAIL PRO -
19399-76120-0 Battery cable
FOR SAIL PROBattery cable
FOR SAIL PRO -
203H6-76037-0 Cable terminal plug
FOR SAIL PROCable terminal plug
FOR SAIL PRO -
21345-66226-0 Grommet, 17-3
FOR SAIL PROGrommet, 17-3
FOR SAIL PRO -
223GR-71040-0 Warning lamp assyWarning lamp assy
-
233GR-06870-0 Stop switch assyStop switch assy
-
24353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
25345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
26910103-5612 BoltBolt
-
27345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
28910103-5612 BoltBolt
-
293H6-06133-0 Protector,wire HarnessProtector,wire Harness
-
303GR-06041-0 Igniter w/resistance cap c modelsIgniter w/resistance cap c models
-
313H6-06999-0 Plug Cap (Registance)Plug Cap (Registance)
