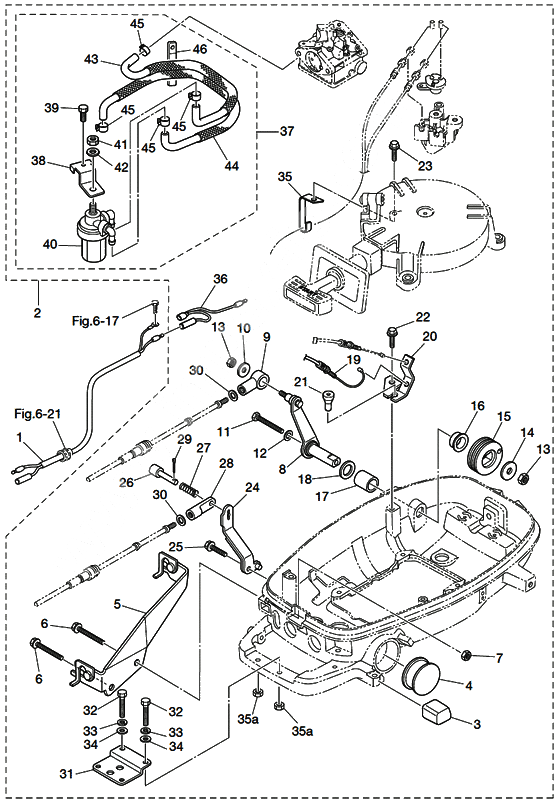

Optional parts (1) accessories (remote control) для Tohatsu MFS6C - 2012 года выпуска`
-
№АртикулНазвание
-
1369-83846-0 R.c.stop cord(2.0m)R.c.stop cord(2.0m)
-
1369-83848-0 R.c. stop cord 3.2mR.c. stop cord 3.2m
-
1369-83853-0 R.c. stop cord 3.9mR.c. stop cord 3.9m
-
1369-83858-0 R.c. Stop Cord 5.9mR.c. Stop Cord 5.9m
-
23GR-83880-0 Src parts kit-fs4/5/6cSrc parts kit-fs4/5/6c
-
33JK-67161-0 GrommetGrommet
-
43H6-67161-0 Grommet. 43-23Grommet. 43-23
-
53GR-83820-0 Cable clip assyCable clip assy
-
6910103-6640 BoltBolt
-
7930103-0600 NutNut
-
83GR-83910-0 Throttle leverThrottle lever
-
93R0-83715-0 Cable JointCable Joint
-
10346-67115-0 WasherWasher
-
11910103-0660 BoltBolt
-
12941303-0600 New partNew part
-
13930403-0600 Nylon NutNylon Nut
-
14345-05122-1 Washer rachetWasher rachet
-
153JD-63611-0 Throttle drumThrottle drum
-
163H6-63510-0 BushingBushing
-
17369-67105-0 BushingBushing
-
18338-67147-0 New partNew part
-
193GR-83873-0 Throttle wire (remote control)Throttle wire (remote control)
-
203GR-63508-0 Throttle wire bracketThrottle wire bracket
-
213GR-04317-0 GrommetGrommet
-
22910103-5614 BoltBolt
-
233AD-06864-0 Bolt 6-25 pre-coatedBolt 6-25 pre-coated
-
243GR-66129-0 Shift lever (remote control)Shift lever (remote control)
-
253V1-60108-0 Bolt,6-16 Pre CoatedBolt,6-16 Pre Coated
-
26332-83728-0 Lock PinLock Pin
-
27332-83729-0 Spring WasherSpring Washer
-
28369-83715-1 Sleeve B GuideSleeve B Guide
-
29951403-0220 Spring WasherSpring Washer
-
30332-83725-0 WasherWasher
-
31369-83830-2 Plate, Traring HookPlate, Traring Hook
-
32910103-0830 New partNew part
-
33941303-0800 Spring WasherSpring Washer
-
34940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
353JK-63505-0 Cable holderCable holder
-
35A930403-0800 Nylon NutNylon Nut
-
363AS-83883-0 Separate CordSeparate Cord
-
373GR-02217-0 Fuel filter kit f4/5/6cFuel filter kit f4/5/6c
-
383GR-63737-0 StayStay
-
39910103-5610 BoltBolt
-
40346-02230-0 Fuel Filter Ass'yFuel Filter Ass'y
-
41930103-0800 NutNut
-
42940121-0800 WasherWasher
-
433LE-02160-0 Fuel hose w/protector
LOW PERMEATION PARTS / EPA-KRI-15G USAFuel hose w/protector
LOW PERMEATION PARTS / EPA-KRI-15G USA -
443JD-02160-0 Fuel hose w/protector
LOW PERMEATION PARTS / EPA-KRI-15G USAFuel hose w/protector
LOW PERMEATION PARTS / EPA-KRI-15G USA -
453AB-35143-0 Clip @ 9.5Clip @ 9.5
-
463T4-06972-1 ClampClamp
-
3T4-06972-0 ClampClamp
