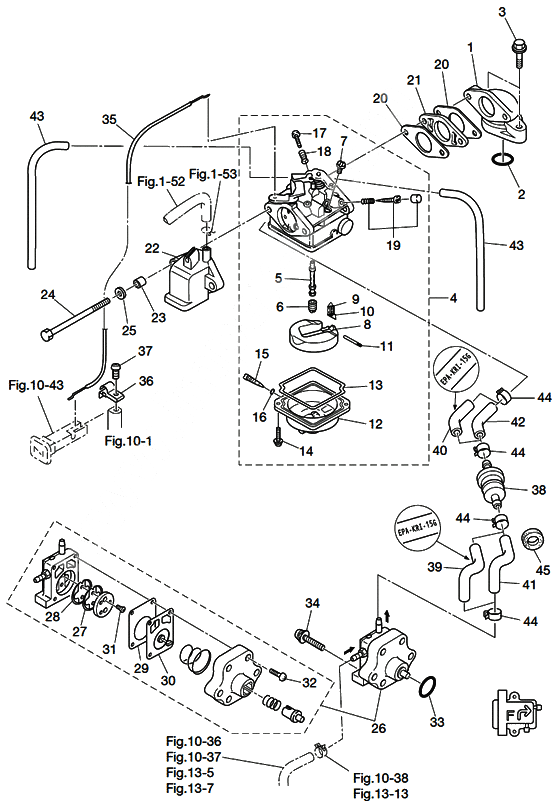

Carburetor & fuel pump для Tohatsu MFS6C - 2012 года выпуска`
-
№АртикулНазвание
-
23H6-02104-0 O-Ring
O-RINGO-Ring
O-RING -
3910124-5625 BoltBolt
-
43JE-03200-0 Carburetor assy mfs/nsf6c
6PS 3JEACarburetor assy mfs/nsf6c
6PS 3JEA -
53JE-03252-0 Main nozzle f6c
6PSMain nozzle f6c
6PS -
63GR-04470-0 Main jet #70
6PSMain jet #70
6PS -
73R1-03254-0 Pilot Jet #38
4/5/6PSPilot Jet #38
4/5/6PS -
83H6-03231-0 FloatFloat
-
93H6-03240-0 Float ValveFloat Valve
-
103H6-03244-0 ClipClip
-
113H6-03232-0 Aym Pin, FloatAym Pin, Float
-
123H6-03221-0 Float ChamberFloat Chamber
-
133H6-03222-0 Gasket,float ChamberGasket,float Chamber
-
14922503-6412 Stud BoltStud Bolt
-
153H6-03292-0 Drain ScrewDrain Screw
-
163H6-03293-0 O-ring,drain ScrewO-ring,drain Screw
-
173H6-03265-0 Stop ScrewStop Screw
-
183H6-03267-0 Spring,stop ScrewSpring,stop Screw
-
193AS-03266-0 Pilot screw set
5/6PSPilot screw set
5/6PS -
203H6-02011-0 Gasket, carburetorGasket, carburetor
-
213H6-03952-1 InsulatorInsulator
-
223GR-02411-0 Air SilencerAir Silencer
-
3GR-02409-0 Air SilencerAir Silencer
-
233A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
249164F1-0685 BoltBolt
-
25940103-0600 WasherWasher
-
263H6-04000-7 Fuel pump 4/5/6/8/9.8 4-str only
MARK FFuel pump 4/5/6/8/9.8 4-str only
MARK F -
273H6-04044-0 Check Valve
BLACKCheck Valve
BLACK -
283H6-04014-1 Check Valve
WHITECheck Valve
WHITE -
293H6-04028-0 O-RingO-Ring
-
303H6-04005-0 DiaphragmDiaphragm
-
31921603-0308 Stud BoltStud Bolt
-
32922503-6418 Stud BoltStud Bolt
-
333H6-07422-0 New partNew part
-
34921503-7630 Stud BoltStud Bolt
-
353GR-67197-0 Choke wireChoke wire
-
363JD-63505-0 Cable holderCable holder
-
37921503-0510 Stud BoltStud Bolt
-
38369-02230-0 Фильтр топливныйФильтр топливный
-
393GS-02207-0 Hose low permeation
LOW PERMEATION PARTS / EPA-KRI-15G USAHose low permeation
LOW PERMEATION PARTS / EPA-KRI-15G USA -
403JJ-02130-0 Hose low permeation
LOW PERMEATION PARTS / EPA-KRI-15G USAHose low permeation
LOW PERMEATION PARTS / EPA-KRI-15G USA -
413GR-02204-0 Fuel hose low permeation
STD / FUEL PUMP-FUEL FILTERFuel hose low permeation
STD / FUEL PUMP-FUEL FILTER -
423JJ-02204-0 Fuel hose low permeation
STD / FUEL FILTER-CARBURETORFuel hose low permeation
STD / FUEL FILTER-CARBURETOR -
4398AB-3-0270 Fuel pipe 3mm (1 ea.=1 meter)
98AB-301000Fuel pipe 3mm (1 ea.=1 meter)
98AB-301000 -
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
443AB-35143-0 Clip @ 9.5Clip @ 9.5
-
453B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
