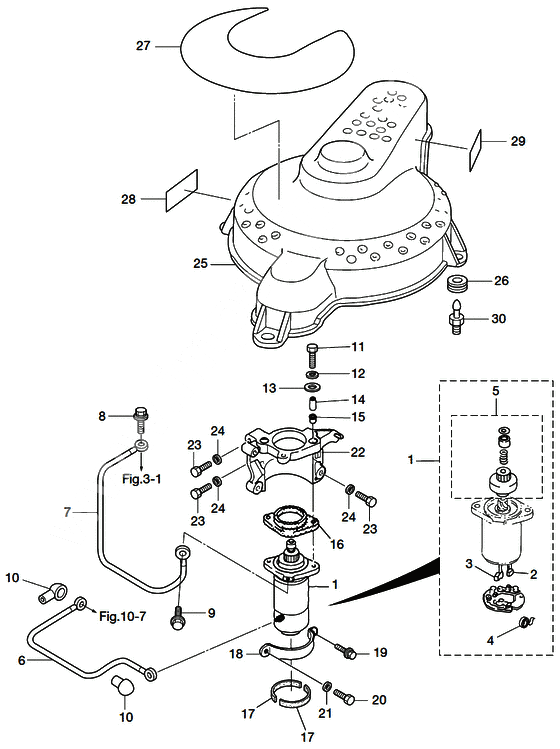

Electric parts (starter motor) для Tohatsu MD115A2 - 2012 года выпуска`
-
№АртикулНазвание
-
1353-76010-4 Starter Motor Ass'yStarter Motor Ass'y
-
2353-76012-3 Brush (+)Brush (+)
-
3353-76013-3 Brush (-)Brush (-)
-
4353-76017-1 Brush SpringBrush Spring
-
5353-76015-1 Pinion Ass'yPinion Ass'y
-
63U1-76141-0 Starter cable (l=400mm)Starter cable (l=400mm)
-
73T1-76141-0 Starter cord (l=300mm)Starter cord (l=300mm)
-
8910103-5612 BoltBolt
-
9910103-5816 BoltBolt
-
103A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
11910103-0840 BoltBolt
-
12941303-0800 Spring WasherSpring Washer
-
133B7-63730-0 WasherWasher
-
143C7-76003-1 Spacer 8.4-12-21.5Spacer 8.4-12-21.5
-
3C7-76003-0 Spacer 8.4-12-21.5Spacer 8.4-12-21.5
-
153C7-76004-0 Mount Rubber AMount Rubber A
-
163C7-76005-0 Mount Rubber BMount Rubber B
-
173C7-76007-1 Rubber Starter MotorRubber Starter Motor
-
18353B76009-2 Bank starter motorBank starter motor
-
199101E3-5840 Bolt & washerBolt & washer
-
20910103-0820 BoltBolt
-
21940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
223T1B05101-0 Bracket starter motorBracket starter motor
-
239161F4-0845 BoltBolt
-
916114-0845 BoltBolt
-
24941322-0800 Spring WasherSpring Washer
-
253T1-06301-0 Cover ring gearCover ring gear
-
263T1-67005-0 Grommet 16-2.5Grommet 16-2.5
-
273T1-72181-0 Caution decalCaution decal
-
283Y9-72194-0 Label FuseLabel Fuse
-
293Y7-72026-0 Spark Plug DecalSpark Plug Decal
-
301E0-36056-0 Ring gear cover hook
CYLINDER AIR CHAMBER / STARTER BRACKETRing gear cover hook
CYLINDER AIR CHAMBER / STARTER BRACKET
