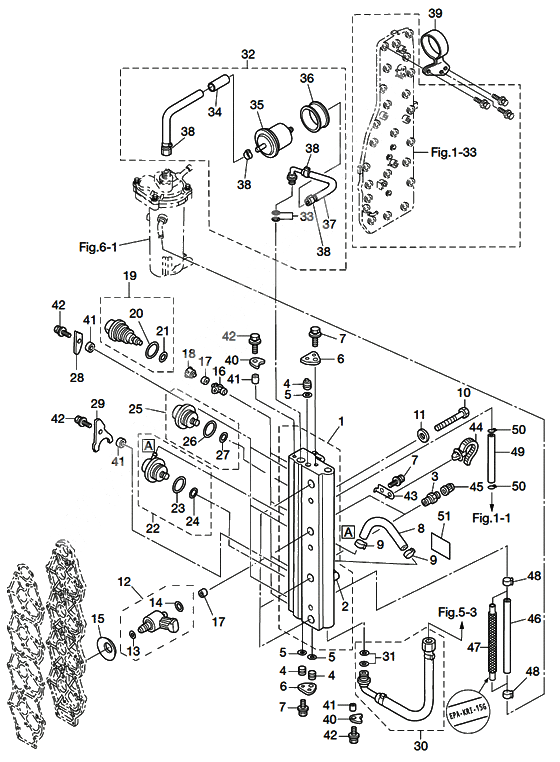

Air rail для Tohatsu MD115A2 - 2012 года выпуска`
-
№АртикулНазвание
-
13T1-10080-0 Air railAir rail
-
23T5-10166-0 L-NippleL-Nipple
-
33T5-10098-0 Valve Ass'yValve Ass'y
-
43T5-10167-0 Plug , 10.5Plug , 10.5
-
53T5-10164-1 O-ring,6.8-1.9O-ring,6.8-1.9
-
63T5-10165-0 Stopper, PlugStopper, Plug
-
7910103-6612 BoltBolt
-
898AY-45-115 Hose
FUEL REGULATOR / AIR RAILHose
FUEL REGULATOR / AIR RAIL -
98AY-4-0115 HoseHose
-
93T5-10091-0 Clamp, 21/32Clamp, 21/32
-
10910103-0865 BoltBolt
-
11940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
123GF-10310-0 AIR INJECTOR COMPLETEAIR INJECTOR COMPLETE
-
133T5-10317-0 O-RingO-Ring
-
143Y9-10311-1 O-ring 2.4-9.5 d40/50/70/90b/115a2
BROWNO-ring 2.4-9.5 d40/50/70/90b/115a2
BROWN -
153Y9-10312-0 Set Piece, Air InjectorSet Piece, Air Injector
-
163T5-10314-0 Inserting FuelB InjectorInserting FuelB Injector
-
173T5-10316-0 Seal, CompressionSeal, Compression
-
183T5-10315-0 Adapter, Fuel InjectorAdapter, Fuel Injector
-
193T1-10300-0 Fuel injector for d115a tldi
MARK 37001 / PINKFuel injector for d115a tldi
MARK 37001 / PINK -
203T5-10304-0 O-RingO-Ring
-
213T5-10303-0 O-RingO-Ring
-
223T5-10148-0 Regulator, FuelRegulator, Fuel
-
233T5-10095-0 O-RingO-Ring
-
243T5-10094-0 O-RingO-Ring
-
253GF-10090-0 Regulator air d40/50b2d75/90c2/115a2 (orange)Regulator air d40/50b2d75/90c2/115a2 (orange)
-
263T5-10095-0 O-RingO-Ring
-
273T5-10094-0 O-RingO-Ring
-
283T5-10302-0 Plate, Fuel InjectorPlate, Fuel Injector
-
293Y9-10302-0 Holding PlateHolding Plate
-
303T1-10088-0 Air hose
AIR COMPRESSOR / AIR RAILAir hose
AIR COMPRESSOR / AIR RAIL -
313T5-10162-0 O-RingO-Ring
-
323HK-10089-0 Fuel hose assy
FFP-AIR RAILFuel hose assy
FFP-AIR RAIL -
333T5-10162-0 O-RingO-Ring
-
343U1-06157-0 Protection tube (l=150mm)Protection tube (l=150mm)
-
353T5B10143-0 Fuel FilterFuel Filter
-
363T5-10145-0 Rubber, Fuel FilterRubber, Fuel Filter
-
373T1-06157-1 ProtectorProtector
-
383T5-10086-0 Clamp 21/32Clamp 21/32
-
393T1-10144-0 Fuel filter bandFuel filter band
-
403T5-10169-0 Plate, NipplePlate, Nipple
-
413T5-10153-0 Collar, 6.7-12.7-3Collar, 6.7-12.7-3
-
42910103-6616 BoltBolt
-
433T1-76174-0 Stay lead wire bandStay lead wire band
-
443T1-84398-0 Lead wire band 170 (local purchase)Lead wire band 170 (local purchase)
-
453T5-10099-0 Cap, ValveCap, Valve
-
4698AB-5-0720 Fuel pipe 5mm (1 ea.=1 meter)
AIR RAIL - FFP CASE / STD 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
AIR RAIL - FFP CASE / STD 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
473HK-02165-0 Hose low permeation
LOW PERMEATION PARTS / FOR USA MODELHose low permeation
LOW PERMEATION PARTS / FOR USA MODEL -
483AB-35143-0 Clip @ 9.5Clip @ 9.5
-
4998AB-5-0460 Fuel pipe 5mm (1 ea.=1 meter)
AIR RAIL-CYLINDER / 98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
AIR RAIL-CYLINDER / 98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
50338-02215-0 ClipClip
-
513T5-72196-0 Lavel, Air ReilLavel, Air Reil
