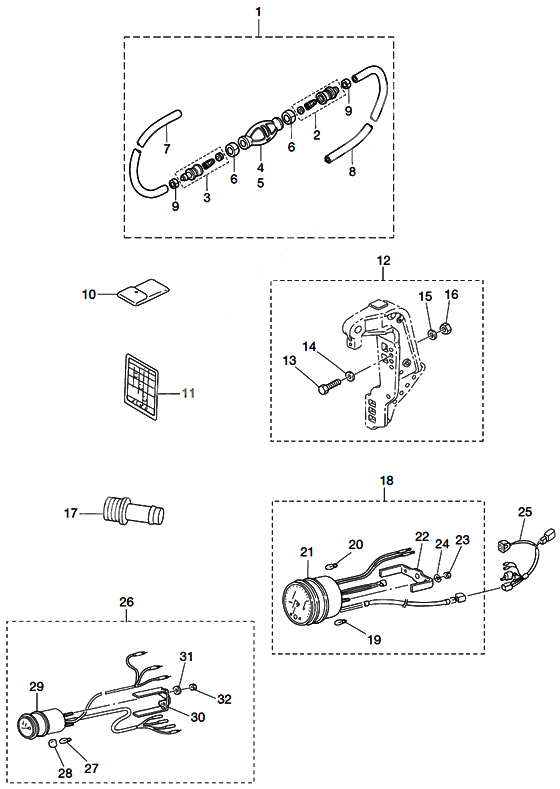

Accessories для Tohatsu MD115A2 - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    3T1-70200-1 Primer bulb assy
    STD
    Primer bulb assy
    STD
  • 3FF-70200-4 Primer bulb assy
    Primer bulb assy
  • 2
    3C7-70220-1 Joint A Ass'y In
    Joint A Ass'y In
  • 3
    3C7-70224-1 Joint A Ass'y Out
    Joint A Ass'y Out
  • 4
    3C7-70211-1 Primer Bulb
    STD
    Primer Bulb
    STD
  • 5
    3GF-70211-1 Primer bulb low permeation
    LOW PERMEATION PARTS / FOR USA MODEL
    Primer bulb low permeation
    LOW PERMEATION PARTS / FOR USA MODEL
  • 6
    3C7-70217-0 Clamp
    Clamp
  • 7
    98AB-7-0700 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    STD / 98AB-701000
    Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    STD / 98AB-701000
  • 98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    Fuel pipe 7mm/5/16in (1 ea.=1 meter)
  • 7
    3GF-70241-1 Hose (low permeation)
    LOW PERMEATION PARTS / EPA-KRI-15G USA
    Hose (low permeation)
    LOW PERMEATION PARTS / EPA-KRI-15G USA
  • 3GF-70241-0 Hose (low permeation)
    Hose (low permeation)
  • 8
    98AB70160-0 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    STD / 98AB-701000 X2
    Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    STD / 98AB-701000 X2
  • 98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
    Fuel pipe 7mm/5/16in (1 ea.=1 meter)
  • 8
    3GF-70240-1 Hose (low permeation)
    LOW PERMEATION PARTS / EPA-KRI-15G USA
    Hose (low permeation)
    LOW PERMEATION PARTS / EPA-KRI-15G USA
  • 3GF-70240-0 Hose (low permeation)
    Hose (low permeation)
  • 9
    332-70201-0 Clamp
    Clamp
  • 10
    3H6-72100-0 TOOL ASS'Y
    TOOL ASS'Y
  • 11
    3T5-72050-0 New part
    New part
  • 12
    3C8-72120-0 Rigging bolt set
    Rigging bolt set
  • 13
    3C7-62133-2 Bolt
    Bolt
  • 14
    353-61334-0 Washer
    Washer
  • 15
    940103-1200 Washer
    Washer
  • 16
    3C7-62139-1 Nut,P1.25
    Nut,P1.25
  • 17
    3T1-72405-0 Hose joint
    Hose joint
  • 18
    3GF-72647-0 Tachometer - tldi - black (ftc1918)
    Tachometer - tldi - black (ftc1918)
  • 3GF-72647-1 Tachometer - tldi - black (ftc1918)
    Tachometer - tldi - black (ftc1918)
  • 18
    3GL-72647-0 Tachometer - tldi - white (ftc1912)
    Tachometer - tldi - white (ftc1912)
  • 18
    3Z5-72640-1 Tachometer - nla
    Tachometer - nla
  • 19
    3B7-72658-0 Bulb, Meter 12V-1.7W
    Bulb, Meter 12V-1.7W
  • 20
    3B7-72659-0 Bulb, Meter 12V-1.7W
    Bulb, Meter 12V-1.7W
  • 21
    3B7-72656-0 Damper, Meter
    Damper, Meter
  • 22
    3B7-72661-0 Plate, Fitting
    Plate, Fitting
  • 23
    930203-0500 Nut
    Nut
  • 24
    941303-0500 Spring Washer
    Spring Washer
  • 25
    3T5-72537-1 Lead wire meter (l=8000 mm)
    Lead wire meter (l=8000 mm)
  • 26
    3GF-72571-0 Trim meter 2in - black (fgp8010) 2-wire
    Trim meter 2in - black (fgp8010) 2-wire
  • 26
    3GL-72571-0 Trim meter 2in - white (fgp8008)2-wire
    Trim meter 2in - white (fgp8008)2-wire
  • 26
    3T1-72571-0 Trim meter assy. (2-wire)
    Trim meter assy. (2-wire)
  • 27
    3T1-72659-0 Bulb meter
    Bulb meter
  • 28
    3T1-72653-0 Cap meter bulb
    Cap meter bulb
  • 29
    3B7-72655-0 Damper, Meter
    Damper, Meter
  • 30
    3T1-72665-0 Plate Fitting
    Plate Fitting
  • 31
    941303-0400 Spring Washer
    Spring Washer
  • 32
    930203-0400 Nut
    Nut
