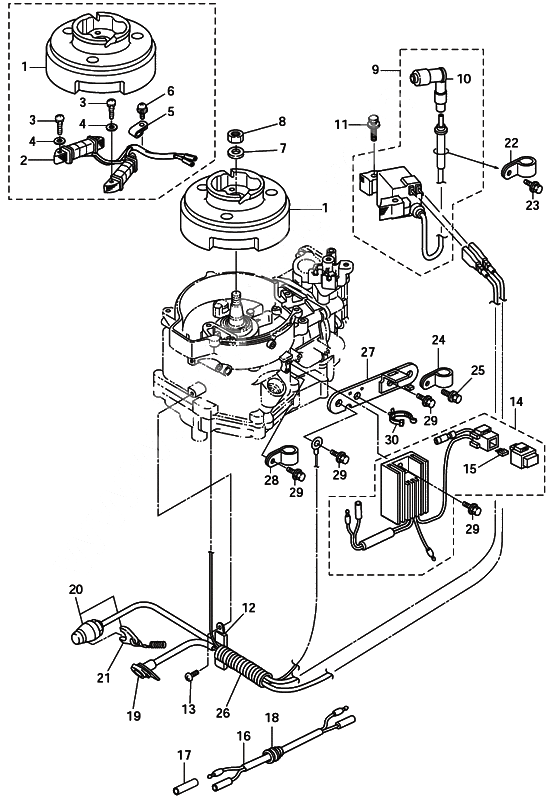

Magneto для Tohatsu MFS6C - 2011 года выпуска

№

Артикул

Название
1

3AS-06009-0 Flywheel w/o alternator b models
STD / WITHOUT ALTERNATOR

Flywheel w/o alternator b models
STD / WITHOUT ALTERNATOR

16 230 ₽
1

3AS-06001-0 Flywheel cup (mf54) for use w/alternator
FOR SAIL PRO / (WITH ALTERNATER)

Flywheel cup (mf54) for use w/alternator
FOR SAIL PRO / (WITH ALTERNATER)

20 150 ₽
2

3GR-06023-0 Alternator assy. f5/6c
FOR SAIL PRO 12V60W / (WITH ALTERNATER)

Alternator assy. f5/6c
FOR SAIL PRO 12V60W / (WITH ALTERNATER)

7 570 ₽
3

921503-0525 Stud Bolt
FOR SAIL PRO / (WITH ALTERNATER)

Stud Bolt
FOR SAIL PRO / (WITH ALTERNATER)

140 ₽
4

940103-0500 Washer
FOR SAIL PRO / (WITH ALTERNATER)

Washer
FOR SAIL PRO / (WITH ALTERNATER)

90 ₽
5

369-06915-0 Clamp
FOR SAIL PRO / (WITH ALTERNATER)

Clamp
FOR SAIL PRO / (WITH ALTERNATER)

200 ₽
6

921521-6408 Stud Bolt
FOR SAIL PRO / (WITH ALTERNATER)

Stud Bolt
FOR SAIL PRO / (WITH ALTERNATER)

110 ₽
7

940121-1200 Washer

Washer

230 ₽
8

369-00132-0 Nut Magneto

Nut Magneto

290 ₽
9

3GR-06041-0 Igniter w/resistance cap c models

Igniter w/resistance cap c models

15 120 ₽
10

3H6-06999-0 Plug Cap (Registance)

Plug Cap (Registance)

3 710 ₽
11

910103-5630 Bolt

Bolt

170 ₽
12

398-06972-0 Clamp,6.5-67P

Clamp,6.5-67P

200 ₽
12

309-06972-0 Clamp,6.5-47.5P

Clamp,6.5-47.5P

190 ₽
13

910103-5612 Bolt

Bolt

140 ₽
14

3GR-76060-0 Rectifier complete

Rectifier complete

12 290 ₽
15

3GR-76246-0 Fuse 10a

Fuse 10a

500 ₽
16

399-76120-0 Battery cable
WITH ALTERNATOR / SAIL PRO ONLY

Battery cable
WITH ALTERNATOR / SAIL PRO ONLY

1 840 ₽
17

3H6-76037-0 Cable terminal plug
WITH ALTERNATOR / SAIL PRO ONLY

Cable terminal plug
WITH ALTERNATOR / SAIL PRO ONLY

230 ₽
18

345-66226-0 Grommet, 17-3

Grommet, 17-3

600 ₽
19

3GR-71040-0 Warning lamp assy

Warning lamp assy

2 270 ₽
20

3GR-06870-0 Stop switch assy

Stop switch assy

4 580 ₽
21

353-06821-0 Lock, lanyard stop switch

Lock, lanyard stop switch

1 340 ₽
22

345-06915-0 Clamp 6.5-14

Clamp 6.5-14

370 ₽
23

910103-5612 Bolt

Bolt

140 ₽
24

345-06915-0 Clamp 6.5-14
SAIL PRO

Clamp 6.5-14
SAIL PRO

370 ₽
25

910103-5612 Bolt
SAIL PRO

Bolt
SAIL PRO

140 ₽
26

3H6-06133-0 Protector,wire Harness

Protector,wire Harness

340 ₽
27

3GR-06900-0 Electric bracket assy
SAIL PRO

Electric bracket assy
SAIL PRO

1 750 ₽
28

345-06915-0 Clamp 6.5-14
SAIL PRO

Clamp 6.5-14
SAIL PRO

370 ₽
29

910103-5614 Bolt
SAIL PRO

Bolt
SAIL PRO

140 ₽
30

3BJ-84398-0 Lead wire band 135
SAIL PRO

Lead wire band 135
SAIL PRO

250 ₽
