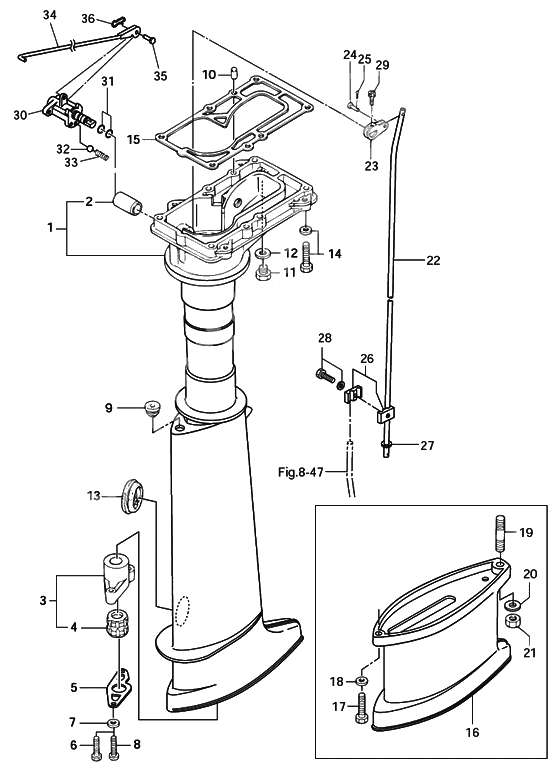

Drive shaft housing & shift для Tohatsu MFS6C - 2011 года выпуска
-
№АртикулНазвание
-
13H6Q61020-2 Drive shaft housing s (amb)
FOR TRANSOM “S”Drive shaft housing s (amb)
FOR TRANSOM “S” -
13H6Q61030-3 Drive shaft housing l (amb)
FOR TRANSOM “L” USE 369-60003-0Drive shaft housing l (amb)
FOR TRANSOM “L” USE 369-60003-0 -
3H6Q61030-4 Drive shaft housing l (amb)Drive shaft housing l (amb)
-
13ASQ61030-2 Drive shaft housing assy (ul)
FOR TRANSOM “UL” USE 3AB-60003-0Drive shaft housing assy (ul)
FOR TRANSOM “UL” USE 3AB-60003-0 -
2301-61021-0 Bushing Shift LeverBushing Shift Lever
-
3369-64331-2 Drive shaft bushing assy
FOR TRANSOM “L”Drive shaft bushing assy
FOR TRANSOM “L” -
33AS-64331-0 Drive shaft bushing assy (amb)
FOR TRANSOM “UL”Drive shaft bushing assy (amb)
FOR TRANSOM “UL” -
4369-60003-0 Bushing drive shaft
FOR TRANSOM “L”Bushing drive shaft
FOR TRANSOM “L” -
43AB-60003-0 Drive shaft bushing
FOR TRANSOM “UL”Drive shaft bushing
FOR TRANSOM “UL” -
5369-64332-1 StopperStopper
-
63H6-64333-1 Screw
FOR TRANSOM “L/UL”Screw
FOR TRANSOM “L/UL” -
79401E3-0500 WasherWasher
-
940103-0500 WasherWasher
-
89215E3-0510 Screw
FOR TRANSOM “S”Screw
FOR TRANSOM “S” -
921503-0510 ScrewScrew
-
9369-66043-1 Grommet Cam RodGrommet Cam Rod
-
10345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
119106E3-0808 Water PlugWater Plug
-
12332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
13369-61016-0 Grommet Drive Shaft HousingGrommet Drive Shaft Housing
-
149101E3-5630 BoltBolt
-
910103-5630 BoltBolt
-
153H6-61012-0 Gasket,Drive Shaft HousingGasket,Drive Shaft Housing
-
16369Q61110-2 Extension housing ul (amb)
FOR TRANSOM “UL”Extension housing ul (amb)
FOR TRANSOM “UL” -
369Q61110-1 Extension housing ul (amb)Extension housing ul (amb)
-
179161E3-0625 Bolt
FOR TRANSOM “UL”Bolt
FOR TRANSOM “UL” -
916113-0625 BoltBolt
-
189401E3-0600 Washer
FOR TRANSOM “UL”Washer
FOR TRANSOM “UL” -
940113-0600 WasherWasher
-
199152E3-0825 Stud Bolt
FOR TRANSOM “UL”Stud Bolt
FOR TRANSOM “UL” -
915203-0825 Stud BoltStud Bolt
-
209401E3-0800 Washer
FOR TRANSOM “UL”Washer
FOR TRANSOM “UL” -
940103-0800 WasherWasher
-
21930103-0800 Nut
FOR TRANSOM “UL”Nut
FOR TRANSOM “UL” -
22369-66214-0 Shift rod s
FOR TRANSOM “S”Shift rod s
FOR TRANSOM “S” -
223GR-66215-0 Shift rod l
FOR TRANSOM “L”Shift rod l
FOR TRANSOM “L” -
23369-66225-0 Shift Rod LeverShift Rod Lever
-
24369-66223-0 Pin Shift LeverPin Shift Lever
-
25951503-1210 Split PinSplit Pin
-
26369-66241-0 Joint Shift RodJoint Shift Rod
-
27940103-0600 WasherWasher
-
28910103-5616 BoltBolt
-
29910903-6416 BoltBolt
-
303GR-66130-0 Shift lever shaft assyShift lever shaft assy
-
31301-66136-0 O-RingO-Ring
-
323GR-66116-0 Ceramic ball shift lever 7.7Ceramic ball shift lever 7.7
-
333GR-66112-0 Spring Shift Lever StopperSpring Shift Lever Stopper
-
343GR-66134-0 Shift lever rodShift lever rod
-
3GR-66134-1 Shift lever rodShift lever rod
-
353GR-66223-0 Pin shift lever rodPin shift lever rod
-
363EF-65307-0 Snap pinSnap pin
