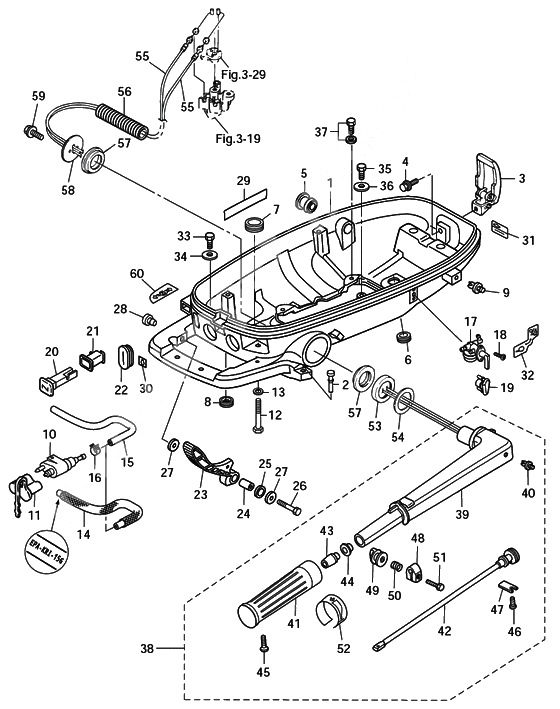

Bottom cowl - tiller handle для Tohatsu MFS6C - 2011 года выпуска
-
№АртикулНазвание
-
13GRQ67100-0 Lower motor cover f5/6c (amb)Lower motor cover f5/6c (amb)
-
23GR-67161-0 Grommet 5.5-9.5 - 44Grommet 5.5-9.5 - 44
-
33AA-67120-0 Cowl latch assy.Cowl latch assy.
-
3AA-67120-1 Cowl latch assy.Cowl latch assy.
-
4910103-5616 BoltBolt
-
53GR-67187-0 Grommet 10.5-15.5-20.5-32Grommet 10.5-15.5-20.5-32
-
6338-67163-0 Supporting Rubber Fuel PipeSupporting Rubber Fuel Pipe
-
73B7-76093-0 Grommet, 25-5
DUAL FUEL TANKGrommet, 25-5
DUAL FUEL TANK -
8345-67117-0 New partNew part
-
9350-67154-0 New partNew part
-
10394-70260-0 Fuel conector(enginemale)Fuel conector(enginemale)
-
113H6-70262-0 Propeller Fuel ConectorPropeller Fuel Conector
-
12910103-0625 BoltBolt
-
13940203-0600 WasherWasher
-
143JF-02160-0 Fuel hose w/protector
USA / SEPARATE FUEL TANKFuel hose w/protector
USA / SEPARATE FUEL TANK -
153JG-02161-0 Fuel hose
STD / SEPARATE FUEL TANKFuel hose
STD / SEPARATE FUEL TANK -
3JG-02203-0 Fuel hoseFuel hose
-
163AB-35143-0 Clip @ 9.5
SEPARATE FUEL TANKClip @ 9.5
SEPARATE FUEL TANK -
173H9-70311-0 Fuel Cock
DUAL FUEL TANKFuel Cock
DUAL FUEL TANK -
183GR-83821-0 Screw
DUAL FUEL TANKScrew
DUAL FUEL TANK -
193GR-67129-0 Grommet
SEPARATE FUEL TANKGrommet
SEPARATE FUEL TANK -
203H6-67151-0 Choke RodChoke Rod
-
213GR-67104-0 Choke rod bushingChoke rod bushing
-
223GR-66260-0 Grommet 21-38.5Grommet 21-38.5
-
233GR-66110-0 Shift LeverShift Lever
-
243GR-63066-0 Collar 15.9-17.9Collar 15.9-17.9
-
253GR-63108-0 Washer 30 - 45-1Washer 30 - 45-1
-
263H6-62445-0 BoltBolt
-
27345-05122-1 Washer rachetWasher rachet
-
283A3-76037-0 Plug B Cable TerminalPlug B Cable Terminal
-
293H6-67572-0 LABEL, STORAGELABEL, STORAGE
-
303BA-76199-0 Decal oil pressureDecal oil pressure
-
313H6-72026-0 Label, Spark PlugLabel, Spark Plug
-
323JJ-72024-0 Decal fuel levelDecal fuel level
-
33910103-0612 New partNew part
-
34345-05122-1 Washer rachetWasher rachet
-
35910103-0612 New part
SEPARATE FUEL TANK STDNew part
SEPARATE FUEL TANK STD -
36345-05122-1 Washer rachet
SEPARATE FUEL TANK STDWasher rachet
SEPARATE FUEL TANK STD -
379101E3-5616 Bolt & washerBolt & washer
-
383V1Q63003-4 Handle assy (amb)Handle assy (amb)
-
393V1Q63011-3 Tiller handle (amb)Tiller handle (amb)
-
40350-67154-0 New partNew part
-
413R3-63012-0 GripGrip
-
423V1-63041-0 Throttle ShaftThrottle Shaft
-
433H6-63048-0 Rubber, Shrottle ShaftRubber, Shrottle Shaft
-
443H6-63510-0 BushingBushing
-
45920803-0518 Stud BoltStud Bolt
-
469215E3-0612 ScrewScrew
-
921503-0612 ScrewScrew
-
473B2-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
483V1-63035-1 Friction PieceFriction Piece
-
493V1-63077-0 Adjusting NutAdjusting Nut
-
503V1-63036-0 Spring WasherSpring Washer
-
519101E3-0625 BoltBolt
-
910103-0625 BoltBolt
-
523V9-72019-0 Label,ThrottleLabel,Throttle
-
533H6-63026-0 Spacer, HandleSpacer, Handle
-
543B2-63108-0 WasherWasher
-
553GR-63600-0 Throttle WireThrottle Wire
-
563H6-06133-0 Protector,wire HarnessProtector,wire Harness
-
573H6-63102-0 Bushing, Steering HandleBushing, Steering Handle
-
583GR-63107-0 CoverCover
-
599101E3-5616 Bolt & washerBolt & washer
-
603JJ-67578-0 Decal shiftDecal shift
