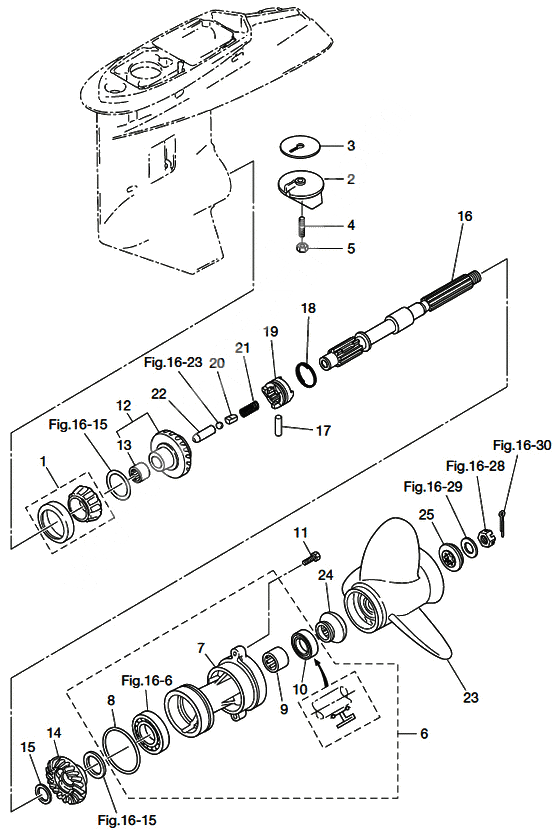

Gear case (propeller shaft) (mwd50 big foot) для Tohatsu MD40B2 - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    3F3-60215-0 Taper roller bearing 32007jr
    Taper roller bearing 32007jr
  • 2
    3B7-60217-1 Trim Tab
    Trim Tab
  • 3
    3B7-60219-0 Packing, Trim Tab
    Packing, Trim Tab
  • 4
    915303-0825 Stud Bolt
    Stud Bolt
  • 5
    930403-0800 Nylon Nut
    Nylon Nut
  • 6
    3A3Q60100-0 Prop shaft housing assy
    Prop shaft housing assy
  • 7
    3A3Q60101-0 Prop shaft housing
    Prop shaft housing
  • 8
    353-60103-0 O-Ring
    O-Ring
  • 9
    353-60211-0 New part
    New part
  • 10
    353-60111-0 New part
    New part
  • 11
    3C7-60108-2 Bolt 8-30 precoated
    Bolt 8-30 precoated
  • 12
    3F3-64010-3 New part
    New part
  • 13
    345-64011-0 Needle bearing 202720
    Needle bearing 202720
  • 14
    3F3-64030-0 New part
    New part
  • 15
    353-64032-0 Washer, bevel gear c t=3.0
    Washer, bevel gear c t=3.0
  • 15
    353-64034-0 Washer,t=2.75
    Washer,t=2.75
  • 15
    353-64035-0 Washer,t=2.50
    Washer,t=2.50
  • 16
    3A3-64211-0 Propeller Shaft
    Propeller Shaft
  • 17
    353-64218-1 Clutch Pin
    Clutch Pin
  • 353-64218-0 Clutch Pin
    Clutch Pin
  • 18
    353-64219-2 Snap clutch pin
    Snap clutch pin
  • 19
    3F3-64215-0 Clutch
    Clutch
  • 20
    3A3-64222-0 Spring holder clutch
    Spring holder clutch
  • 21
    346-64221-0 Spring Clutch
    Spring Clutch
  • 22
    353-64223-1 New part
    New part
  • 23
    353B64104-0 Prop 70b (11.6 dia. x 12 pitch)
    50PS STD
    Prop 70b (11.6 dia. x 12 pitch)
    50PS STD
  • 23
    353B64101-0 Prop 70b (12 dia. x 9 pitch)
    OPT
    Prop 70b (12 dia. x 9 pitch)
    OPT
  • 23
    353B64102-0 Prop 70b (11.5 dia. x 10 pitch)
    OPT
    Prop 70b (11.5 dia. x 10 pitch)
    OPT
  • 353-64102-0 Prop 70b (11.5 dia. x 10 pitch)
    Prop 70b (11.5 dia. x 10 pitch)
  • 23
    353B64103-0 Prop 70b (11.5 dia. x 11 pitch)
    OPT
    Prop 70b (11.5 dia. x 11 pitch)
    OPT
  • 23
    353B64105-0 Prop 70b (11.5 dia. x 13 pitch)
    OPT
    Prop 70b (11.5 dia. x 13 pitch)
    OPT
  • 23
    353B64106-0 Prop 70b (11.4 dia. x 14 pitch) - no longer available
    OPT
    Prop 70b (11.4 dia. x 14 pitch) - no longer available
    OPT
  • 23
    353B64107-0 Prop 70b (11 dia. x 15 pitch) no longer available
    OPT
    Prop 70b (11 dia. x 15 pitch) no longer available
    OPT
  • 353-64107-0 Prop 70b (11 dia. x 15 pitch) no longer available
    Prop 70b (11 dia. x 15 pitch) no longer available
  • 23
    353B64108-0 Prop 70b (10.7 dia. x 16.4 pitch)
    OPT
    Prop 70b (10.7 dia. x 16.4 pitch)
    OPT
  • 353-64108-0 Prop 70b (10.7 dia. x 16.4 pitch)
    Prop 70b (10.7 dia. x 16.4 pitch)
  • 23
    353B64109-0 Prop 70b (10.9 dia. x 17.6 pitch)
    OPT
    Prop 70b (10.9 dia. x 17.6 pitch)
    OPT
  • 353-64109-0 Prop 70b (10.9 dia. x 17.6 pitch)
    Prop 70b (10.9 dia. x 17.6 pitch)
  • 24
    353-64231-0 Thrust holder a propeller
    Thrust holder a propeller
  • 25
    353-64233-0 Stopper a propeller
    Stopper a propeller
