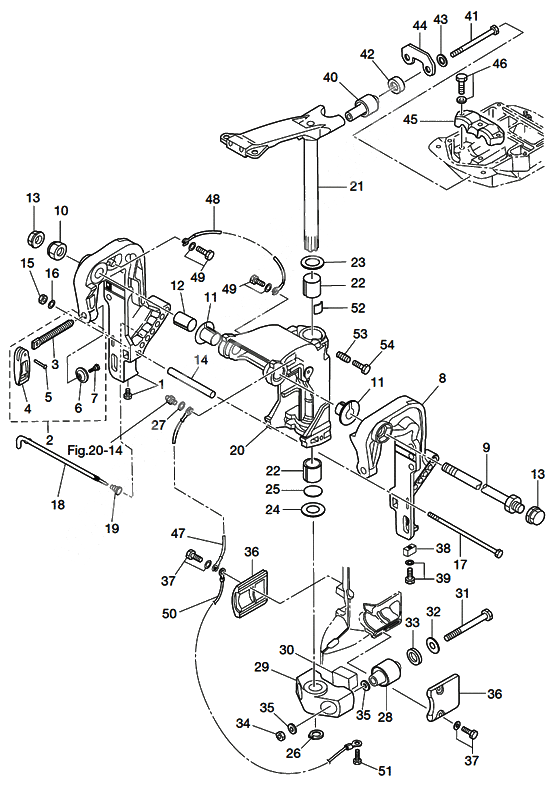

Bracket (1) manual tilt для Tohatsu MD40B2 - 2011 года выпуска
-
№АртикулНазвание
-
13C8Q62112-0 Stern bracket right (amb)
STERN BRACKET (RIGHT) STARBOARDStern bracket right (amb)
STERN BRACKET (RIGHT) STARBOARD -
23E3Q62105-0 Clamp screw kitClamp screw kit
-
33E3-62106-0 Clamp screwClamp screw
-
4332Q62102-1 Handle clamp screwHandle clamp screw
-
53C8-62104-2 RivetRivet
-
3C8-62104-1 RivetRivet
-
6332-62101-1 Pad clamp screw (threaded style)Pad clamp screw (threaded style)
-
73C8-62107-0 Shoulder boltShoulder bolt
-
83C8Q62113-0 Stern bracket left (amb)
STERN BRACKET (LEFT) PORTStern bracket left (amb)
STERN BRACKET (LEFT) PORT -
93AC-62191-0 Swivel bracket bolt
BRACKET BOLTSwivel bracket bolt
BRACKET BOLT -
10346-62124-1 Bracket nutBracket nut
-
11349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
123C8-62132-0 BushingBushing
-
13346-62127-0 Cap,Bracket Bolt
FOR F TYPE / FIG20 P TYPECap,Bracket Bolt
FOR F TYPE / FIG20 P TYPE -
143C8-62117-1 Distance PieceDistance Piece
-
15930103-0800 NutNut
-
169401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
173C8-62120-1 Bolt 8-170Bolt 8-170
-
183C8-62121-1 Thrust RodThrust Rod
-
19345-62122-2 Spring Thrust RodSpring Thrust Rod
-
203C8Q62310-3 Swivel bracket (amb)Swivel bracket (amb)
-
3C8Q62310-2 Swivel bracket (amb)Swivel bracket (amb)
-
213C8Q62010-3 Invalid partInvalid part
-
22345-62417-0 Bushing Steering ShaftBushing Steering Shaft
-
233A0-62423-2 Upper Thrust PlateUpper Thrust Plate
-
24346-62424-1 Trust Plate LowerTrust Plate Lower
-
26945103-2500 ClipClip
-
27940103-0600 WasherWasher
-
283C8-61302-0 Lower Mount RubberLower Mount Rubber
-
293C8Q61411-3 Mount bracket (amb)Mount bracket (amb)
-
3C8Q61411-2 Mount bracket (amb)Mount bracket (amb)
-
303C8-61336-0 Damper RubberDamper Rubber
-
313C8-61321-1 Bolt Lower Mount RubberBolt Lower Mount Rubber
-
32353-61334-0 WasherWasher
-
333C7-61338-0 Damper RubberDamper Rubber
-
34930403-1200 Nylon NutNylon Nut
-
359402E3-1200 WasherWasher
-
363C8Q61342-0 Mount holding plate lower (amb)
RUBBER MOUNT CAP (LOWER)Mount holding plate lower (amb)
RUBBER MOUNT CAP (LOWER) -
379101E3-5620 Bolt & washerBolt & washer
-
383B7-60218-1 AnodeAnode
-
39910103-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
403E3-61301-1 Upper Mount RobberUpper Mount Robber
-
41353-61307-1 Bolt upperBolt upper
-
423E3-61333-0 Upper Damper RubberUpper Damper Rubber
-
43353-61335-0 WasherWasher
-
443E3-61335-0 Upper Lock PlateUpper Lock Plate
-
453C8-61341-0 Cap Upper Mount Rubber
RUBBER MOUNT CAP (UPPER)Cap Upper Mount Rubber
RUBBER MOUNT CAP (UPPER) -
469101E3-5835 Bolt & washerBolt & washer
-
473C8-62396-1 Ground WireGround Wire
-
48398-62396-1 Ground WireGround Wire
-
499101E3-5612 Bolt & washerBolt & washer
-
503A3-62396-1 New partNew part
-
519101E3-5612 Bolt & washerBolt & washer
-
52345-62441-0 Friction PlateFriction Plate
-
53346-62421-1 Spring Friction PlateSpring Friction Plate
-
549101E3-0830 BoltBolt
-
910103-0830 BoltBolt
