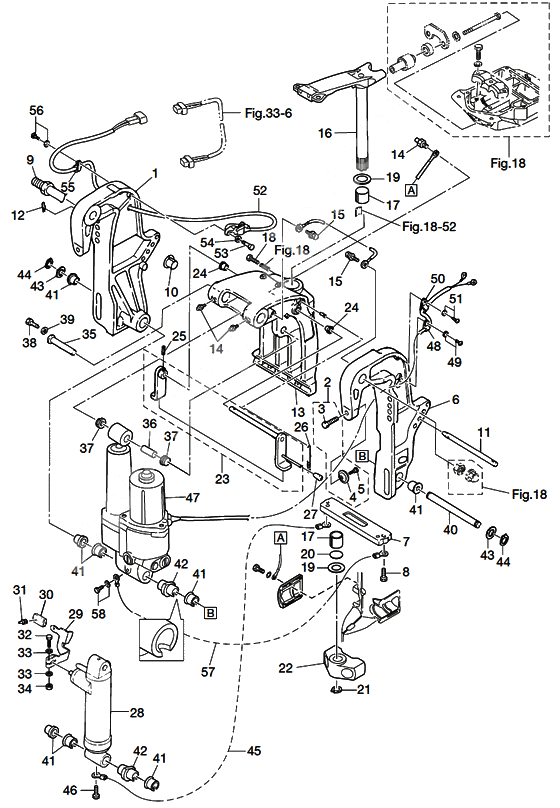

Bracket (2) power trim & tilt / gas assist для Tohatsu MD40B2 - 2011 года выпуска

№

Артикул

Название
1

3GFQ77211-0 Clamp bracket (ppt) right, md50b
STERN BRACKET (RIGHT) STARBOARD

Clamp bracket (ppt) right, md50b
STERN BRACKET (RIGHT) STARBOARD

16 600 ₽
1

3GGQ77211-0 Clamp bracket (ppt) right, md40b
FOR GAS ASSIST MODEL

Clamp bracket (ppt) right, md40b
FOR GAS ASSIST MODEL

16 600 ₽
2

3C8-77217-0 Clamp screw kit

Clamp screw kit

5 900 ₽
3

3C8-77216-0 Clamp screw (ptt)

Clamp screw (ptt)

4 730 ₽
4

332-62101-1 Pad clamp screw (threaded style)

Pad clamp screw (threaded style)

460 ₽
5

3C8-62107-0 Shoulder bolt

Shoulder bolt

780 ₽
6

3GFQ77212-0 Clamp bracket (ppt) left, md50b
STERN BRACKET (LEFT) PORT

Clamp bracket (ppt) left, md50b
STERN BRACKET (LEFT) PORT

16 600 ₽
7

3C7-60218-2 Anode, Stern Bracket

Anode, Stern Bracket

1 840 ₽
8

910103-6630 Bolt

Bolt

170 ₽
9

3AD-62191-0 Swivel bracket bolt (ptt)
BRACKET BOLT

Swivel bracket bolt (ptt)
BRACKET BOLT

4 780 ₽
10

3C8-77213-0 Bushing Bracket Bolt

Bushing Bracket Bolt

1 130 ₽
11

3R0-77118-0 Thrust Rod

Thrust Rod

2 670 ₽
12

951603-1000 R-Pin

R-Pin

120 ₽
13

3Z7Q77208-1 Swivel bracket assy

Swivel bracket assy

32 620 ₽
3Z7Q77208-3 Swivel bracket assy

Swivel bracket assy

32 620 ₽
14

344-67177-1 Grease Nipple

Grease Nipple

380 ₽
15

9101E3-5612 Bolt & washer
FOR GAS ASSIST MODEL

Bolt & washer
FOR GAS ASSIST MODEL

170 ₽
16

3Z5Q62010-0 Steering shaft assy (amb)

Steering shaft assy (amb)

30 910 ₽
17

353-62417-0 Bushing

Bushing

550 ₽
18

9101E3-0830 Bolt

Bolt

270 ₽
910103-0830 Bolt

Bolt

200 ₽
19

353-62423-1 Thrust Plate

Thrust Plate

420 ₽
20

353-62415-0 O-Ring

O-Ring

230 ₽
21

945103-2800 C-Ring

C-Ring

280 ₽
945127-2800 C-Ring

C-Ring

140 ₽
22

3Z5Q61411-1 Mount bracket (amb)

Mount bracket (amb)

12 630 ₽
3Z5Q61411-0 Mount bracket (amb)

Mount bracket (amb)

13 830 ₽
23

3R0Q62470-0 Tilt stopper assy.
FOR GAS ASSIST MODEL

Tilt stopper assy.
FOR GAS ASSIST MODEL

7 250 ₽
3AC-62466-1 Tilt stopper assy.

Tilt stopper assy.

8 190 ₽
23

3Z5-62470-1 Tilt stopper (ptt type)

Tilt stopper (ptt type)

7 780 ₽
3GF-62466-1 Tilt stopper (ptt type)

Tilt stopper (ptt type)

8 190 ₽
24

353-63207-0 Collar 10.2-12-12

Collar 10.2-12-12

260 ₽
25

951403-3516 New part

New part

120 ₽
26

3R0-62473-0 Spring,Tilt Stopper

Spring,Tilt Stopper

550 ₽
27

369-62433-1 Grip Tilt Stopper

Grip Tilt Stopper

200 ₽
29

3R0-66311-0 Rever, Revers Lock
FOR GAS ASSIST MODEL

Rever, Revers Lock
FOR GAS ASSIST MODEL

3 570 ₽
30

3AL-66333-0 Lock lever grip
FOR GAS ASSIST MODEL

Lock lever grip
FOR GAS ASSIST MODEL

450 ₽
31

346-66334-0 Stopper
FOR GAS ASSIST MODEL

Stopper
FOR GAS ASSIST MODEL

150 ₽
32

3V2-60001-0 Bolt 6-35 precoated
FOR GAS ASSIST MODEL

Bolt 6-35 precoated
FOR GAS ASSIST MODEL

360 ₽
33

9401E3-0600 Washer
FOR GAS ASSIST MODEL

Washer
FOR GAS ASSIST MODEL

120 ₽
940113-0600 Washer

Washer

140 ₽
33

940103-0600 Washer
FOR GAS ASSIST MODEL

Washer
FOR GAS ASSIST MODEL

110 ₽
34

9301E3-0600 Nut
FOR GAS ASSIST MODEL

Nut
FOR GAS ASSIST MODEL

90 ₽
930103-0600 Nut

Nut

190 ₽
35

3R0-77071-1 Cylinder pin upper
FOR GAS ASSIST MODEL

Cylinder pin upper
FOR GAS ASSIST MODEL

830 ₽
3KY-77071-0 Cylinder pin upper

Cylinder pin upper

1 040 ₽
36

3R0-77075-0 Bushing
FOR GAS ASSIST MODEL

Bushing
FOR GAS ASSIST MODEL

390 ₽
37

3R0-77076-0 Bushing
FOR GAS ASSIST MODEL

Bushing
FOR GAS ASSIST MODEL

200 ₽
38

910103-0612 New part
FOR GAS ASSIST MODEL

New part
FOR GAS ASSIST MODEL

120 ₽
38

9101E3-0612 Bolt
FOR PTT MODEL

Bolt
FOR PTT MODEL

140 ₽
910103-0612 Bolt

Bolt

120 ₽
39

345-05122-1 Washer rachet
FOR GAS ASSIST MODEL

Washer rachet
FOR GAS ASSIST MODEL

570 ₽
40

3R0-77101-1 Cylinder pin lower
FOR GAS ASSIST MODEL

Cylinder pin lower
FOR GAS ASSIST MODEL

2 980 ₽
3KY-77101-0 Cylinder pin lower

Cylinder pin lower

4 420 ₽
41

3C8-77076-1 New part
FOR GAS ASSIST MODEL

New part
FOR GAS ASSIST MODEL

650 ₽
42

3Z5-77103-0 Bushing
FOR GAS ASSIST MODEL

Bushing
FOR GAS ASSIST MODEL

410 ₽
43

3R0-77112-0 Washer
FOR GAS ASSIST MODEL

Washer
FOR GAS ASSIST MODEL

270 ₽
44

945103-1800 C-Ring
FOR GAS ASSIST MODEL

C-Ring
FOR GAS ASSIST MODEL

210 ₽
45

3C8-62396-1 Ground Wire
FOR GAS ASSIST MODEL

Ground Wire
FOR GAS ASSIST MODEL

550 ₽
46

910103-5608 Bolt
FOR GAS ASSIST MODEL

Bolt
FOR GAS ASSIST MODEL

190 ₽
47

3Z5-77150-1 Power trim & tilt assy d40/50 (amb)
FOR PTT MODEL

Power trim & tilt assy d40/50 (amb)
FOR PTT MODEL

214 710 ₽
48

336-06973-0 Clamp Lead Wire
FOR PTT MODEL

Clamp Lead Wire
FOR PTT MODEL

290 ₽
49

921503-5612 Stud Bolt
FOR PTT MODEL

Stud Bolt
FOR PTT MODEL

120 ₽
50

345-06915-0 Clamp 6.5-14
FOR PTT MODEL

Clamp 6.5-14
FOR PTT MODEL

370 ₽
51

921503-5612 Stud Bolt
FOR PTT MODEL

Stud Bolt
FOR PTT MODEL

120 ₽
52

3Z4-72574-0 Trim sensor (2-wire)
FOR PTT MODEL

Trim sensor (2-wire)
FOR PTT MODEL

24 800 ₽
53

910103-0620 Bolt
FOR P TYPE

Bolt
FOR P TYPE

140 ₽
54

3C8-66308-0 New part
FOR P TYPE

New part
FOR P TYPE

140 ₽
55

336-06973-0 Clamp Lead Wire
FOR P TYPE

Clamp Lead Wire
FOR P TYPE

290 ₽
56

921503-5612 Stud Bolt
FOR P TYPE

Stud Bolt
FOR P TYPE

120 ₽
57

398-62396-1 Ground Wire
PTT ASSY - ANODE STERN BRACKET

Ground Wire
PTT ASSY - ANODE STERN BRACKET

610 ₽
58

9101E3-5612 Bolt & washer

Bolt & washer

170 ₽
