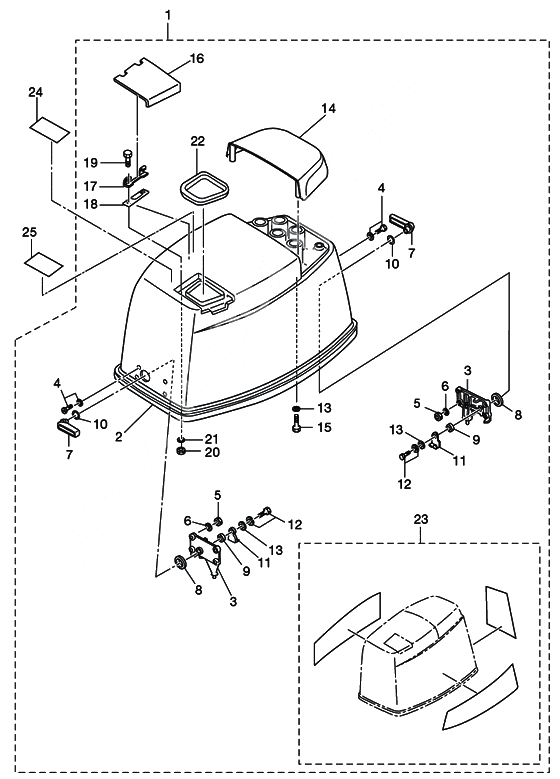

Top cowl (motor cover upper) для Tohatsu MD90B - 2010 года выпуска`
-
№АртикулНазвание
-
13Y9Q67645-2 Upper motor cover md90b
TOHATSU-MOTOR COVER (UPPER)Upper motor cover md90b
TOHATSU-MOTOR COVER (UPPER) -
13U9N67510-2 Motor cover upper nsd70/90 (aqua marine blue)
NISSAN-MOTOR COVER (UPPER)Motor cover upper nsd70/90 (aqua marine blue)
NISSAN-MOTOR COVER (UPPER) -
23C7-67501-0 Seal rubber upper motor coverSeal rubber upper motor cover
-
3353-67517-1 Locating bracketLocating bracket
-
4921703-5520 Stud BoltStud Bolt
-
59301F1-0500 NutNut
-
930111-0500 NutNut
-
6941303-0500 Spring WasherSpring Washer
-
7353Q67141-0 Hook lever (aqua marine blue)Hook lever (aqua marine blue)
-
8353-67147-1 Seal ringSeal ring
-
9353-67105-0 BushingBushing
-
10338-62435-0 O-RingO-Ring
-
11353-67142-1 Cover HookCover Hook
-
12910103-6616 BoltBolt
-
133C8-66308-0 New partNew part
-
143F3Q67521-2 Tilt handle (aqua marine blue)Tilt handle (aqua marine blue)
-
153Y9-67526-0 BoltBolt
-
163E3Q67210-1 Filler lid (aqua marine blue)Filler lid (aqua marine blue)
-
173B7-67211-0 Hinge, Filler LidHinge, Filler Lid
-
183C8-67212-1 Spring filler lidSpring filler lid
-
19910103-0614 BoltBolt
-
20930103-0600 NutNut
-
21941303-0600 New partNew part
-
223T9-67213-0 Seal rubber,filler lidSeal rubber,filler lid
-
233Y9-87802-0 Decal set md90b (amb)
TOHATSU / 90PSDecal set md90b (amb)
TOHATSU / 90PS -
233Y8N87802-0 Decal set nsd90 (aqua marine blue)
NISSAN / 90PSDecal set nsd90 (aqua marine blue)
NISSAN / 90PS -
243C7-72180-3 Caution labelCaution label
-
3C7-72180-0 Caution labelCaution label
-
253T1-72043-0 Oil caution decalOil caution decal
