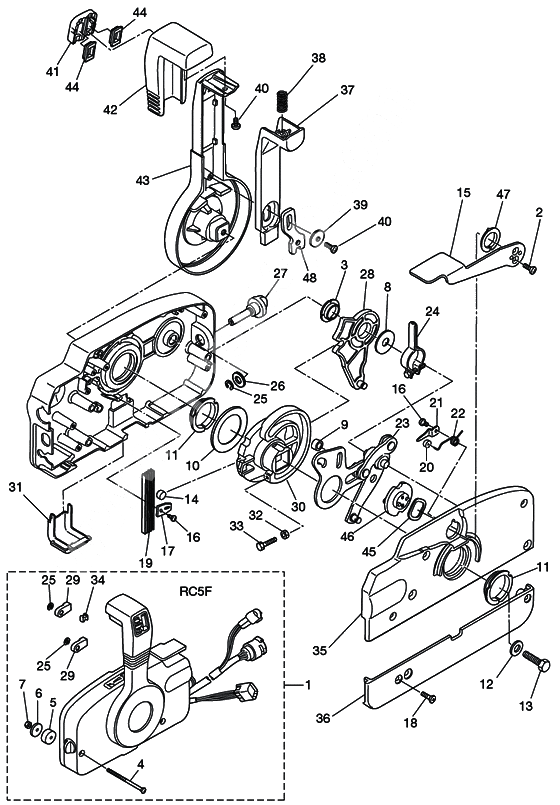

Component parts of remote control box для Tohatsu MD90B - 2010 года выпуска
-
№АртикулНазвание
-
13GFQ84500-0 Remote control assy. (RC5F)
TOHATSURemote control assy. (RC5F)
TOHATSU -
13U5Q84500-1 Rc box rc5f (nsd40b/50b nsd70b/90b/115) tldi amb
NISSANRc box rc5f (nsd40b/50b nsd70b/90b/115) tldi amb
NISSAN -
3GHQ84500-0 Rc box rc5f (nsd40b/50b nsd70b/90b/115) tldi ambRc box rc5f (nsd40b/50b nsd70b/90b/115) tldi amb
-
2921603-0512 Stud BoltStud Bolt
-
33A3-84432-0 Bushing BBushing B
-
43A3-84375-0 Stud BoltStud Bolt
-
53A3-84374-0 SpacerSpacer
-
6353-84371-0 WasherWasher
-
7930103-0600 NutNut
-
83A3-84383-0 WasherWasher
-
93A3-84421-0 RollerRoller
-
103A3-84422-0 Thrust PlateThrust Plate
-
113A3-84431-0 Bushing ABushing A
-
12940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
133A3-84442-0 BoltBolt
-
14353-84388-0 Roller Throttle DrumRoller Throttle Drum
-
153B7Q84312-0 Free throttle leverFree throttle lever
-
16921503-0406 Stud BoltStud Bolt
-
173A3-84423-0 Retainer DetentRetainer Detent
-
18921603-0518 Stud BoltStud Bolt
-
193A3-84307-0 Spring DetentSpring Detent
-
203A3-84424-0 Roller Free AccelRoller Free Accel
-
213A3-84426-0 Retainer RollerRetainer Roller
-
223A3-84425-0 Spring Free AccelSpring Free Accel
-
233A3-84365-1 Throttle ArmThrottle Arm
-
243A3-84428-0 Arm Throttle FrictionArm Throttle Friction
-
25945303-0600 E-RingE-Ring
-
26353-84394-0 WasherWasher
-
273A3-84427-0 Adjust ScrewAdjust Screw
-
283A3-84381-0 Shift Gear Ass'yShift Gear Ass'y
-
293A3-83314-2 Terminal EyeTerminal Eye
-
303A3-84364-2 Drive GearDrive Gear
-
313A3-84429-0 Wire CoverWire Cover
-
32930103-0500 NutNut
-
33910103-0525 BoltBolt
-
343A3-84376-0 GrommetGrommet
-
353B7Q84441-0 Rear housingRear housing
-
363B7Q84366-0 Rear panelRear panel
-
373A3-84401-0 Arm Neutral LockArm Neutral Lock
-
383A3-84403-0 Spring Neutral LockSpring Neutral Lock
-
393A3-84407-0 Washer Lock ArmWasher Lock Arm
-
40921503-0510 Stud BoltStud Bolt
-
413A3-84451-0 Finisher TiltFinisher Tilt
-
423A3-84404-0 GripGrip
-
433B7Q84343-0 Control lever (amb)Control lever (amb)
-
443A3-84452-0 Plug Tilt SwitchPlug Tilt Switch
-
453A3-84368-0 WasherWasher
-
463A3-84391-0 Drum Free AccelDrum Free Accel
-
473A3-84435-0 Bushing EBushing E
-
483A3-84406-0 Plate, Lock ArmPlate, Lock Arm
