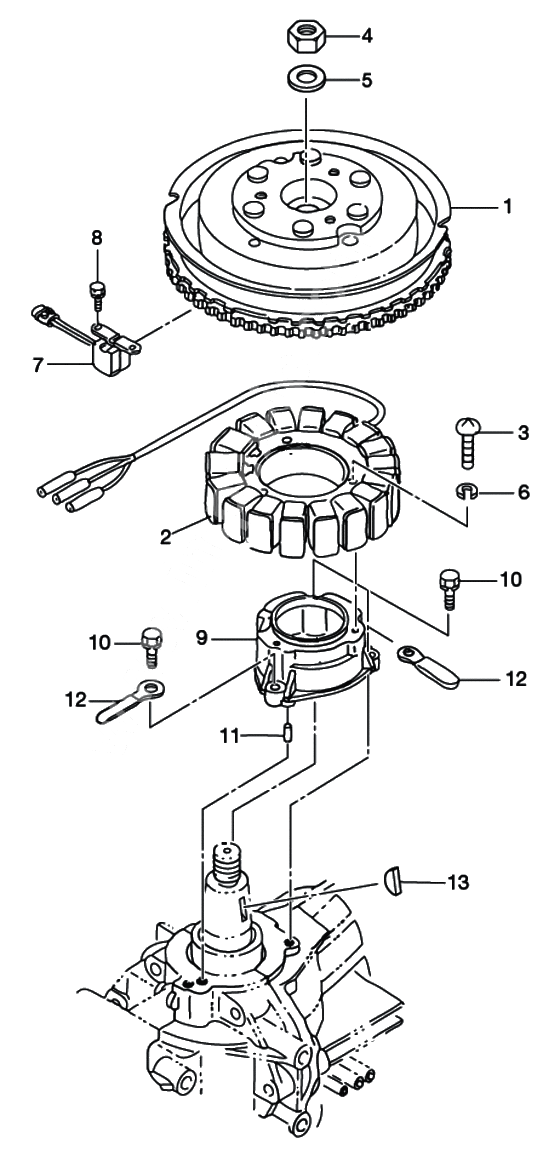

Magneto для Tohatsu MD90B - 2010 года выпуска
-
№АртикулНазвание
-
13T9-06101-0 Flywheel
F4T602-71Flywheel
F4T602-71 -
23Y9-06123-0 AlternatorAlternator
-
3921503-0635 Stud BoltStud Bolt
-
4353-00132-0 Nut 18P1.5Nut 18P1.5
-
5353-00133-0 WasherWasher
-
6941303-0600 New partNew part
-
73T5-06145-0 Pick Up Coil
CRANK POSITION SENSORPick Up Coil
CRANK POSITION SENSOR -
8910103-6512 BoltBolt
-
93T5-06008-1 Bracket CoilBracket Coil
-
10910103-7625 BoltBolt
-
11334-65012-0 СтопорСтопор
-
12309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
13334-00131-0 Key MagnetoKey Magneto
