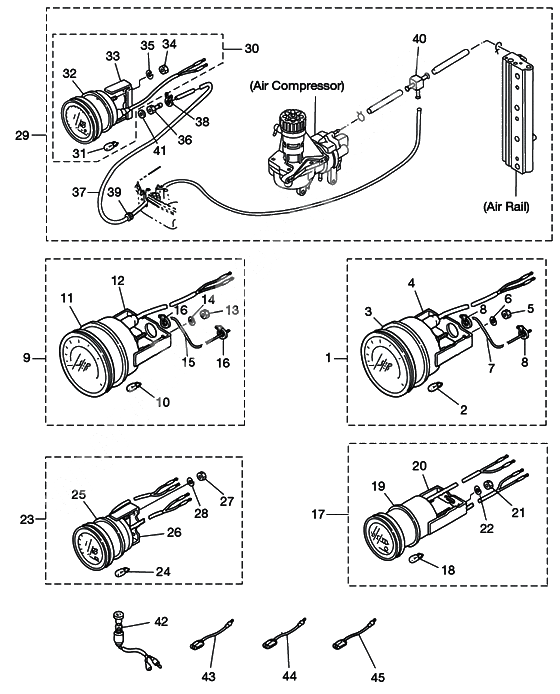

Optional parts (1) для Tohatsu MD70B - 2010 года выпуска`
-
№АртикулНазвание
-
13GF-72672-0 Speedometer - mech. - black (fse9297)Speedometer - mech. - black (fse9297)
-
13GL-72672-0 Speedometer - mech. - white (fse9296)Speedometer - mech. - white (fse9296)
-
13E0-72648-0 Speedometer 50mph Kit BSpeedometer 50mph Kit B
-
23B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
33B7-72656-0 Damper, MeterDamper, Meter
-
43B7-72661-0 Plate, FittingPlate, Fitting
-
5930203-0500 NutNut
-
6941303-0500 Spring WasherSpring Washer
-
73B7-72650-0 Tube, Speedometer 6000mmTube, Speedometer 6000mm
-
83B7-72651-0 Band, SpeedometerBand, Speedometer
-
93E0-72649-0 Speedometer 75mph Kit BSpeedometer 75mph Kit B
-
103B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
113B7-72656-0 Damper, MeterDamper, Meter
-
123B7-72661-0 Plate, FittingPlate, Fitting
-
13930203-0500 NutNut
-
14941303-0500 Spring WasherSpring Washer
-
153B7-72650-0 Tube, Speedometer 6000mmTube, Speedometer 6000mm
-
163B7-72651-0 Band, SpeedometerBand, Speedometer
-
173GF-72524-0 Hourmeter - digital 2in - black (fmh0214)Hourmeter - digital 2in - black (fmh0214)
-
173GL-72524-0 Hourmeter - digital 2in - white (fmh0213)Hourmeter - digital 2in - white (fmh0213)
-
173E0-72524-0 Hourmeter Ass'yHourmeter Ass'y
-
183B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
193B7-72655-0 Damper, MeterDamper, Meter
-
203B7-72664-0 Plate FittingPlate Fitting
-
21930203-0400 NutNut
-
22941303-0400 Spring WasherSpring Washer
-
233GF-72529-0 Voltmeter - black (fvp7157)Voltmeter - black (fvp7157)
-
233GL-72529-0 Voltmeter - white (fvp7156)Voltmeter - white (fvp7156)
-
233E0-72529-0 Voltmeter Ass'yVoltmeter Ass'y
-
243B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
253B7-72655-0 Damper, MeterDamper, Meter
-
263B7-72662-0 Plate, FittingPlate, Fitting
-
27930203-0400 NutNut
-
28941303-0400 Spring WasherSpring Washer
-
293GF-72598-0 Water pressure gauge - black (fop1124)Water pressure gauge - black (fop1124)
-
293GL-72598-0 Water pressure gauge - white (fop1128)Water pressure gauge - white (fop1128)
-
293E0-72527-0 Water Pressure Meter KitWater Pressure Meter Kit
-
303E0-72598-0 Water Pressure Meter Ass'yWater Pressure Meter Ass'y
-
313B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
323B7-72655-0 Damper, MeterDamper, Meter
-
333B7-72663-0 Plate, FittingPlate, Fitting
-
34930203-0500 NutNut
-
35941303-0500 Spring WasherSpring Washer
-
363B7-72641-0 Nipple, Water Pressure MeterNipple, Water Pressure Meter
-
3798AB50600-0 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000×6Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000×6 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
38338-02215-0 ClipClip
-
39345-67193-0 Grommet,16-2.5Grommet,16-2.5
-
40394-70013-0 Pipu Joint T-typePipu Joint T-type
-
41121-33159-0 Gasket 2-8-1Gasket 2-8-1
-
42353-72521-1 Switch Meter LampSwitch Meter Lamp
-
43353-72547-0 Assist Cord(blue)Assist Cord(blue)
-
44353-72548-0 Assist Cord(black)Assist Cord(black)
-
45353-72546-0 Assist Cord(Red)Assist Cord(Red)
