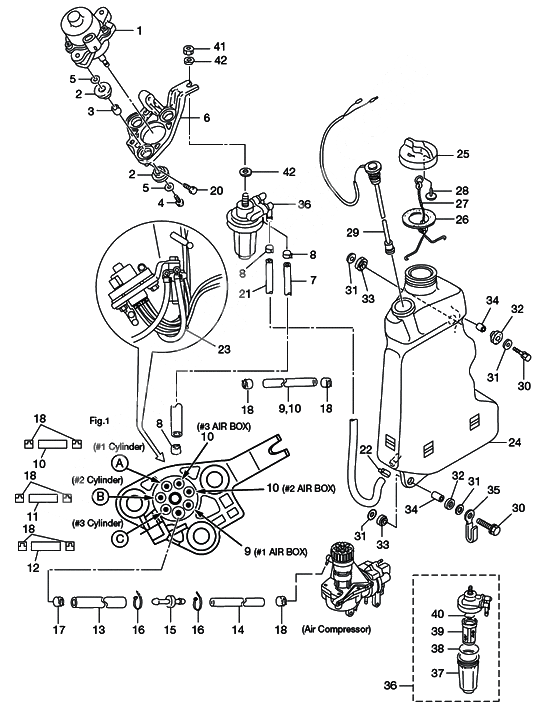

Oil pump для Tohatsu MD70B - 2010 года выпуска`
-
№АртикулНазвание
-
13T7-09010-0 Oil Pump Ass'yOil Pump Ass'y
-
2345-67113-0 Mount RubberMount Rubber
-
33C7-67114-1 Spacer 8.4-12-17Spacer 8.4-12-17
-
3C7-67114-0 Spacer 8.4-12-17Spacer 8.4-12-17
-
4910103-0835 BoltBolt
-
53B7-63730-0 WasherWasher
-
63T7-09072-0 Bracket, Oil PumpBracket, Oil Pump
-
799AA-6-0200 Oil pipe (1 ea.=1.5 meter/59.05 inches)
99AA-6-1000Oil pipe (1 ea.=1.5 meter/59.05 inches)
99AA-6-1000 -
99AA-6-1000 Oil pipe (1 ea.=1.5 meter/59.05 inches)Oil pipe (1 ea.=1.5 meter/59.05 inches)
-
83AB-35143-0 Clip @ 9.5Clip @ 9.5
-
999AA-2-0570 Vinyl pipe (1 ea.=1 meter)
OIL PUMP TO # 1 AIR BOX / 99AA-2-1000Vinyl pipe (1 ea.=1 meter)
OIL PUMP TO # 1 AIR BOX / 99AA-2-1000 -
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
1099AA-2-0390 Vinyl pipe (1 ea.=1 meter)
OIL PUMP TO # 1 CYLINDER & / # 2 AIR BOX & # 3 AIR BOX / 99AA-2-1000Vinyl pipe (1 ea.=1 meter)
OIL PUMP TO # 1 CYLINDER & / # 2 AIR BOX & # 3 AIR BOX / 99AA-2-1000 -
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
1199AA-2-0260 Vinyl pipe (1 ea.=1 meter)
OIL PUMP TO # 2 CYLINDER / 99AA-2-1000Vinyl pipe (1 ea.=1 meter)
OIL PUMP TO # 2 CYLINDER / 99AA-2-1000 -
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
1299AA-2-0180 Vinyl pipe (1 ea.=1 meter)
OIL PUMP TO # 3 CYLINDER / 99AA-2-1000Vinyl pipe (1 ea.=1 meter)
OIL PUMP TO # 3 CYLINDER / 99AA-2-1000 -
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
1399AA-4-0040 Vinyl pipe (1 ea.=1 meter)
99AA-4-1000Vinyl pipe (1 ea.=1 meter)
99AA-4-1000 -
99AA-4-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
1499AA-2-0440 Vinyl pipe (1 ea.=1 meter)
99AA-2-1000Vinyl pipe (1 ea.=1 meter)
99AA-2-1000 -
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
153T7-09076-0 Joint, Nipple
REDUCER NIPPLEJoint, Nipple
REDUCER NIPPLE -
163T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
17151-35002-0 ClipClip
-
183B7-09052-0 Clip 6.8Clip 6.8
-
369-70098-2 Clip 6.8Clip 6.8
-
193T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
20910103-7630 BoltBolt
-
2199AA-6-1470 Oil pipe (1 ea.=1.5 meter/59.05 inches)
99AA-6-1000×2Oil pipe (1 ea.=1.5 meter/59.05 inches)
99AA-6-1000×2 -
99AA-6-1000 Oil pipe (1 ea.=1.5 meter/59.05 inches)Oil pipe (1 ea.=1.5 meter/59.05 inches)
-
223AB-35143-0 Clip @ 9.5Clip @ 9.5
-
23369-84398-0 Band Lead Wire,158Band Lead Wire,158
-
243T9-71010-1 Oil TankOil Tank
-
253C8-71015-0 Cap Oil TankCap Oil Tank
-
263C8-71016-0 Gasket 36-52-2Gasket 36-52-2
-
273C8-71017-0 Hook Tank CapHook Tank Cap
-
283C8-71018-0 Check Valve Oil TankCheck Valve Oil Tank
-
293T9-71020-0 Oir Level SensorOir Level Sensor
-
30910103-6630 BoltBolt
-
31346-67115-0 WasherWasher
-
32346-67113-0 Mount RubberMount Rubber
-
333B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
34346-67114-1 SpacerSpacer
-
346-67114-0 SpacerSpacer
-
353T4-06972-1 ClampClamp
-
3T4-06972-0 ClampClamp
-
363C7-71030-0 Filter Ass'yFilter Ass'y
-
373B7-02237-0 CupCup
-
383B7-02235-0 O-Ring AO-Ring A
-
393C7-71033-0 FilterFilter
-
403B7-02236-0 O???? bO???? b
-
41930103-0800 NutNut
-
42940103-0800 Washer -> 940113-0800Washer -> 940113-0800
