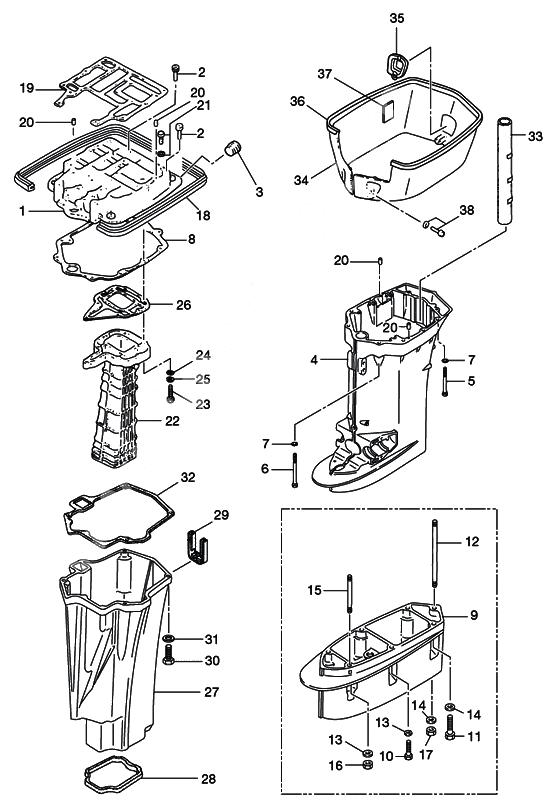

Drive shaft housing для Tohatsu MD70B - 2010 года выпуска
-
№АртикулНазвание
-
13T9Q01301-0 Engine base (amb)Engine base (amb)
-
3T9Q01301-1 Engine base (amb)Engine base (amb)
-
23B7-67179-0 Drain Plug, Engine BaseDrain Plug, Engine Base
-
33H6-07257-0 Exhaust PlugExhaust Plug
-
43T9Q61192-1 Drive shaft housing assy (l)Drive shaft housing assy (l)
-
53B7-61017-3 Bolt 8-105Bolt 8-105
-
63B7-61018-2 Bolt 8-115Bolt 8-115
-
3B7-61018-1 Bolt 8-115Bolt 8-115
-
79401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
83B7-61012-2 Gasket drive shaft housingGasket drive shaft housing
-
93B7Q61110-0 Extension housing ul (amb)
FOR TRANSOM ULExtension housing ul (amb)
FOR TRANSOM UL -
103T1-60001-0 Bolt 8-35
FOR TRANSOM ULBolt 8-35
FOR TRANSOM UL -
3T1-60001-1 Bolt 8-35Bolt 8-35
-
113B7-60001-4 Bolt
FOR TRANSOM ULBolt
FOR TRANSOM UL -
3B7-60001-5 BoltBolt
-
123B7-61112-1 Stud Bolt
FOR TRANSOM ULStud Bolt
FOR TRANSOM UL -
3B7-61112-0 Stud BoltStud Bolt
-
139401E3-0800 Washer
FOR TRANSOM ULWasher
FOR TRANSOM UL -
940103-0800 WasherWasher
-
149402E3-1000 Washer
FOR TRANSOM ULWasher
FOR TRANSOM UL -
159153E3-0825 Stud Bolt
FOR TRANSOM ULStud Bolt
FOR TRANSOM UL -
16930103-0800 Nut
FOR TRANSOM ULNut
FOR TRANSOM UL -
173B7-61114-0 Nut
FOR TRANSOM ULNut
FOR TRANSOM UL -
183B7-67116-0 Seal Rubber, Lower CoverSeal Rubber, Lower Cover
-
193B7-01303-4 Gasket engine baseGasket engine base
-
20345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
21910103-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
223B7-02311-0 Exhaust PipeExhaust Pipe
-
239101F4-0635 BoltBolt
-
910114-0635 BoltBolt
-
24940103-0600 WasherWasher
-
25941303-0600 New partNew part
-
263B7-02312-2 Gasket exhaust pipeGasket exhaust pipe
-
273D8-61180-0 Exhaust HousingExhaust Housing
-
283B7-61182-1 Grommet exhaust housingGrommet exhaust housing
-
293B7-61207-0 Grommet, Idle PortGrommet, Idle Port
-
30910103-0830 New partNew part
-
31940203-0800 WasherWasher
-
323B7-61181-2 GasketGasket
-
333B7-61186-0 Reverse Gas PassageReverse Gas Passage
-
343C7Q61210-1 Splash pan (amb)Splash pan (amb)
-
353C7-61212-0 Grommet,splash panGrommet,splash pan
-
363E0-61213-0 Seal Rubber Splash PanSeal Rubber Splash Pan
-
373C7-61216-0 Set rubber,splash panSet rubber,splash pan
-
389101E3-5612 Bolt & washerBolt & washer
