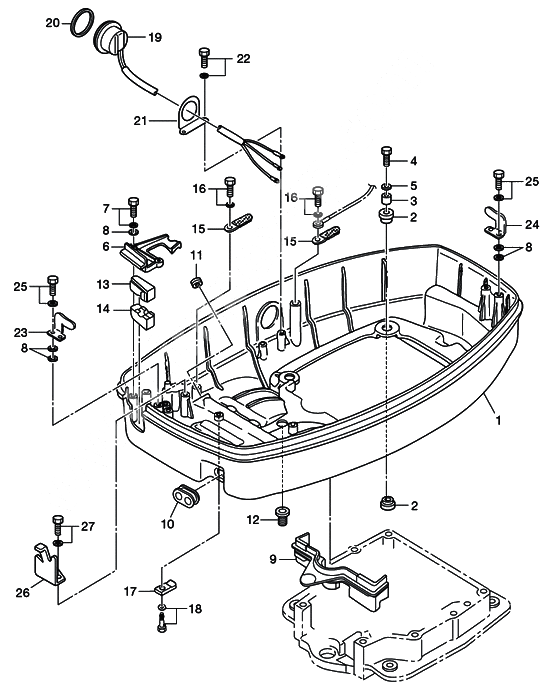

Bottom cowl (motor cover lower) для Tohatsu MD70B - 2010 года выпуска`
-
№АртикулНазвание
-
13C7Q67100-1 Lower motor cover (amb)
MOTOR COVER (LOWER)Lower motor cover (amb)
MOTOR COVER (LOWER) -
2345-67113-0 Mount RubberMount Rubber
-
33C7-67114-1 Spacer 8.4-12-17Spacer 8.4-12-17
-
3C7-67114-0 Spacer 8.4-12-17Spacer 8.4-12-17
-
49101E3-0835 BoltBolt
-
53B7-63730-0 WasherWasher
-
63T9Q76118-0 Clamp cord (ABM)Clamp cord (ABM)
-
7910103-6625 BoltBolt
-
8940103-0600 WasherWasher
-
93C7-67164-0 Grommet A Lower CoverGrommet A Lower Cover
-
103C7-67160-0 Grommet oil pipeGrommet oil pipe
-
113C7-77156-0 GrommetGrommet
-
12345-66226-0 Grommet, 17-3Grommet, 17-3
-
133C7-83732-0 Grommet Remote Control CableGrommet Remote Control Cable
-
143C7-76116-0 Grommet CordGrommet Cord
-
15398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
16910103-6612 BoltBolt
-
173C7-72577-0 ClampClamp
-
18910103-5616 BoltBolt
-
193E0-72615-0 Switch b ass'y p-t/tSwitch b ass'y p-t/t
-
203F3-72616-1 Gasket Ptt Switch Ass'yGasket Ptt Switch Ass'y
-
213F3-72617-1 Bracket,PTT Switch Ass'yBracket,PTT Switch Ass'y
-
22910103-6614 BoltBolt
-
23353-67512-0 Cover stay(front)Cover stay(front)
-
24353-67513-0 Cover stay(rear)Cover stay(rear)
-
25910103-6618 BoltBolt
-
263T9-83720-0 Cable,clipCable,clip
-
27910103-6616 BoltBolt
