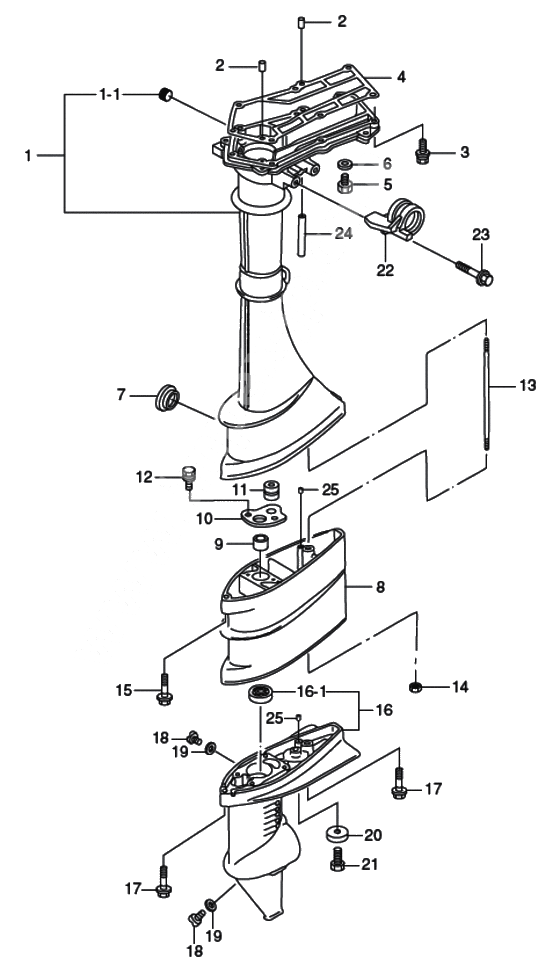

Drive shaft housing & gear case для Tohatsu MFS2.5B - 2009 года выпуска`
-
№АртикулНазвание
-
13ABQ61020-1 Drive shaft housing insin f2.5ab/3.5abDrive shaft housing insin f2.5ab/3.5ab
-
3ABQ61020-2 Drive shaft housing insin f2.5ab/3.5abDrive shaft housing insin f2.5ab/3.5ab
-
1-13H6-07257-0 Exhaust PlugExhaust Plug
-
2345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
39101E3-5630 Bolt
OR 910113-5630Bolt
OR 910113-5630 -
910103-5630 BoltBolt
-
43AB-61012-0 Drive Shaft Housing GasketDrive Shaft Housing Gasket
-
59106E3-0808 Water Plug
OR 910613-0808Water Plug
OR 910613-0808 -
6332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
7369-61016-0 Grommet Drive Shaft HousingGrommet Drive Shaft Housing
-
83ABQ61100-0 Extension housing inlin f2.5ab/3.5ab
FOR TRANSOM LExtension housing inlin f2.5ab/3.5ab
FOR TRANSOM L -
93AB-60003-0 Drive shaft bushing
FOR TRANSOM LDrive shaft bushing
FOR TRANSOM L -
103AB-64332-0 Drive shaft bushing stopper
FOR TRANSOM LDrive shaft bushing stopper
FOR TRANSOM L -
11172-36008-0 Grommet
FOR TRANSOM LGrommet
FOR TRANSOM L -
129101E3-5612 Bolt & washer
FOR TRANSOM L / (OR 910113-5612)Bolt & washer
FOR TRANSOM L / (OR 910113-5612) -
133F0-61101-1 Stud Bolt
FOR TRANSOM LStud Bolt
FOR TRANSOM L -
149301E3-0600 Nut
FOR TRANSOM L / (OR 930113-0600)Nut
FOR TRANSOM L / (OR 930113-0600) -
930103-0600 NutNut
-
153AB-60001-1 Bolt 6-30 precoated
FOR TRANSOM LBolt 6-30 precoated
FOR TRANSOM L -
163BMQ60000-1 Gear case f2.5ab/3.5ab
OR 3BMQ60000-0Gear case f2.5ab/3.5ab
OR 3BMQ60000-0 -
3BMQ60000-0 Gear case f2.5ab/3.5abGear case f2.5ab/3.5ab
-
16-13AB-60213-0 Ball bearing 6000Ball bearing 6000
-
173AB-60001-1 Bolt 6-30 precoated
061547XH~Bolt 6-30 precoated
061547XH~ -
18332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
19332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
20338-60218-2 New partNew part
-
21910103-0616 BoltBolt
-
223ABQ62001-1 # 030015XH~
# 030015XH~# 030015XH~
# 030015XH~ -
239101E3-5835 Bolt & washer
OR 910113-5835Bolt & washer
OR 910113-5835 -
2498AB-3-0050 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
253AB-01111-0 Dowel Pin 6-12Dowel Pin 6-12
