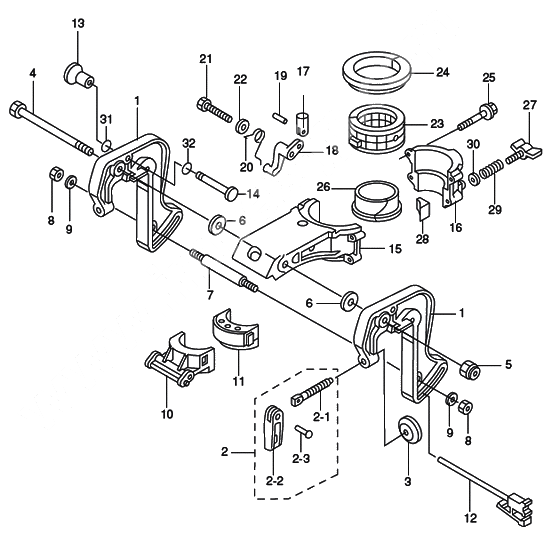

Clamp bracket & swivel bracket для Tohatsu MFS2.5B - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    3ABQ62111-2 NEW (FOR FIG. 13-31 O-RING) / # 036145XG~
    NEW (FOR FIG. 13-31 O-RING) / # 036145XG~
    NEW (FOR FIG. 13-31 O-RING) / # 036145XG~
    NEW (FOR FIG. 13-31 O-RING) / # 036145XG~
  • 1
    3ABQ62111-1 Clamp bracket (see note)
    OLD (FOR FIG. 13-32 O-RING) / # 031347XG~# 031578XG
    Clamp bracket (see note)
    OLD (FOR FIG. 13-32 O-RING) / # 031347XG~# 031578XG
  • 3ABQ62111-2 Clamp bracket (see note)
    Clamp bracket (see note)
  • 1
    3ABQ62111-0 Clamp bracket (see note)
    OLD (WITHOUT O-RING) / ~# 031346XG
    Clamp bracket (see note)
    OLD (WITHOUT O-RING) / ~# 031346XG
  • 3ABQ62111-2 Clamp bracket (see note)
    Clamp bracket (see note)
  • 2-2
    3AB-62102-0 Clamp screw handle (amb)
    Clamp screw handle (amb)
  • 3ABQ62102-0 Clamp screw handle (amb)
    Clamp screw handle (amb)
  • 2-3
    3C8-62104-2 Rivet
    OR 3C8-62104-1
    Rivet
    OR 3C8-62104-1
  • 3C8-62104-1 Rivet
    Rivet
  • 3
    332-62101-1 Pad clamp screw (threaded style)
    Pad clamp screw (threaded style)
  • 4
    309-62115-2 Bolt 8-122
    Bolt 8-122
  • 5
    930403-0800 Nylon Nut
    Nylon Nut
  • 6
    307-62116-1 Washer
    Washer
  • 7
    309-62117-1 OLD PART NO. 309-62118-0
    OLD PART NO. 309-62118-0
    OLD PART NO. 309-62118-0
    OLD PART NO. 309-62118-0
  • 8
    9301E3-0600 Nut
    OR 930113-0600
    Nut
    OR 930113-0600
  • 930103-0600 Nut
    Nut
  • 9
    9401E3-0600 Washer
    OR 940113-0600
    Washer
    OR 940113-0600
  • 940113-0600 Washer
    Washer
  • 10
    3AB-62212-0 Thrust supporter
    Thrust supporter
  • 11
    3AB-61336-1 3AB-61336-1
    3AB-61336-1
  • 12
    3F0-62160-0 Thrust Rod Ass'y
    Thrust Rod Ass'y
  • 13
    309-62463-0 Knob Tilt Stopper
    Knob Tilt Stopper
  • 14
    3AB-62464-3 Tilt stopper 10 (without o-ring)
    NEW / # 036145XG~
    Tilt stopper 10 (without o-ring)
    NEW / # 036145XG~
  • 3AB-62464-0 Tilt stopper 10 (without o-ring)
    Tilt stopper 10 (without o-ring)
  • 14
    309-62464-0 Tilt Stopper
    OLD / ~# 031346XG
    Tilt Stopper
    OLD / ~# 031346XG
  • 15
    3ABQ62391-1 3ABQ62391-1
    3ABQ62391-1
  • 16
    3ABQ62392-1 3ABQ62392-1
    3ABQ62392-1
  • 17
    3AB-66334-1 Steering stopper
    Steering stopper
  • 3AB-66334-0 Steering stopper
    Steering stopper
  • 18
    3AB-63068-0 Lever
    Lever
  • 19
    951403-0212 Spring Washer
    Spring Washer
  • 20
    3AB-66336-0 Spring
    Spring
  • 21
    9161E3-0650 Bolt
    OR 916113-0650
    Bolt
    OR 916113-0650
  • 22
    9401E3-0600 Washer
    OR 940113-0600
    Washer
    OR 940113-0600
  • 940113-0600 Washer
    Washer
  • 23
    393-62416-0 Bushing Upper, Steering
    Bushing Upper, Steering
  • 24
    3H6-62325-0 Thrust Bushing
    Thrust Bushing
  • 25
    3V1-60001-1 Bolt 6-35 precoated
    Bolt 6-35 precoated
  • 3V2-60001-0 Bolt 6-35 precoated
    Bolt 6-35 precoated
  • 26
    3AB-62321-1 Pivot bushing (black)
    NEW / # 022154XG~
    Pivot bushing (black)
    NEW / # 022154XG~
  • 26
    309-62321-1 Pivot bushing
    OLD / ~# 016969XG
    Pivot bushing
    OLD / ~# 016969XG
  • 27
    309Q62442-2 Steering adjust screw
    Steering adjust screw
  • 28
    309-62441-2 Friction Piece
    Friction Piece
  • 29
    309-62446-1 Spring Steering Friction
    Spring Steering Friction
  • 30
    9401E3-0600 Washer
    OR 940113-0600
    Washer
    OR 940113-0600
  • 940113-0600 Washer
    Washer
  • 31
    301-66023-0 O-Ring
    NEW / # 036145XG~
    O-Ring
    NEW / # 036145XG~
  • 32
    3AB-10164-0 O-ring, 1.25-8
    OLD
    O-ring, 1.25-8
    OLD
