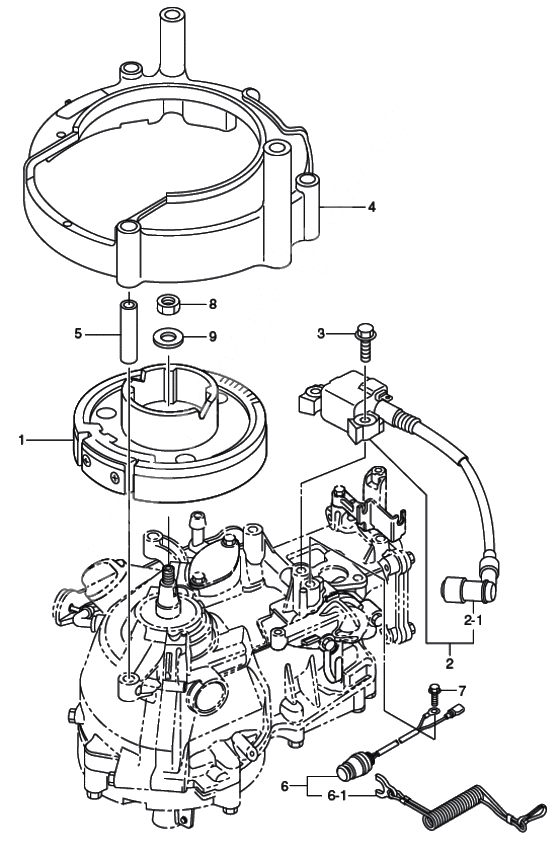

Magneto для Tohatsu MFS2.5B - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    3GT-06001-0 Flywheel cup
    3.5B/2.5B/2B~ / MARK: MF5494
    Flywheel cup
    3.5B/2.5B/2B~ / MARK: MF5494
  • 1
    3AB-06001-0 Flywheel cup f2.5a/3.5a
    3.5A/2.5A/2A
    Flywheel cup f2.5a/3.5a
    3.5A/2.5A/2A
  • 2
    3GT-06041-0 Igniter
    3.5B/2.5B/2B~ / MARK: IU3123
    Igniter
    3.5B/2.5B/2B~ / MARK: IU3123
  • 2
    3AB-06041-0 Ignition Coil
    3.5A/2.5A/2A / [2A ~#016969XG (DOMESTIC ONLY)]
    Ignition Coil
    3.5A/2.5A/2A / [2A ~#016969XG (DOMESTIC ONLY)]
  • 2-1
    3H6-06999-0 Plug Cap (Registance)
    Plug Cap (Registance)
  • 3
    910103-5625 Bolt
    3.5B/2.5B/2B~
    Bolt
    3.5B/2.5B/2B~
  • 3
    910103-5620 Bolt
    3.5A/2.5A/2A
    Bolt
    3.5A/2.5A/2A
  • 4
    3AB-06300-1 Flywheel cover
    Flywheel cover
  • 3AB-06300-0 Flywheel cover
    Flywheel cover
  • 5
    3AB-06303-1 Collar, 6.2 - 9 - 35
    Collar, 6.2 - 9 - 35
  • 3AB-06303-0 Collar, 6.2 - 9 - 35
    Collar, 6.2 - 9 - 35
  • 6
    3AS-06870-0 Stop switch assy
    3.5B/2.5B/2B~
    Stop switch assy
    3.5B/2.5B/2B~
  • 3GR-06870-0 Stop switch assy
    Stop switch assy
  • 6
    3D5-06870-0 Stop switch ass'y f
    3.5A/2.5A/2A
    Stop switch ass'y f
    3.5A/2.5A/2A
  • 6-1
    353-06821-0 Lock, lanyard stop switch
    Lock, lanyard stop switch
  • 7
    910103-5612 Bolt
    Bolt
  • 8
    309-00132-0 Nut, Magneto
    Nut, Magneto
  • 9
    940121-1000 Washer
    Washer
