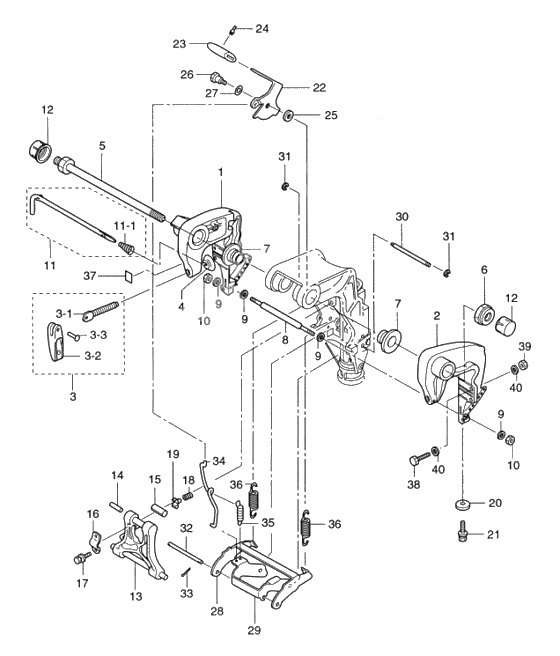

Clamp bracket & reverse lock для Tohatsu MFS9.9C - 2008 года выпуска`
-
№АртикулНазвание
-
13BJQ62112-0 Clamp bracket right (starboard)
STARBOARDClamp bracket right (starboard)
STARBOARD -
23BJQ62113-0 Clamp bracket left (port)
PORTClamp bracket left (port)
PORT -
33AAQ62100-0 Clamp screw assy (amb)Clamp screw assy (amb)
-
3AAQ62105-0 Clamp screw assy (amb)Clamp screw assy (amb)
-
3-13AA-62103-0 Винт струбцины
M14 P2.0Винт струбцины
M14 P2.0 -
3-2332Q62102-1 Handle clamp screwHandle clamp screw
-
3-33C8-62104-1 Rivet3-22Rivet3-22
-
3-33C8-62104-2 Rivet
OR 3C8-62104-1Rivet
OR 3C8-62104-1 -
3C8-62104-1 RivetRivet
-
4332-62101-0 Pad clamp screwPad clamp screw
-
53AC-62191-0 Swivel bracket bolt
BRACKET BOLT OR 346-62191-0Swivel bracket bolt
BRACKET BOLT OR 346-62191-0 -
6346-62124-1 Bracket nutBracket nut
-
7349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
83V6-62117-0 Distance PieceDistance Piece
-
9940113-0600 Washer
OR 940113-0600Washer
OR 940113-0600 -
99401E3-0600 Washer
OR 940113-0600Washer
OR 940113-0600 -
940113-0600 WasherWasher
-
10930103-0600 Nut
OR 930113-0600Nut
OR 930113-0600 -
109301E3-0600 Nut
OR 930113-0600Nut
OR 930113-0600 -
930103-0600 NutNut
-
113BJ-62123-0 Thrust rod assy (w-spring)Thrust rod assy (w-spring)
-
11-1369-62122-2 Spring Thrust RodSpring Thrust Rod
-
12346-62127-0 Cap,Bracket Bolt
FOR MF & EFCap,Bracket Bolt
FOR MF & EF -
133G2Q62993-1 Tilt stopper (amb)
OLD PART NO. 3G2Q62431-0Tilt stopper (amb)
OLD PART NO. 3G2Q62431-0 -
14951403-0540 Spring PinSpring Pin
-
951403-0535 Spring PinSpring Pin
-
15350-62437-0 Bushing Tilt StopperBushing Tilt Stopper
-
16350-62439-0 Set plateSet plate
-
350-62439-1 Set plateSet plate
-
17910103-5818 Bolt
OR 910113-5818Bolt
OR 910113-5818 -
179101E3-5818 Bolt
OR 910113-5818Bolt
OR 910113-5818 -
910103-5818 BoltBolt
-
183C8-62421-1 Spring Friction PlateSpring Friction Plate
-
19346-62438-0 Set PieceSet Piece
-
20338-60218-2 New partNew part
-
21910103-5620 BoltBolt
-
223G2-66311-0 Lever reverse lockLever reverse lock
-
233AL-66333-0 Lock lever grip
OR 346-66333-0Lock lever grip
OR 346-66333-0 -
24346-66334-0 StopperStopper
-
253R0-66308-0 WasherWasher
-
263V9-05254-0 Shoulder bolt 6-8Shoulder bolt 6-8
-
27941403-0800 WasherWasher
-
283G2-66351-0 Reverse LockReverse Lock
-
293G2-66313-1 Arm reverse lockArm reverse lock
-
303G2-66319-1 Shaft reverse lock aShaft reverse lock a
-
31945303-0600 E-RingE-Ring
-
323G2-66321-0 Rod reverse lock aRod reverse lock a
-
33951503-0212 Split PinSplit Pin
-
343G2-66312-0 Link reverse lock aLink reverse lock a
-
35350-66315-0 Spring reverse lockSpring reverse lock
-
363G2-66331-0 Spring, reverse lockSpring, reverse lock
-
373H8-72049-0 LabeLabe
-
38916124-0885 Bolt
OR 916113-0885 OPTIONBolt
OR 916113-0885 OPTION -
389161E3-0885 Bolt
OR 916113-0885 / OPTIONBolt
OR 916113-0885 / OPTION -
39930103-0800 Nut
OR 930113-0800 OPTIONNut
OR 930113-0800 OPTION -
399301E3-0800 Nut
OR 930113-0800 / OPTIONNut
OR 930113-0800 / OPTION -
930103-0800 NutNut
-
40940113-0800 Washer
OR 940113-0800 OPTIONWasher
OR 940113-0800 OPTION -
409401E3-0800 Washer
OR 940113-0800 / OPTIONWasher
OR 940113-0800 / OPTION -
940103-0800 WasherWasher
