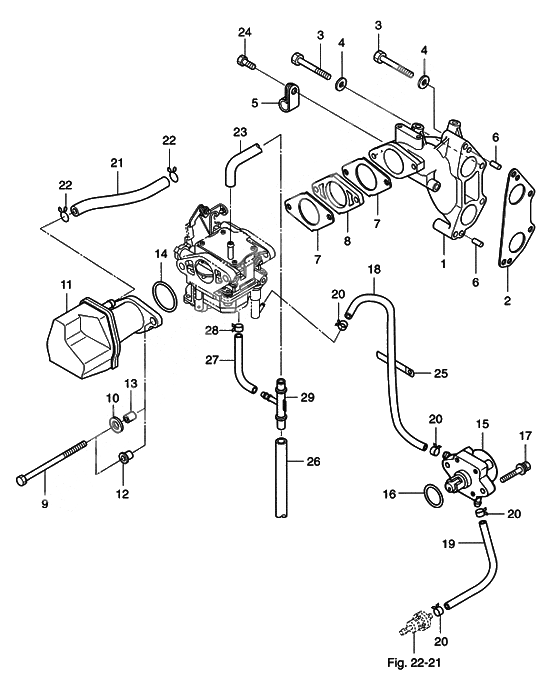

Intake manifold & fuel pump для Tohatsu MFS9.9C - 2008 года выпуска`
-
№АртикулНазвание
-
13BJ-02091-0 Intake manifoldIntake manifold
-
23BJ-02104-0 Gasket intake manifoldGasket intake manifold
-
3916114-0645 BoltBolt
-
39161F4-0645 Bolt
OR 916114-0645Bolt
OR 916114-0645 -
916114-0645 BoltBolt
-
4940113-0600 Washer
OR 940113-0600Washer
OR 940113-0600 -
49401E3-0600 Washer
OR 940113-0600Washer
OR 940113-0600 -
940113-0600 WasherWasher
-
5345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
6345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
73BJ-02011-0 Gasket carburetorGasket carburetor
-
83FS-03952-0 InsulatorInsulator
-
93R0-03215-0 Bolt,6-100Bolt,6-100
-
10940113-0600 Washer
OR 940113-0600 FOR EPWasher
OR 940113-0600 FOR EP -
109401E3-0600 Washer
OR 940113-0600 / FOR EP/EPTWasher
OR 940113-0600 / FOR EP/EPT -
940113-0600 WasherWasher
-
113BJ-02409-0 Intake silencerIntake silencer
-
123BJ-06283-0 Collar 6.1-14-8.9
FOR MF & EFCollar 6.1-14-8.9
FOR MF & EF -
133A0-76079-0 Collar, 6.2-9-7.5
FOR EPCollar, 6.2-9-7.5
FOR EP -
143BJ-02419-0 Seal ring 2.4-35Seal ring 2.4-35
-
153H8-04000-1 Fuel Pump Ass'yFuel Pump Ass'y
-
17910113-5625 Bolt
OR 910113-5625Bolt
OR 910113-5625 -
179101E3-5625 Bolt & washer
OR 910113-5625Bolt & washer
OR 910113-5625 -
1898AB-5-0260 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
1898AB-5-1000 New partNew part
-
1998AB-5-0120 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
1998AB-5-1000 New partNew part
-
20369-02230-0 Фильтр топливныйФильтр топливный
-
203AB-35143-0 Clip @ 9.5Clip @ 9.5
-
213AB-35143-0 Clip @ 9.5Clip @ 9.5
-
2198AB-7-0120 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
FOR BREATHERFuel pipe 7mm/5/16in (1 ea.=1 meter)
FOR BREATHER -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
223C7-02215-0 ClipClip
-
2298AB-7-1000 Rubber pipe
FOR BREATHERRubber pipe
FOR BREATHER -
233BJ-07735-1 Breather hose (l=290mm)
L=290 / FOR CARBURETORBreather hose (l=290mm)
L=290 / FOR CARBURETOR -
3BJ-07735-0 Breather hose (l=290mm)Breather hose (l=290mm)
-
233C7-02215-0 ClipClip
-
243BJ-07735-0 Breather hose (l=290mm)
FOR CARBURETORBreather hose (l=290mm)
FOR CARBURETOR -
24910103-5612 BoltBolt
-
25309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
25910103-5612 BoltBolt
-
263BA-07735-0 Breather hose (l=50mm)
L=50 / FOR CARBURETORBreather hose (l=50mm)
L=50 / FOR CARBURETOR -
2798AL-3-0200 Hose - local purchaseHose - local purchase
-
28369-70098-1 Clip 6.8Clip 6.8
-
293BJ-01176-0 NippleNipple
