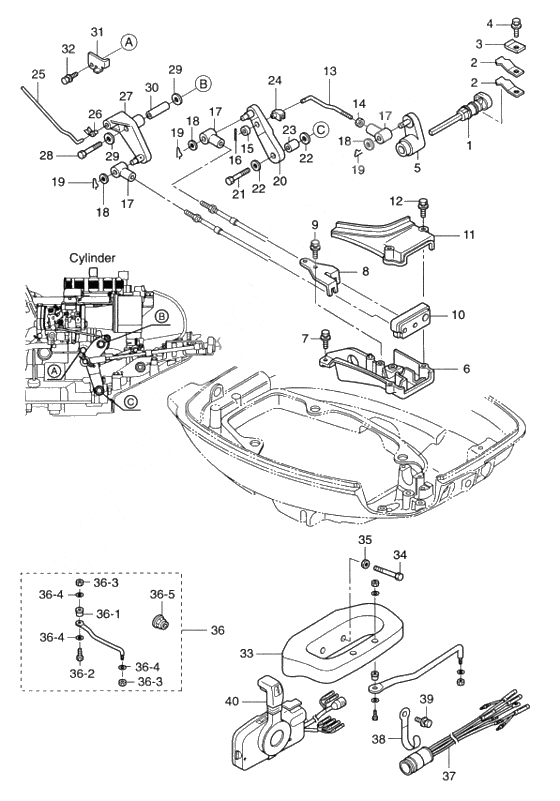

Shift (for ep model) для Tohatsu MFS9.9C - 2008 года выпуска`
-
№АртикулНазвание
-
13BJ-66130-0 Shaft shift leverShaft shift lever
-
23Y1-66113-0 Stopper shift leverStopper shift lever
-
33BA-66117-0 Plate shift lever stopperPlate shift lever stopper
-
4910103-5614 Bolt
OR 910113-5614Bolt
OR 910113-5614 -
49101E3-5614 Bolt
OR 910113-5614Bolt
OR 910113-5614 -
910103-5614 BoltBolt
-
53R3-66128-0 Shift Arm, Remote Control
FOR EPShift Arm, Remote Control
FOR EP -
63R3Q67482-0 Rc control bracket (aqua marine blue)Rc control bracket (aqua marine blue)
-
7910113-5620 Bolt
OR 910113-5620Bolt
OR 910113-5620 -
79101E3-5620 Bolt & washer
OR 910113-5620Bolt & washer
OR 910113-5620 -
83R3-83820-0 Bracket, Cable
FOR EPBracket, Cable
FOR EP -
9910113-5616 Bolt
OR 910113-5616Bolt
OR 910113-5616 -
99101E3-5616 Bolt & washer
OR 910113-5616Bolt & washer
OR 910113-5616 -
103R3-83732-0 Втулка кабеляВтулка кабеля
-
113R3-67483-1 Cover, Remote Control BracketCover, Remote Control Bracket
-
123BJ-67485-0 Bolt 5-35 (with washer)Bolt 5-35 (with washer)
-
133BJ-66134-0 Rod Shift Lever
FOR EPRod Shift Lever
FOR EP -
14930103-0500 NutNut
-
153BJ-66138-0 Spacer 5-9.5-5Spacer 5-9.5-5
-
16951503-0212 Split Pin
FOR EPSplit Pin
FOR EP -
173B7-83715-1 Cable JointCable Joint
-
3B7-83715-2 Cable JointCable Joint
-
183AA-83719-0 Washer
OR 353-83719-0Washer
OR 353-83719-0 -
19951603-0800 R-Pin
FOR EPR-Pin
FOR EP -
203R3-66129-0 Shift Lever, Remote ControlShift Lever, Remote Control
-
21910103-0625 Bolt
OR 910113-0625Bolt
OR 910113-0625 -
219101E3-0625 Bolt
OR 910113-0625Bolt
OR 910113-0625 -
910103-0625 BoltBolt
-
223R0-66308-0 WasherWasher
-
23353-76079-0 Collar 6.2-9-9.3
FOR EPCollar 6.2-9-9.3
FOR EP -
243C8-63733-0 Rod Snap 5-3Rod Snap 5-3
-
253R3-63709-0 Throttle Rod, Remote ControlThrottle Rod, Remote Control
-
26346-67196-1 Rod Snap 3-bRod Snap 3-b
-
273R3-83910-0 Throttle Lever, Remote Control
FOR EPThrottle Lever, Remote Control
FOR EP -
28910103-0645 Bolt
OR 910113-0645Bolt
OR 910113-0645 -
289101E3-0645 Bolt
OR 910113-0645Bolt
OR 910113-0645 -
910103-0645 BoltBolt
-
293R0-66308-0 WasherWasher
-
303R3-83913-0 Втулка тяги КПП
FOR EPВтулка тяги КПП
FOR EP -
303R3-83913-1 Collar
OR 3R3-83913-0Collar
OR 3R3-83913-0 -
3R3-83913-0 CollarCollar
-
313BJ-83914-0 Stopper throttle leverStopper throttle lever
-
32910113-5616 Bolt
OR 910113-5616Bolt
OR 910113-5616 -
329101E3-5616 Bolt & washer
OR 910113-5616Bolt & washer
OR 910113-5616 -
333V5Q62001-0 Steering bracket (amb)
FOR EPSteering bracket (amb)
FOR EP -
34916124-1045 Bolt
OR 916113-1045Bolt
OR 916113-1045 -
349161E3-1045 Bolt
OR 916113-1045Bolt
OR 916113-1045 -
916113-1045 BoltBolt
-
35940103-1000 Washer
OR 940113-1000Washer
OR 940113-1000 -
359401E3-1000 Washer
OR 940113-1000Washer
OR 940113-1000 -
363E0-84905-0 Drag link assyDrag link assy
-
36-13E0-84914-0 Spacer Drag Link H
FOR EPSpacer Drag Link H
FOR EP -
36-23E0-84917-0 Bolt 3/8-50Bolt 3/8-50
-
36-3353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
36-4353-84916-0 WasherWasher
-
36-53F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
-
373BJ-76110-0 Cord assyCord assy
-
383Z5-06972-0 Clamp
FIG 9-28Clamp
FIG 9-28 -
383Z5-06972-1 Clamp 6.5-120p
OR 3Z5-06972-0 / FIG 9-28Clamp 6.5-120p
OR 3Z5-06972-0 / FIG 9-28 -
3Z5-06972-0 Clamp 6.5-120pClamp 6.5-120p
-
39910113-5612 Bolt
OR 910113-5612 FIG 9-29Bolt
OR 910113-5612 FIG 9-29 -
399101E3-5612 Bolt & washer
OR 910113-5612 / FIG 9-29Bolt & washer
OR 910113-5612 / FIG 9-29 -
403B7Q84330-2 Remote control box (rc5a) mfs8-30b w/ptt
FOR EPT / TOHATSURemote control box (rc5a) mfs8-30b w/ptt
FOR EPT / TOHATSU -
3ACQ84330-0 Remote control box (rc5a) mfs8-30b w/pttRemote control box (rc5a) mfs8-30b w/ptt
-
403B7Q84340-2 Rc box rc5b (mfs-15/18b2-15/20c-25b/30b ep) w/o ptt amb
TOHATSURc box rc5b (mfs-15/18b2-15/20c-25b/30b ep) w/o ptt amb
TOHATSU -
3B7Q84340-3 Rc box rc5b (mfs-15/18b2-15/20c-25b/30b ep) w/o ptt ambRc box rc5b (mfs-15/18b2-15/20c-25b/30b ep) w/o ptt amb
-
403B1Q84330-3 Remote control box (rc5a) nsf8-30b w/ptt
FOR EPT / NISSANRemote control box (rc5a) nsf8-30b w/ptt
FOR EPT / NISSAN -
3AFQ84330-0 Remote control box (rc5a) nsf8-30b w/pttRemote control box (rc5a) nsf8-30b w/ptt
-
403B1Q84340-3 Rc box rc5b (nsf-15/18b2-15/20c-25b/30b ep) w/o ptt amb
NISSANRc box rc5b (nsf-15/18b2-15/20c-25b/30b ep) w/o ptt amb
NISSAN
