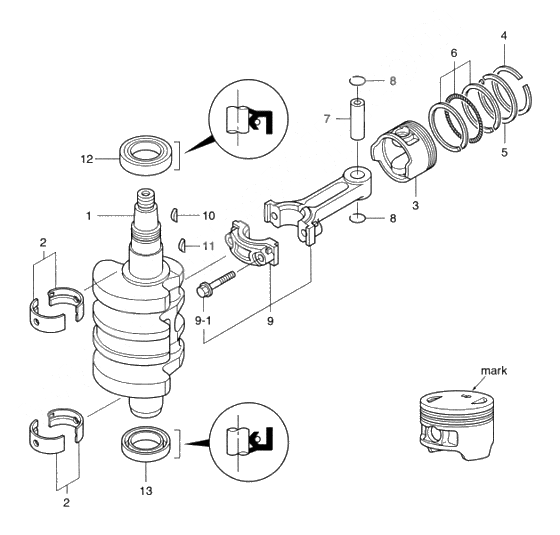

Piston & crank shaft для Tohatsu MFS15C - 2008 года выпуска`

№

Артикул

Название
1

3BJ-00030-0 Crankshaft assy

Crankshaft assy

34 700 ₽
2

3AE-07407-0 Bearing (red)
T=1.5 -0.006

Bearing (red)
T=1.5 -0.006

1 450 ₽
2

3AE-07408-0 Bearing (blue)
T=1.5 -0.012

Bearing (blue)
T=1.5 -0.012

1 530 ₽
3

3AE-00001-0 Piston std f9.9c/15c/20c

Piston std f9.9c/15c/20c

4 740 ₽
4

3AC-00011-0 Top ring

Top ring

1 820 ₽
5

3AC-00012-0 2-nd ring

2-nd ring

1 540 ₽
6

3AC-00013-0 3-d ring

3-d ring

1 540 ₽
7

3AE-00021-0 Piston Pin
OR 3H6-00021-0

Piston Pin
OR 3H6-00021-0

1 400 ₽
8

3H6-00024-0 Clip, Piston Pin

Clip, Piston Pin

230 ₽
9

3R0-00040-0 Conncting Rod Ass'y

Conncting Rod Ass'y

5 040 ₽
9-1

3H6-00059-0 Bolt, Connecting Rod

Bolt, Connecting Rod

880 ₽
10

3T5-10131-0 Key, Drive Pulley
T=4 FOR MAGNETO

Key, Drive Pulley
T=4 FOR MAGNETO

480 ₽
11

309-00131-0 Key, Magneto
T=3 FOR DRIVE PULLEY

Key, Magneto
T=3 FOR DRIVE PULLEY

200 ₽
12

3BJ-00121-0 Oil seal 36-50-7
UPPER

Oil seal 36-50-7
UPPER

2 090 ₽
13

3R3-00121-0 Oil Seal, 32-44-9
LOWER

Oil Seal, 32-44-9
LOWER

1 840 ₽
