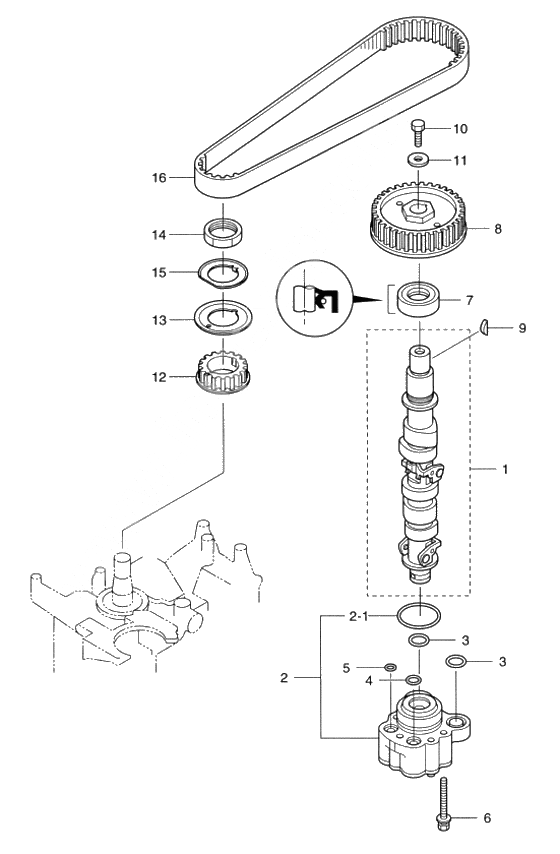

Camshaft & oil pump для Tohatsu MFS15C - 2008 года выпуска`
-
№АртикулНазвание
-
13BK-07810-0 Camshaft assyCamshaft assy
-
23H8-07600-0 Oil Pump A'ssyOil Pump A'ssy
-
2-13H8-07639-0 O-ring Oil PumpO-ring Oil Pump
-
33H8-07635-0 O-RingO-Ring
-
43H8-07632-0 O-RingO-Ring
-
53H8-07631-0 O-RingO-Ring
-
6910114-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
69101F4-5635 Bolt & washer
OR 910114-5635Bolt & washer
OR 910114-5635 -
9101E3-5635 Bolt & washerBolt & washer
-
73H8-07025-0 Oil Seal,18-35-8Oil Seal,18-35-8
-
83H8-10062-2 Driven Pulley
CAMSHAFT PULLEYDriven Pulley
CAMSHAFT PULLEY -
9309-00131-0 Key, Magneto
T=3Key, Magneto
T=3 -
103AA-60108-0 Pre-Coated BoltPre-Coated Bolt
-
113H8-10066-0 WasherWasher
-
123BJ-10060-0 Drive Pulley
TIMING PULLEYDrive Pulley
TIMING PULLEY -
133BJ-10063-0 Belt GuideBelt Guide
-
143T5-10068-2 Nut pulleyNut pulley
-
153BJ-10069-0 Lock WasherLock Washer
-
163H8-10061-0 Timing BeltTiming Belt
