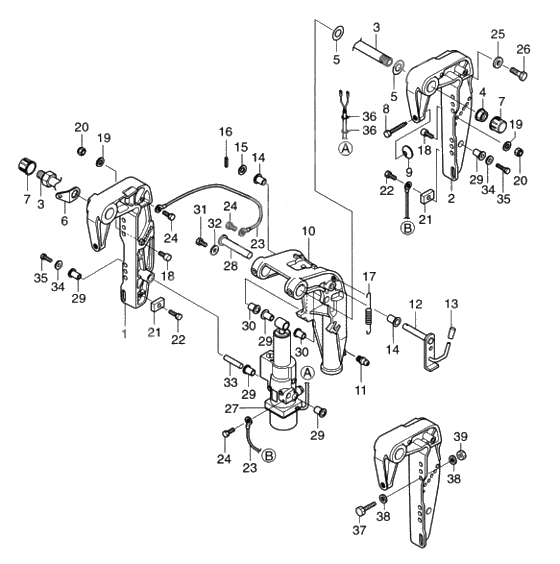

Bracket (power tilt) для Tohatsu MFS15C - 2008 года выпуска`
-
№АртикулНазвание
-
13Z0Q77211-2 Clamp bracket (ptt right) starboard
STARBOARDClamp bracket (ptt right) starboard
STARBOARD -
23Z0Q77212-0 Clamp bracket (ptt left) port
PORTClamp bracket (ptt left) port
PORT -
33AC-62191-0 Swivel bracket boltSwivel bracket bolt
-
4346-62124-1 Bracket nutBracket nut
-
53AA-62116-0 Washer
NYLONWasher
NYLON -
63AA-62114-1 Plate
OR 3AA-62114-0Plate
OR 3AA-62114-0 -
3AA-62114-0 PlatePlate
-
7346-62127-0 Cap,Bracket Bolt
FOR EFTCap,Bracket Bolt
FOR EFT -
83C8-77214-0 Винт струбцины
M14P-2.0Винт струбцины
M14P-2.0 -
9332-62101-0 Pad clamp screwPad clamp screw
-
103BAQ77208-0 Swivel bracket (ptt)Swivel bracket (ptt)
-
11344-67177-0 МасленкаМасленка
-
123Z0-62476-1 Tilt StopperTilt Stopper
-
13369-62433-1 Grip Tilt StopperGrip Tilt Stopper
-
14353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
159401E3-1000 Washer
OR 940113-1000Washer
OR 940113-1000 -
16951403-3516 New partNew part
-
173R0-62473-0 Spring,Tilt StopperSpring,Tilt Stopper
-
183Z0-77115-0 Trim lock pinTrim lock pin
-
193P0-66233-0 New partNew part
-
203V5-62442-0 Nylon Nut(2T)M8 P1.25Nylon Nut(2T)M8 P1.25
-
213H6-60218-0 AnodeAnode
-
22910103-5616 BoltBolt
-
23398-62396-1 Ground Wire
L=130Ground Wire
L=130 -
24910103-5612 BoltBolt
-
25345-05122-1 Washer rachet
OR 345-05122-0Washer rachet
OR 345-05122-0 -
269101E3-0616 Bolt
OR 910113-0616Bolt
OR 910113-0616 -
910103-0616 BoltBolt
-
273BAQ77151-0 Power tilt assyPower tilt assy
-
3BAQ77151-1 Power tilt assyPower tilt assy
-
283R0-77071-1 Cylinder pin upper
OR 3R0-77071-0Cylinder pin upper
OR 3R0-77071-0 -
3KY-77071-0 Cylinder pin upperCylinder pin upper
-
293Z0-77076-0 Bushing 13-16-31Bushing 13-16-31
-
303R0-77076-0 BushingBushing
-
319101E3-0612 Bolt
OR 910113-0612Bolt
OR 910113-0612 -
910103-0612 BoltBolt
-
32345-05122-1 Washer rachet
OR 345-05122-0Washer rachet
OR 345-05122-0 -
333Z0-77101-0 Cylinder pin (lower)Cylinder pin (lower)
-
3Z0-77101-1 Cylinder pin (lower)Cylinder pin (lower)
-
34307-62116-1 WasherWasher
-
359101E3-0820 Bolt
OR 910113-0820Bolt
OR 910113-0820 -
910103-0820 BoltBolt
-
363Z0-84398-0 Band lead wire 203-local purchaseBand lead wire 203-local purchase
-
379101E3-0885 Bolt
OR 910113-0885Bolt
OR 910113-0885 -
9161E3-0885 BoltBolt
-
389401E3-0800 Washer
OR 940113-0800Washer
OR 940113-0800 -
940103-0800 WasherWasher
-
399301E3-0800 Nut
OR 930113-0800Nut
OR 930113-0800 -
930103-0800 NutNut
