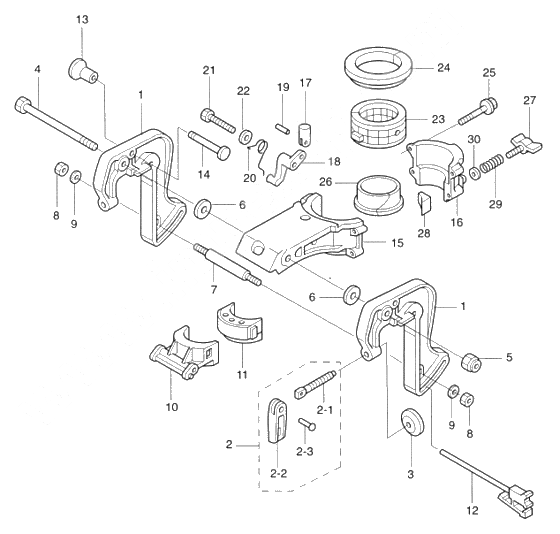

Clamp bracket swivel bracket для Tohatsu MFS2A - 2006 года выпуска`
-
№АртикулНазвание
-
13ABQ62111-0 Clamp bracket (see note)Clamp bracket (see note)
-
3ABQ62111-2 Clamp bracket (see note)Clamp bracket (see note)
-
23AB-62100-0 Clamp screw kit f2b/2.5b/3.5b-f4/5/6cClamp screw kit f2b/2.5b/3.5b-f4/5/6c
-
3GTQ62105-1 Clamp screw kit f2b/2.5b/3.5b-f4/5/6cClamp screw kit f2b/2.5b/3.5b-f4/5/6c
-
2-1369-62103-0 Винт струбциныВинт струбцины
-
2-23AB-62102-0 Clamp screw handle (amb)Clamp screw handle (amb)
-
3ABQ62102-0 Clamp screw handle (amb)Clamp screw handle (amb)
-
2-33C8-62104-1 Rivet3-22Rivet3-22
-
3332-62101-0 Pad clamp screwPad clamp screw
-
4309-62115-2 Bolt 8-122Bolt 8-122
-
5930446-0800 Nylon Nut
OR 930403-0800Nylon Nut
OR 930403-0800 -
6307-62116-1 WasherWasher
-
7309-62118-0 Distance piece bracketDistance piece bracket
-
8930113-0600 NutNut
-
9940113-0600 WasherWasher
-
103AB-62212-0 Thrust supporterThrust supporter
-
113AB-61336-0 Damper (lower)Damper (lower)
-
3AB-61336-1 Damper (lower)Damper (lower)
-
123F0-62160-0 Thrust Rod Ass'yThrust Rod Ass'y
-
13309-62463-0 Knob Tilt StopperKnob Tilt Stopper
-
14309-62464-0 Tilt StopperTilt Stopper
-
153ABQ62391-0 Swivel bracket inainSwivel bracket inain
-
3ABQ62391-1 Swivel bracket inainSwivel bracket inain
-
163ABQ62392-0 Swivel bracketSwivel bracket
-
3ABQ62392-1 Swivel bracketSwivel bracket
-
173AB-66334-0 StopperStopper
-
183AB-63068-0 LeverLever
-
19951403-0212 Spring WasherSpring Washer
-
203AB-66336-0 SpringSpring
-
21916113-0650 BoltBolt
-
22940113-0600 WasherWasher
-
23393-62416-0 Bushing Upper, SteeringBushing Upper, Steering
-
243H6-62325-0 Thrust BushingThrust Bushing
-
253V1-60001-0 Bolt 6-35 precoatedBolt 6-35 precoated
-
3V2-60001-0 Bolt 6-35 precoatedBolt 6-35 precoated
-
26309-62321-1 Pivot bushingPivot bushing
-
27309Q62442-2 Steering adjust screwSteering adjust screw
-
28309-62441-2 Friction PieceFriction Piece
-
29309-62446-1 Spring Steering FrictionSpring Steering Friction
-
30940113-0600 WasherWasher
